Universal Radiographic System
Service Manual
SM-0524R4
8
7. Install the X-ray Tube in the Upper Support of the Column using the
Collimator Adaptation Ring and its four Safety Screws (Allen).
8. Before installing the Collimator, unscrew equally the four Centering
Adjustment and Safety Screws (Allen) to allow the Collimator installation
in the Collimator Adaptation Ring. Adjust the Collimator Blades to their
widest setting and carefully install the Collimator centering it with the
X-ray T ube window.
T ighten carefully the four Centering Adjustment and Safety Screws
(Allen) equally (same number of turns) until Collimator is centered and
held firmly on the Coupling Ring (support). (Also, refer to Collimator
Manual).
9. Remove the X-ray T ube and Collimator covers and connect the wires
from the upper harness to the X-ray Tube and Collimator accordingly to
their identification (refer to Interconnections Map IM--041 for Manual
Version or A6541- 03-S of Motorized Version).

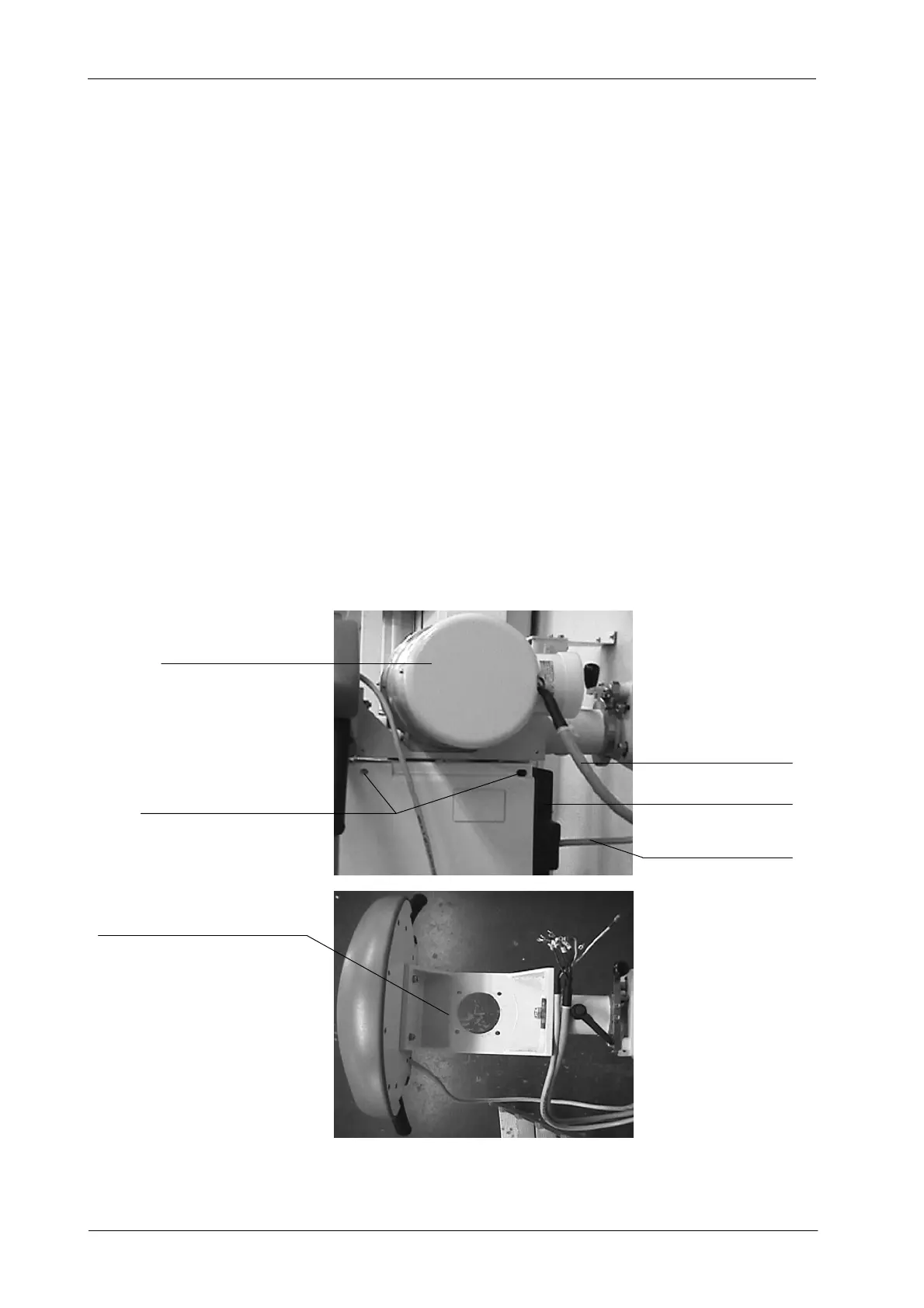

Illustration 3-4
Installation of X-ray Tube and Collimator
X-RAY TUBE CABLE
X-RAY TUBE COVER
COLLIMATOR COVER
COLLIMATOR CABLE
SUPPORT OF TUBE-COLLIMATOR ASSEMBLY
CENTERING AND SAFETY SCREWS
