10. Remove the Bucky Lock-Lever. Install the Bucky Assembly inserting it
into the lower axis of the Swivel Arm.
11. Re-install the Bucky Lock-Lever keeping the indicator plate between
both nylon washers, and the metallic washers close to the lever .

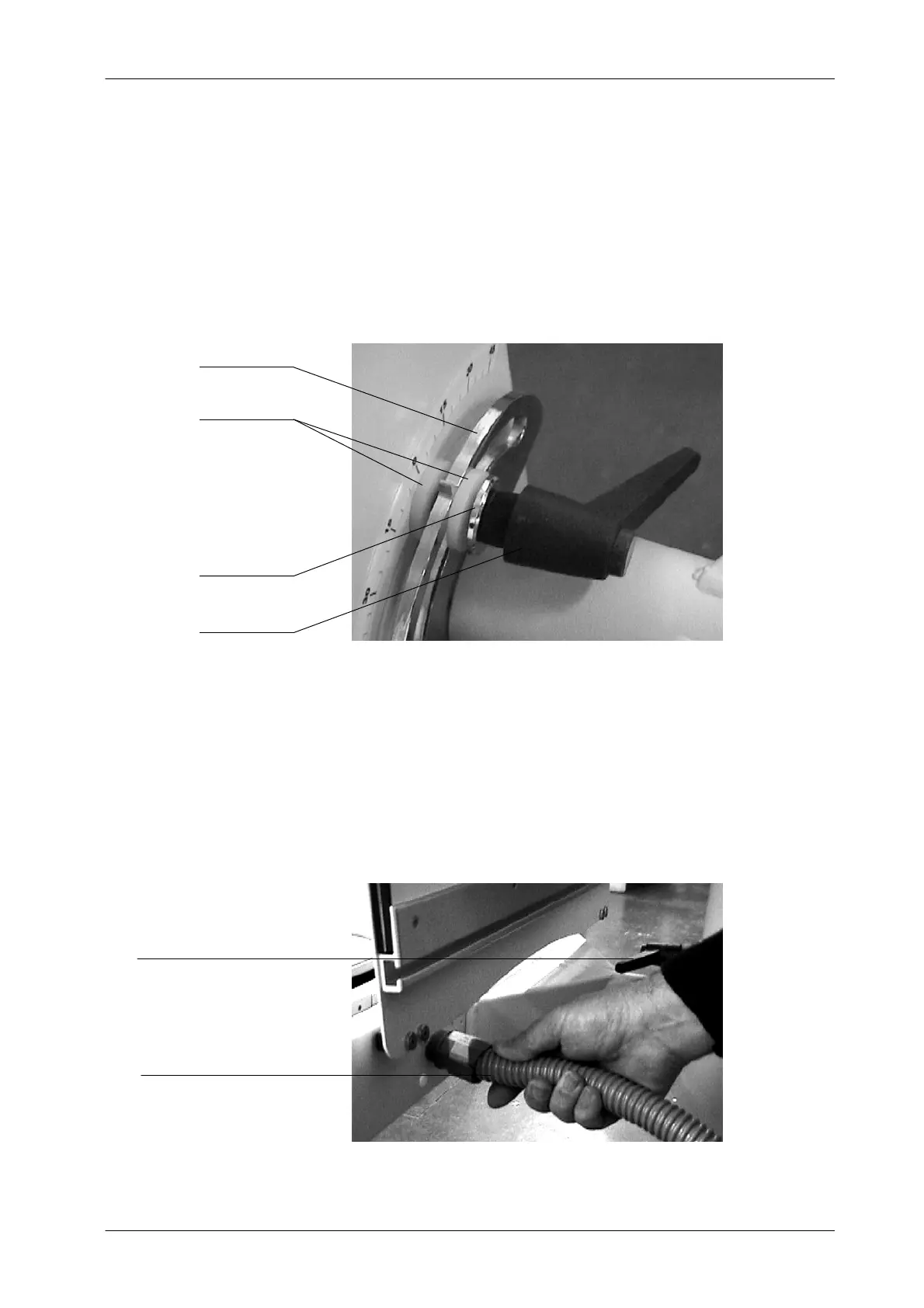

Illustration 3-5
Bucky Lock-Lever
BUCKY LOCK-LEVER
NYLON WASHERS
METALIC WASHER
INDICATOR PLATE
12. Open the Bucky cover removing its two frontal screws. Release the
plastic lock nut from the Bucky harness of the Swivel Arm (small
harness). Route cables through their entrance into Bucky Assembly and
put back the lock nut into its hole to fasten the harness to the Assembly.
Connect cables inside the Bucky Assembly (Refer to Illustration 3-6).
Illustration 3-6
Bucky Connections
BUCKY LOCK-LEVER
BUCKY CONNECTIONS HARNESS
