Universal Radiographic System
Service Manual
SM-0524R4
11
e. Cables to be connected directly in the Generator Cabinet must be
routed through the lower cables entrance of the Control Unit.
f. Verify that the transformer and the fuses of the Control Unit Box
are in accordance to the power line. (Refer to Maps I/M-041 and
A6408- xx).
g. Route the Power cable (A3153--01) through the lower cables
entrance of the Control Unit Box. Connect one of its ends to
Terminals TS1 of the Control Unit and, in the other end, install a
suitable connector to the wall plug. (Refer to Schematics I/M-041
and A6408-xx).
15. For the Motorized version:
a. Install the lower cover of the Control Unit Box. Identify and
separate the cables to be connected in the Control Unit and the
cables to be connected to the Generator Cabinet.

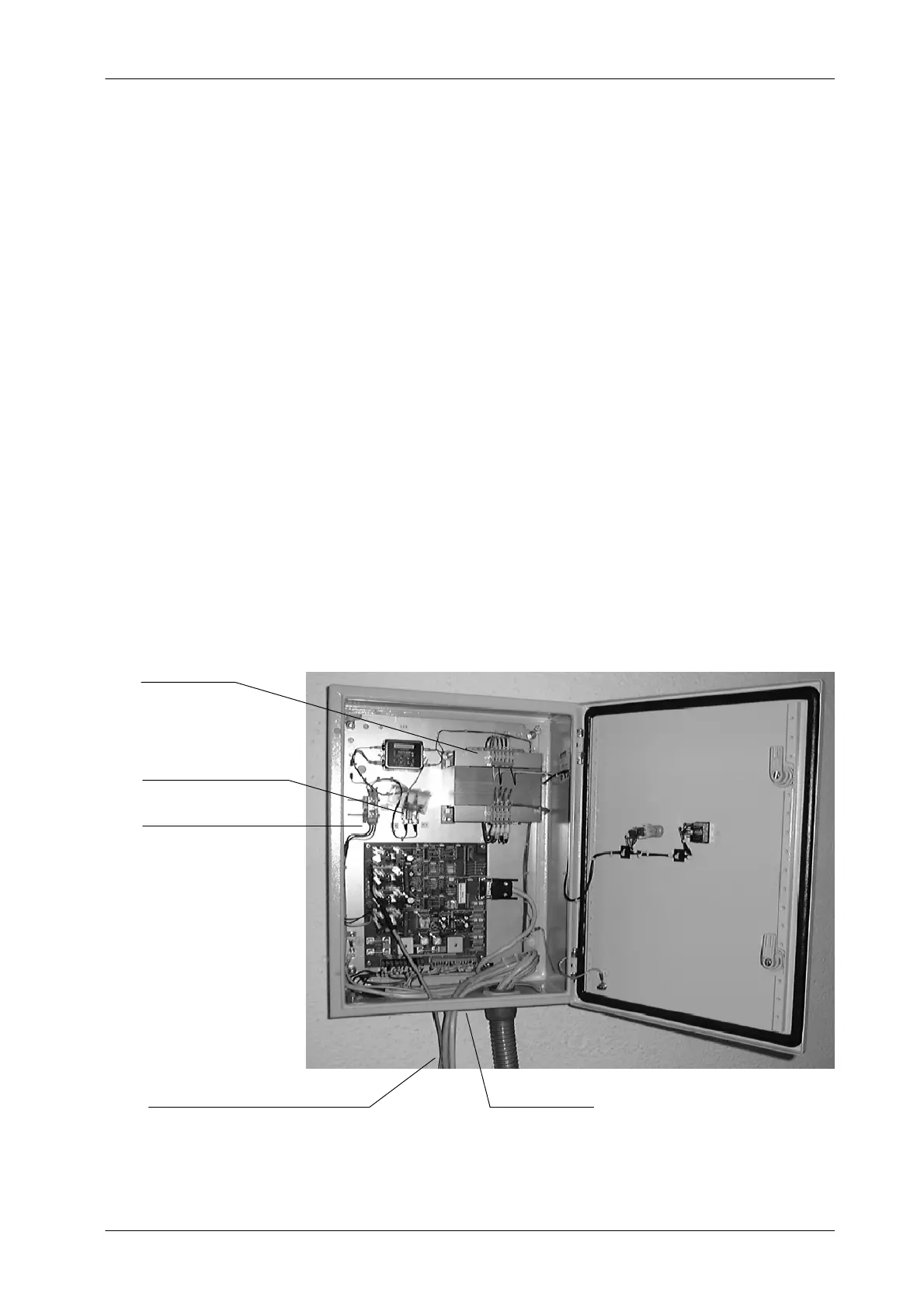

Illustration 3 -8
Control Unit Connections for Motorized Version
TRANSFORMER
CABLES FOR GENERATOR CONNECTIONS LOWER COVER
POWER LINE CONNECTIONS
LINE FUSES
