Putting the conference system into operation
70 | ADN Digital Conference System

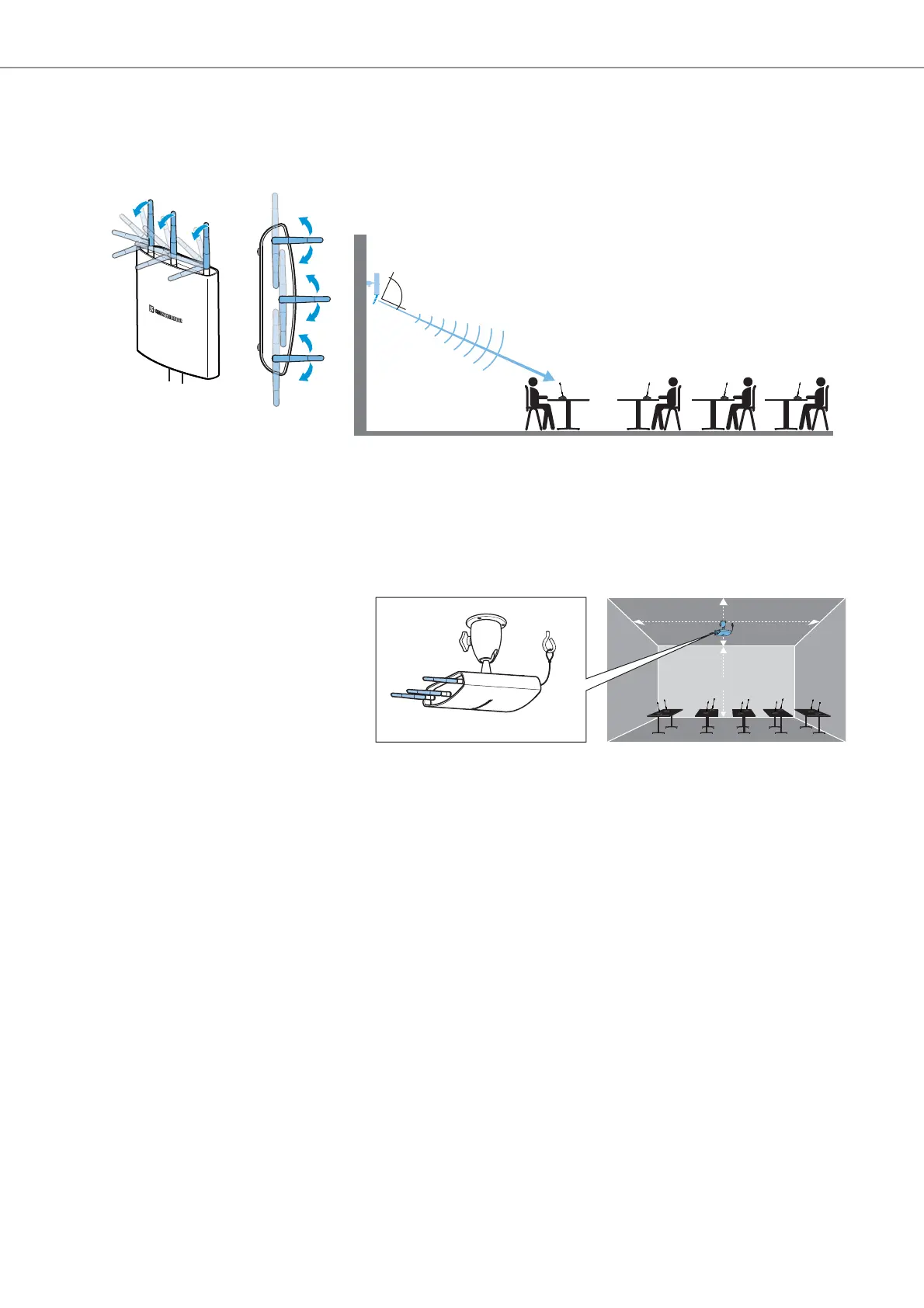

왘 Set up the devices so that there is a “free line of sight” between the wireless
conference units and the antenna module.
왘 Place the antenna module as centrally as possible
and above the wireless con-
ference units.
왘 Orient the 3 antennas of the antenna module so that they are parallel to each
ot
her and are directed at a 90° angle towards the wireless conference units.
Ceiling mounting is recommended for rooms with a ceiling height of up to approx.
10
m:
왘 Mount the an
tenna module to the center of
the ceil
ing. To do so, use the
optional GZG1029 swivel joint and GZP 10 mounting plate (see “Mounting the
antenna module to the ceiling” on page 72).
왘 Orient the antennas horizontally and at a 90° angle with respect to the wireless
conference units.
