The Sensaphone 400 includes a relay output that can be used to control
a light, siren, or other device. The output is a Form-C Normally Open/
Normally Closed mechanical relay and is rated for up to 30VAC/VDC 1A.

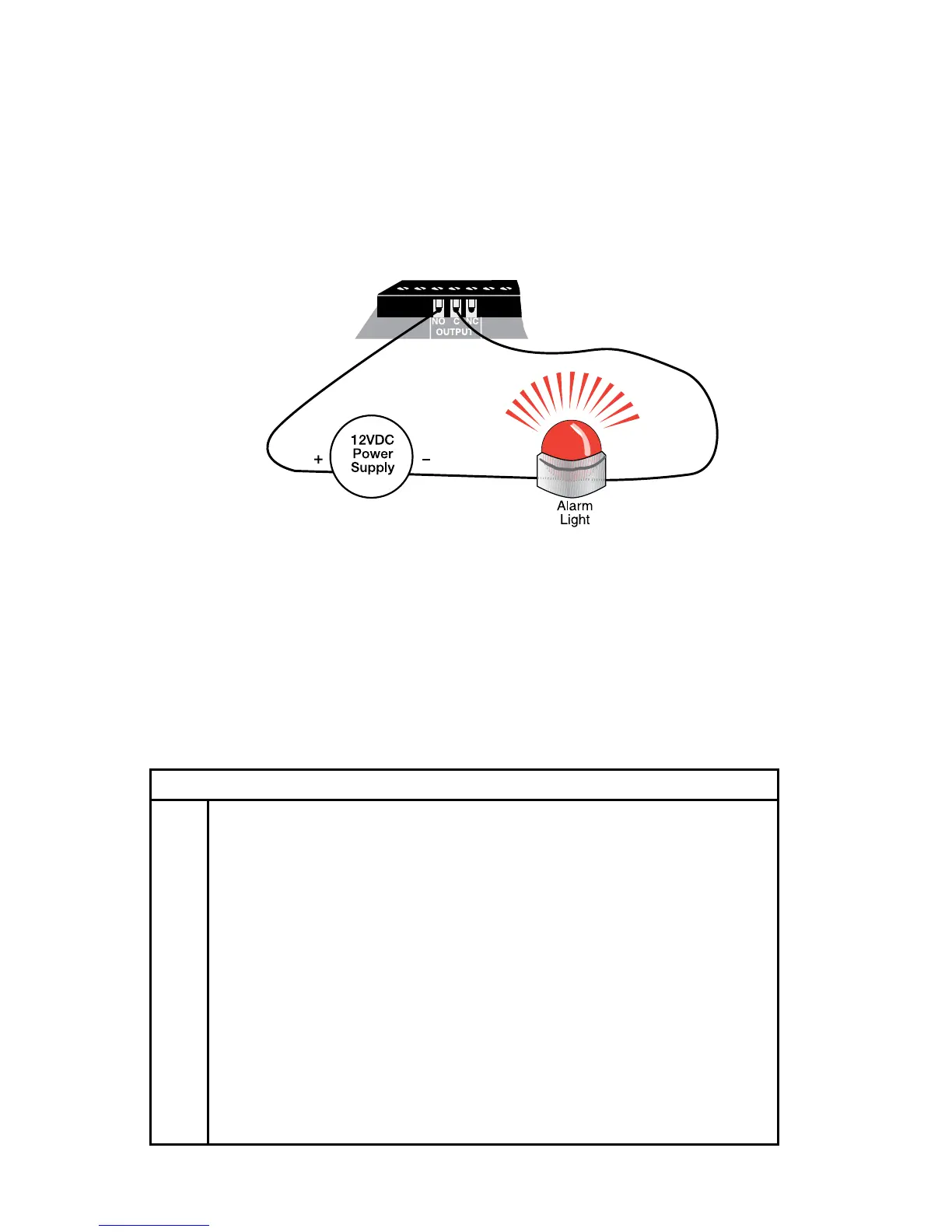

A sample wiring diagram is shown below:
Figure 1: Relay output connected to alarm
The output can be programmed to operate in one of 9 automatic modes or
it can operate in manual mode (default). The 9 automatic modes allow the
output to automatically turn on and off based on individual alarms or any
alarm. In manual mode the output is controlled via keypad command or
remotely via touch-tone phone. A description of each mode is described
below.
8.1 output modeS
Mode Description
1
2
3
4
9
0
Output on when zone 1 goes into alarm. Off when alarm is
acknowledged.
Output on when zone 2 goes into alarm. Off when alarm is
acknowledged
Output on when zone 3 goes into alarm. Off when alarm is
acknowledged.
Output on when zone 4 goes into alarm. Off when alarm is
acknowledged.
Output on when a Sound alarm occurs. Off when alarm is
acknowledged.
Output on when a Power alarm occurs. Off when alarm is
acknowledged.
