Sensaphone Sentinel Pro Installation And Setup Guide

10
Sentinel Pro Installation and Setup Guide
abouT ThIs Manual
This manual comprises the instructions necessary to install and setup the Sentinel Pro. You should thor-
oughly read this manual to establish a basic understanding of the system and keep it as a reference.
InsTallaTIon and ConfIGuraTIon
PHYSICAL DESCRIPTION
The Sentinel Pro is housed in a 6.8” x 6.3” x 1.5” enclosure, which can be easily mounted on a wall or
back panel.
LAYOUT
The Sentinel Pro has connections for twelve sensor inputs, two relay outputs, an Ethernet port, and
12VDC power. See figure below:

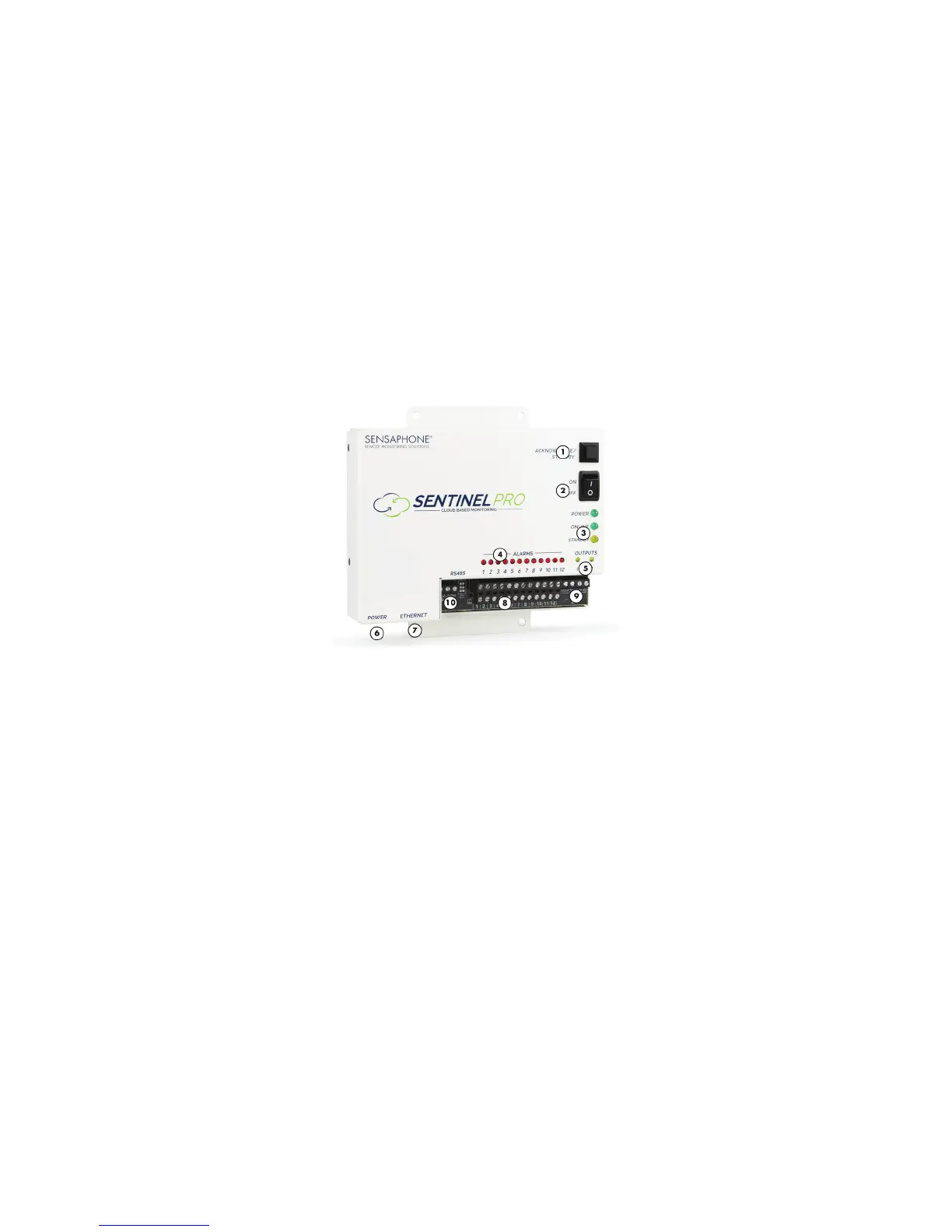

Figure 1: Front Panel Layout of the Sentinel Pro
1) Acknowledge/Standby Button 6) Power Jack
2) On/Off Switch 7) Ethernet Jack
3) Power, Online, Standby LEDs 8) Sensor Input Terminal Strip
4) Alarm LEDs
5) Relay Output LEDs (yellow)
9) Relay Outputs
10) Modbus RS485 Terminal Strip
RJ-45 10/100BASE-T ETHERNET PORT
This jack is for connecting to your network so that the device can communicate with the Sentinel Pro
servers. Two LEDs indicate when the Sentinel Pro has a valid link (green) and transmitted/received data
(yellow).
SENSOR INPUTS
The sensor inputs labeled zones 1-12 are designed to interface with normally open/normally closed
devices, 2.8K or 10K temperature sensors and 4-20mA transducers.
POWER ON LED (GREEN)
This light indicates that the Sentinel Pro unit is powered and operational.
ALARM LEDS (RED)
The Alarm LEDs indicate if an alarm exists.

Sensaphone Sentinel Pro Specifications

Power

power input voltage	11.5 - 20 VDC
power input current	350mA nominal/650mA peak
battery backup	12V 3.4 AH

Operating Environment

operating temperature	0° to 135°F (-18 to 57°C)

Weight and Dimensions

enclosure dimensions	14” x 12” x 7.4”
weight	12 Lbs.
