Section 6 SMT-200 Technical
SMT-200 Operations and Technical Manual 2.00/R1
73
6.1 SMT-200 Description
The SMT-200 consists of two main parts. The heart of the unit is the PC/104 single board computer.
This board features a CMOS 8088 - compatible CPU operating at 9.8 MHz. This achieves a good
balance between performance and excessive power consumption / heat generation inherent in faster
processors. The other part is the SMT-200 main board. This has all the additional circuitry required to
generate test signals and transfer digitised data to the PC/104.
6.2 PC/104 Description
The PC/104 runs the SMT-200 software from the onboard Solid State Disk (SSD). New code can be
downloaded to the SSD via a PC connected to the Docking Station. The PC/104 board is highly
integrated and repairs to the card are not advised. If the card is in doubt the entire SMT-200 should be
returned to the nearest I/O SENSOR service location for repair.
PC/104 Board Features
•
8088 Compatible CPU running at 9.8 MHz
•
1Mb DRAM
•
3 DMA channels - 8237 equivalent
•
8 Interrupt channels - 8259 equivalent
•
3 programmable counters/timers - 8254
equivalent
•
PC - compatible keyboard port
•
8 bit PC/104 expansion bus
•
Speaker Port
•
Award ROM-BIOS with Ampro
embedded-PC extensions
•
Real time clock
•
Parallel port - bi-directional data lines
•
Serial port - onboard generation of ± 9V
•
32 pin byte wide memory DIP socket
•
1K bit configuration EEPROM
•
Watchdog timer
Mechanical and Environmental
•
Size 90 x 96 x 15 mm
•
Power Active +5v @ 115 mA
•
Power Sleep +5V @ 55 mA
•
Operating Temperature -40°C to +85°C
•
Storage Temperature -55°C to +85°C
•
Relative Humidity 5% to 95%
•
Weight 67 gm

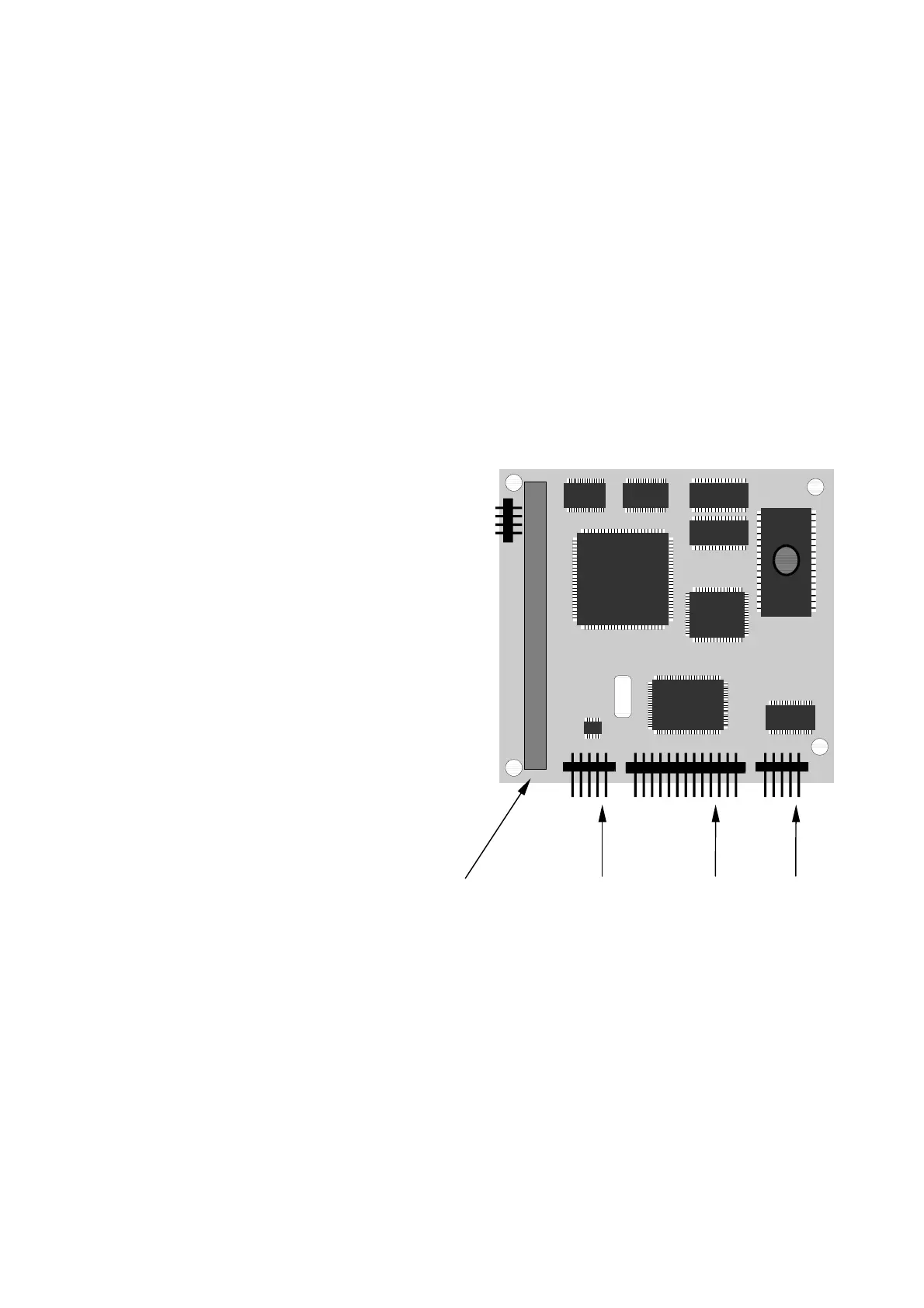

Serial Port
Parallel Port
Utility / Keyboard PC Expansion Bus
P1
J4
J3
J2
