Sensus iPerl Technical Manual

3-4 Programming
WRMTM-40001 iPERL Water Management System Technical Manual
3.3 Setting Default Parameters in Unipro
The Unipro application allows you to set default parameters that you will use during system programming. It
may be beneficial to define these parameters ahead of time in order to save time during programming.
To set default parameter in the Unipro application:
1. From the Main screen, click the Defaults menu option.
The Defaults screen appears, as shown in 1..
2. Choose the iPERL option from the list.
3. Click the OK button.

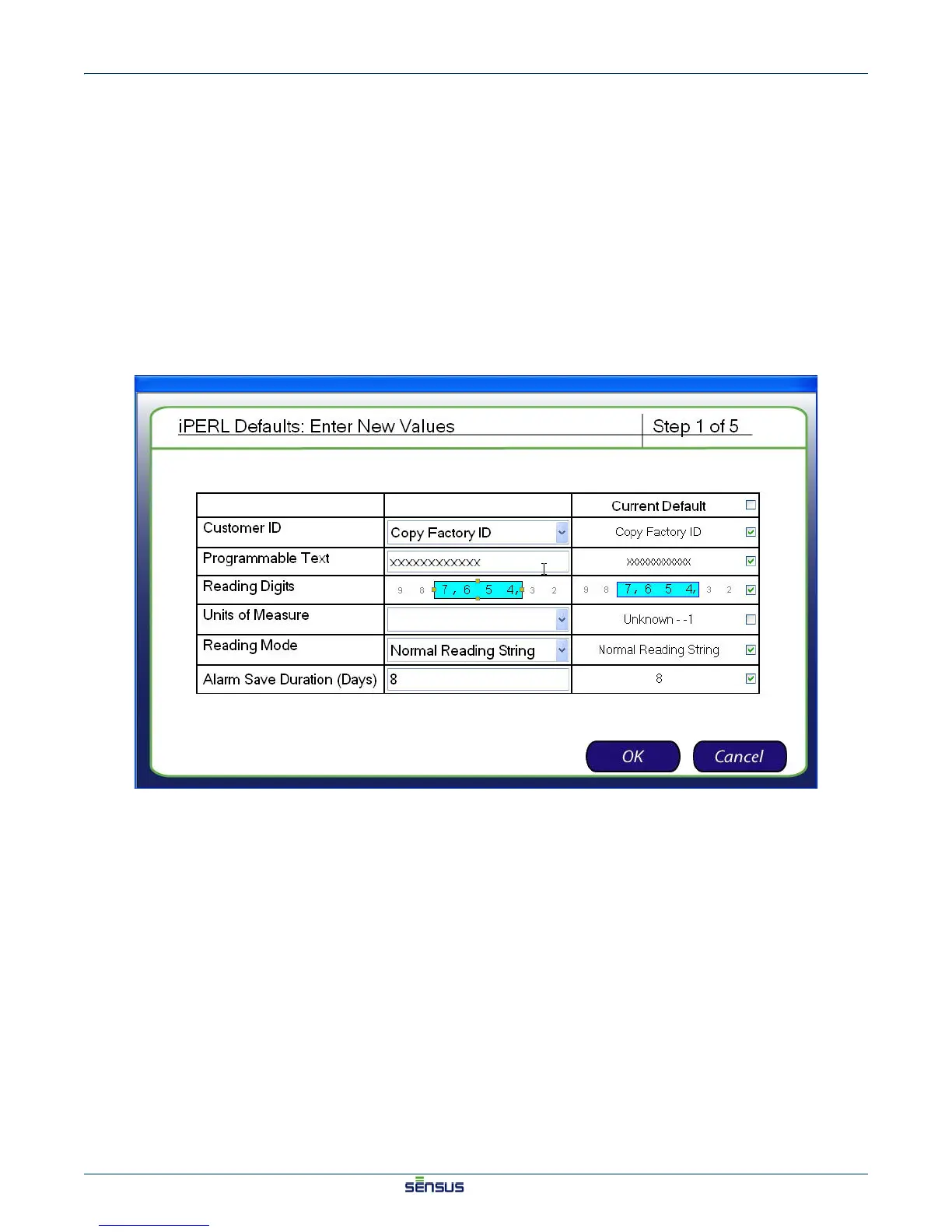

The Enter New Values (Step 1) screen appears, as shown in Figure 3-3.
Figure 3-3: Enter New Values (Step 1) Screen
4. For each system parameter, designate a new default parameter, or check the checkbox in the
Current Default column to use the current default setting.

Sensus iPerl Specifications

General

Type	Ultrasonic water meter
Measurement Technology	Ultrasonic
Protection Class	IP68
Material	Composite
Pressure Rating	232 psi (16 bar)
Communication	AMR/AMI Compatible
Battery Life	20 years
Maximum Pressure	16 bar
Output	Pulse
Power Supply	Battery
Temperature Range	Up to 158°F (70°C)
Operating Temperature	32°F to 158°F (0°C to 70°C)
