Reporting 4-2
iPERL Water Management System Technical Manual WRMTM-40001
4.2 Viewing Reports
To view an iPERL system report in the Unipro application:
1. From the Main screen, click the Reports menu option.
The Reports screen appears, as shown in Figure 4-1.

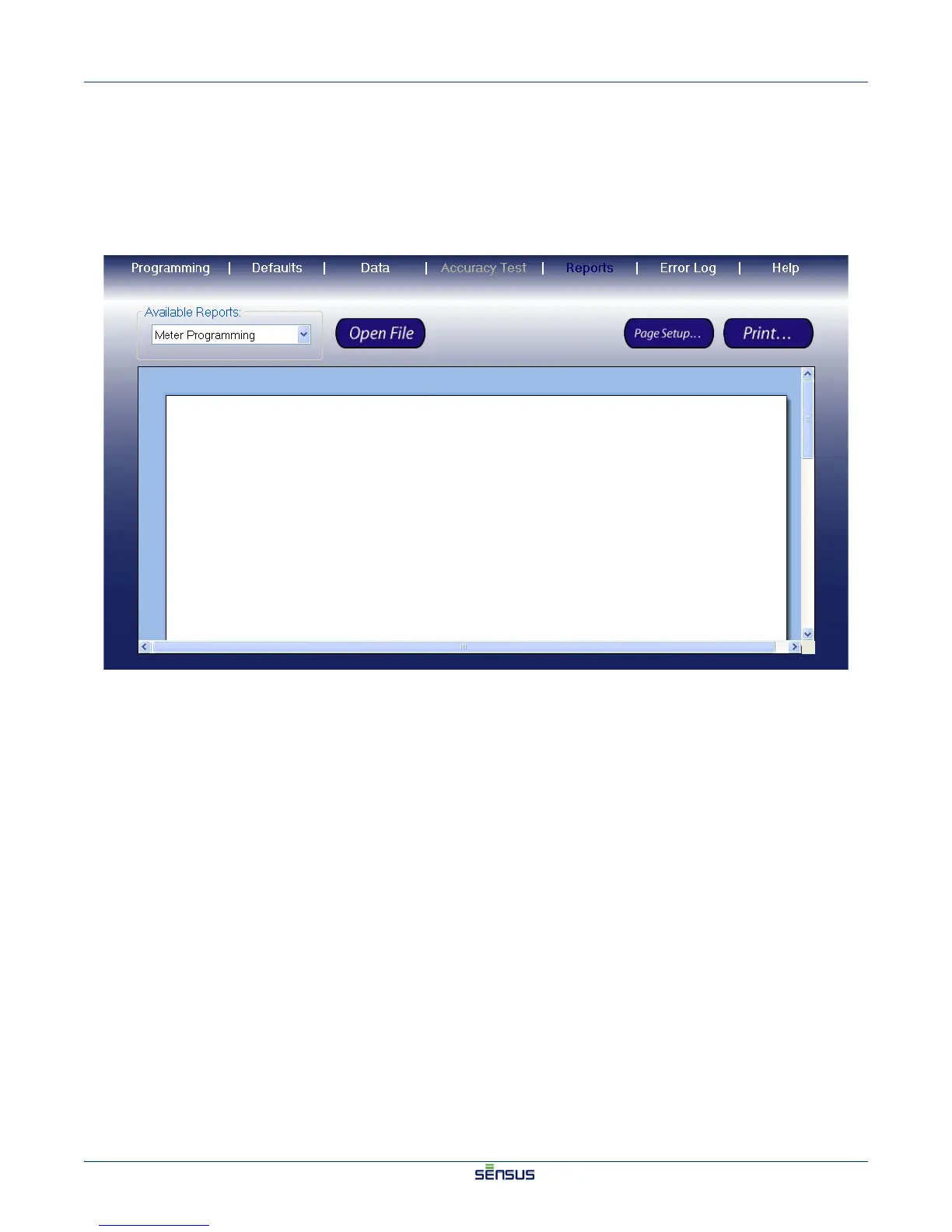

Figure 4-1: Reports Screen
2. Choose a report to view from the Available Reports dropdown box.
3. Click the Open File button.
A Dialog Box appears, listing the stored reports. The reports are listed by the programmable ID and
the date/time that the report was stored. For example, a data log listed as
06230138_2007112680834 opens a report for meter ID 06230138 stored on 11/26/2007 at 8:08:34
a.m.
4. Choose the appropriate report.
5. Click the Open button.
The report will appear in the Unipro application.
