Sensus iPerl Technical Manual

5-6 Logs
WRMTM-40001 iPERL Water Management System Technical Manual
5.6 Viewing Lifetime Data
The iPERL system collects data from its manufactured date. The data can be read from the meter and then
reviewed, but cannot be changed.
To view system lifetime data:
1. From the Main screen, click the Data menu option.
2. Click the Lifetime tab.
The Lifetime screen appears, as shown in Figure 5-5.

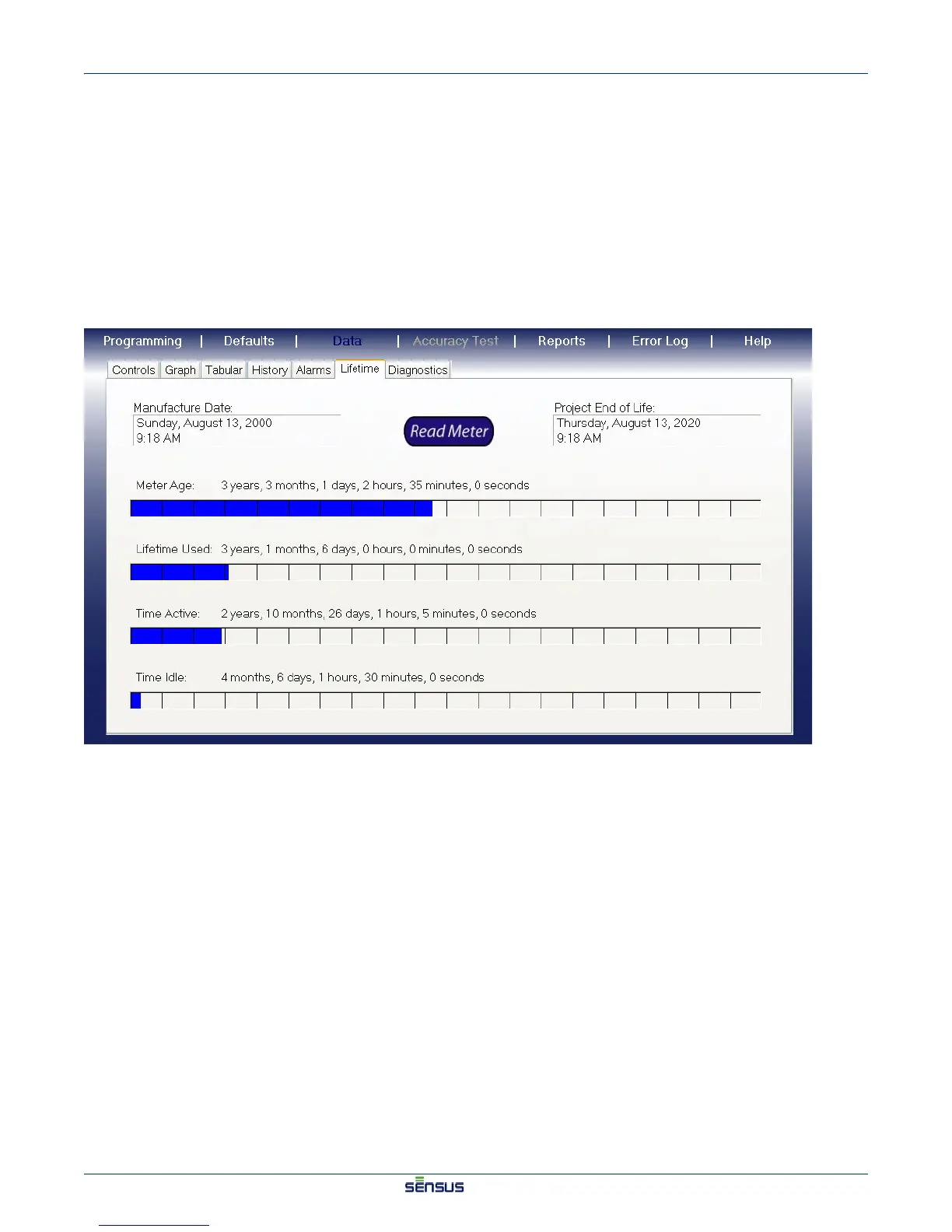

Figure 5-5: Lifetime Screen
3. Click the Read Meter button.
The manufacture date, projected end of life, meter age, lifetime used, time active, and time idle
information appears.

Sensus iPerl Specifications

General

Type	Ultrasonic water meter
Measurement Technology	Ultrasonic
Protection Class	IP68
Material	Composite
Pressure Rating	232 psi (16 bar)
Communication	AMR/AMI Compatible
Battery Life	20 years
Maximum Pressure	16 bar
Output	Pulse
Power Supply	Battery
Temperature Range	Up to 158°F (70°C)
Operating Temperature	32°F to 158°F (0°C to 70°C)
