Sensus iPerl Technical Manual

Logs 5-4
iPERL Water Management System Technical Manual WRMTM-40001
5.4 Viewing History Data
To view system history data:
1. From the Main screen, click the Data menu option.
2. Click the History tab.
The History screen appears, as shown in Figure 5-3.

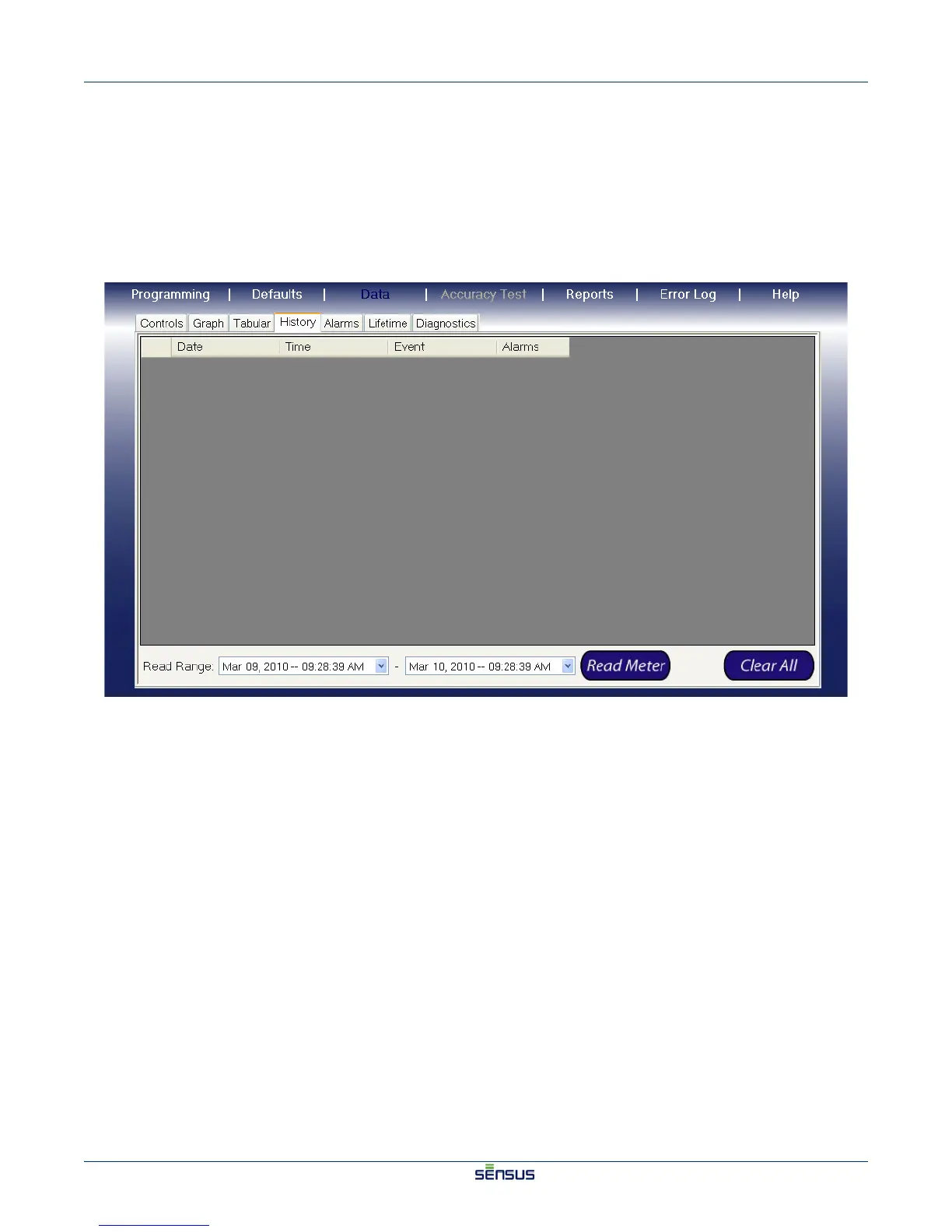

Figure 5-3: History Screen
3. Choose a start and end date from the Read Range dropdown boxes.
4. Click the Read Meter button.
The history data will appear.

Sensus iPerl Specifications

General

Type	Ultrasonic water meter
Measurement Technology	Ultrasonic
Protection Class	IP68
Material	Composite
Pressure Rating	232 psi (16 bar)
Communication	AMR/AMI Compatible
Battery Life	20 years
Maximum Pressure	16 bar
Output	Pulse
Power Supply	Battery
Temperature Range	Up to 158°F (70°C)
Operating Temperature	32°F to 158°F (0°C to 70°C)
