Sensus iPerl Technical Manual

3-12 Programming
WRMTM-40001 iPERL Water Management System Technical Manual
8. Click the OK button.
The Summary screen appears, as shown in Figure 3-11.

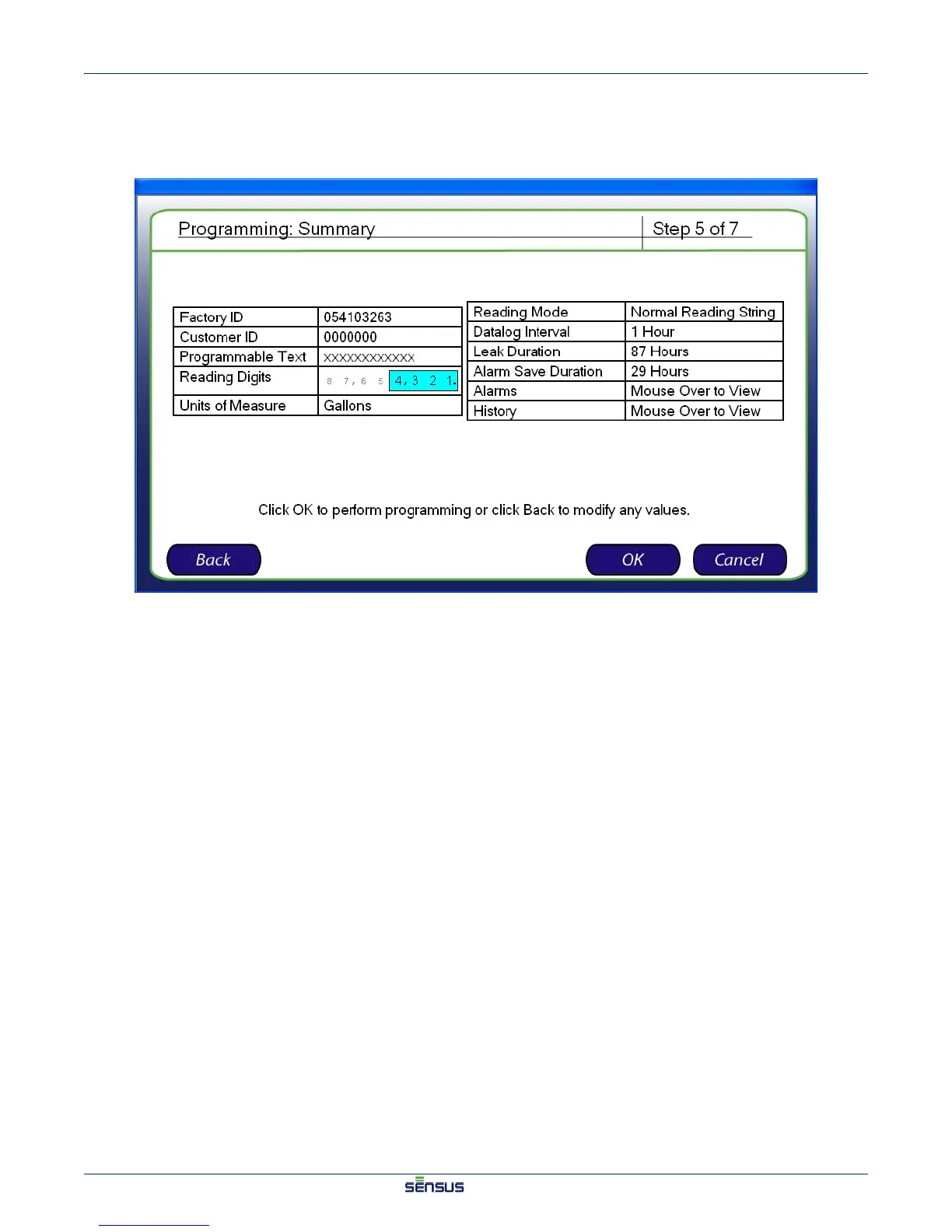

Figure 3-11: Summary Screen
9. Review the parameters listed in the table.
10. Click the OK button to continue and program the system, or click the Back button to make changes
to the selections.
The Finished screen appears, validating that the system has been programmed.
11. Click the OK button to finish programming the system.

Sensus iPerl Specifications

General

Type	Ultrasonic water meter
Measurement Technology	Ultrasonic
Protection Class	IP68
Material	Composite
Pressure Rating	232 psi (16 bar)
Communication	AMR/AMI Compatible
Battery Life	20 years
Maximum Pressure	16 bar
Output	Pulse
Power Supply	Battery
Temperature Range	Up to 158°F (70°C)
Operating Temperature	32°F to 158°F (0°C to 70°C)
