It is also possible to set the grid colour (foreground) and the diagram background colour
(background) by pressing the two choose.. keys.
3.4.5 Toolbar
The FTAnalyzer has different toolbars to quickly recall functions by means of icon keys. For the
correct use of FTAnalyzer, users are recommended to know the meaning of the different icons and

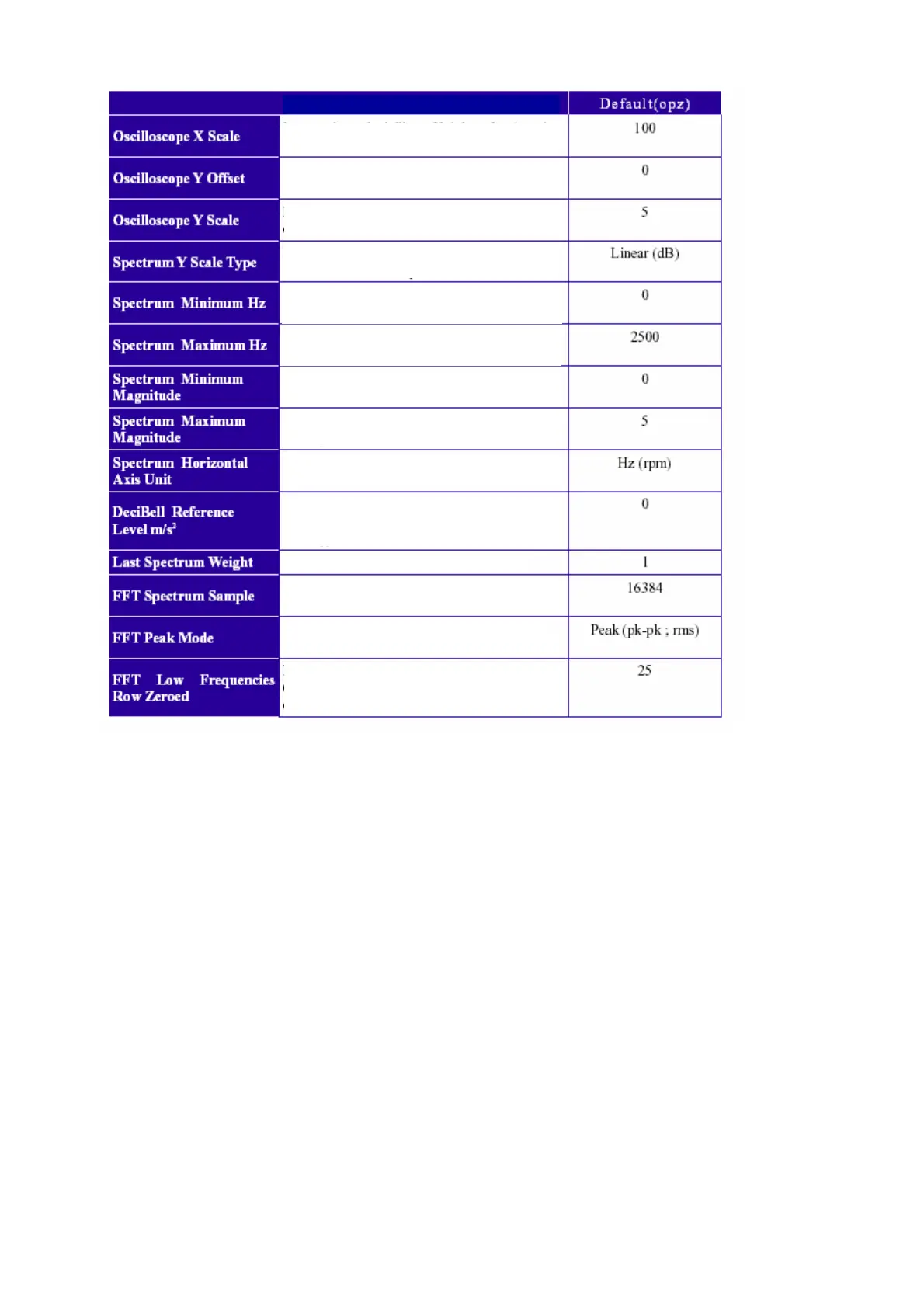

their functions. The table below provides a list of the different toolbars, icons and related functions.
To set diagram X axis scale in current units
To move displayed signals in Y direction of the
set quantity
To set diagram Y axis scale in current units
To set the type of diagram Y axis scale in the
To set the minimum value of the diagram X axis
scale in the frequency domain
To set the maximum value of the diagram X axis
scale in the frequency domain
To set the minimum value of the diagram Y axis
scale in the frequency domain
To set the maximum value of the diagram Y axis
scale in the frequency domain
Number of lines set to zero starting from 0 Hz.
This parameter is applied only to velocity or
displacement spectra
Display of analysed event parameter
X axis resolution in the frequency domain
Displayed spectrum weighted average
Reference value for calculation of decibels in
case of type dB scale display on Y axis
To set the unit of measurement of the diagram X
axis in the frequency domain
Concept expressed by the parameter
