A view will be displayed with two sections: the top one is called Models and the bottom one
Instances. The Models section shows the models available in the database, while the Instances
section shows the Model Instances concerning the selected model. Should the Models section not
show the class of the examined machine, make sure the database is correct (see previous point). The
view also displays three buttons with the following functions:
• Create Model Instance to create an instance of the loaded model;
• Back to cancel operation and return to the previous view;
• Test Selected Instance to carry out tests.
Select the model in the Models section and the created instance in the Instances section, then click
on Test Selected Instance and carry out diagnosis.
It is necessary to select the machine model (Model) and the instance (Model Instance) which must
be created as explained below.
5.3.1 Create model instance: instance creation
To create a new instance, click on Create Model Instance and fill in the displayed mask with at
least two information on the examined machine.

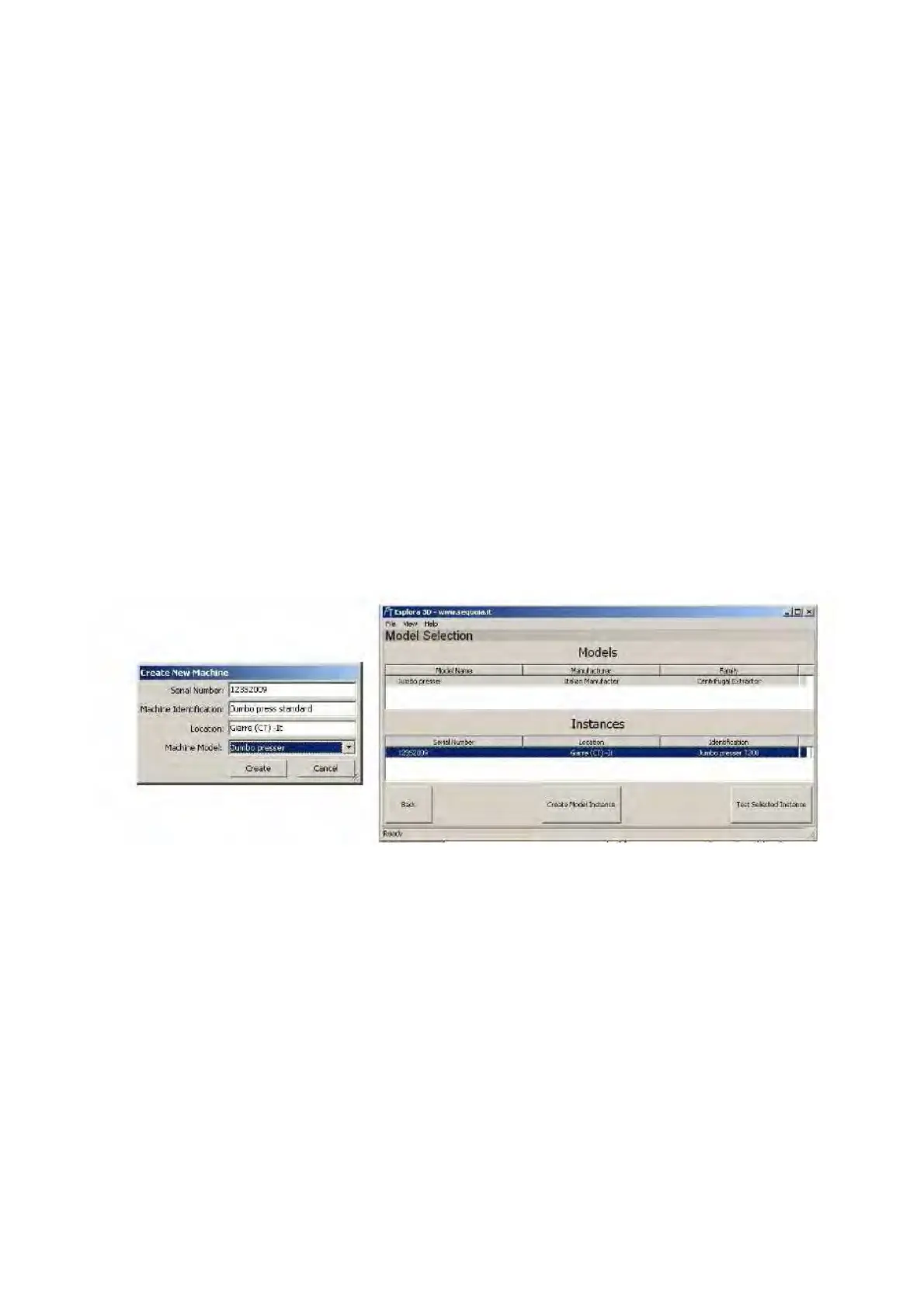

Esplora 3D: Model Instance creation
Indicate as many data as possible for future quick report identification.
