5.3.2 Test selected instance: diagnostics
To start testing, click on Test Selected Instance. A new view is displayed with the image of a
machine like the one being tested. Moreover, the concerned area of the machine is highlighted by a
red rectangle drawn on the image. Next and Prev keys can be used to display other images, if
loaded.

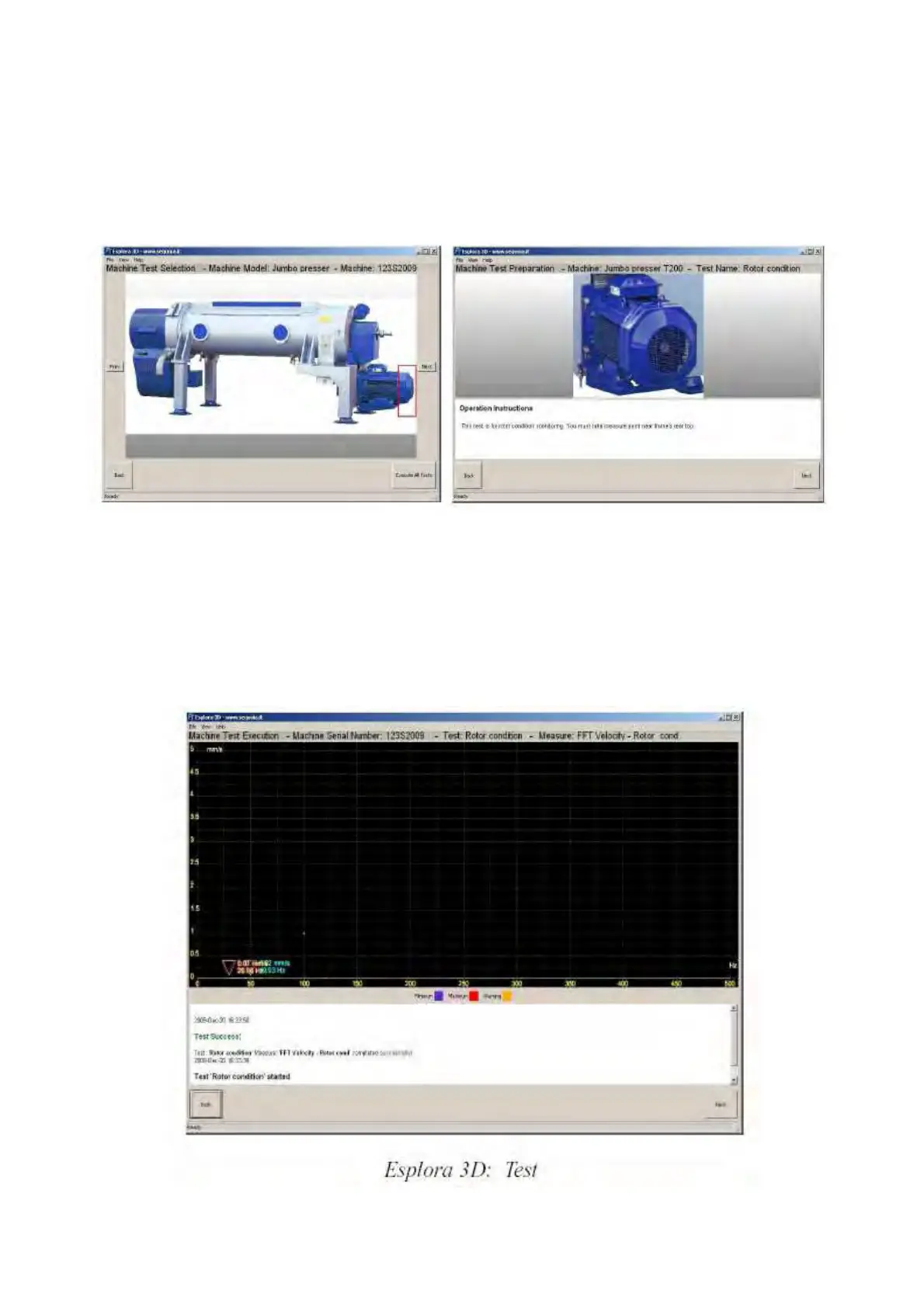

Esplora 3D: Operator instructions
After identifying the sensor positioning area, you can perform tests by clicking Execute All Tests.
Another view will be displayed with the operator instructions and an image providing further
information to the user. The view top part also shows the machine identification and the name of the
test being prepared. After clicking Next, the program will ask to find the acquisition device to be
used, if more devices are connected.
