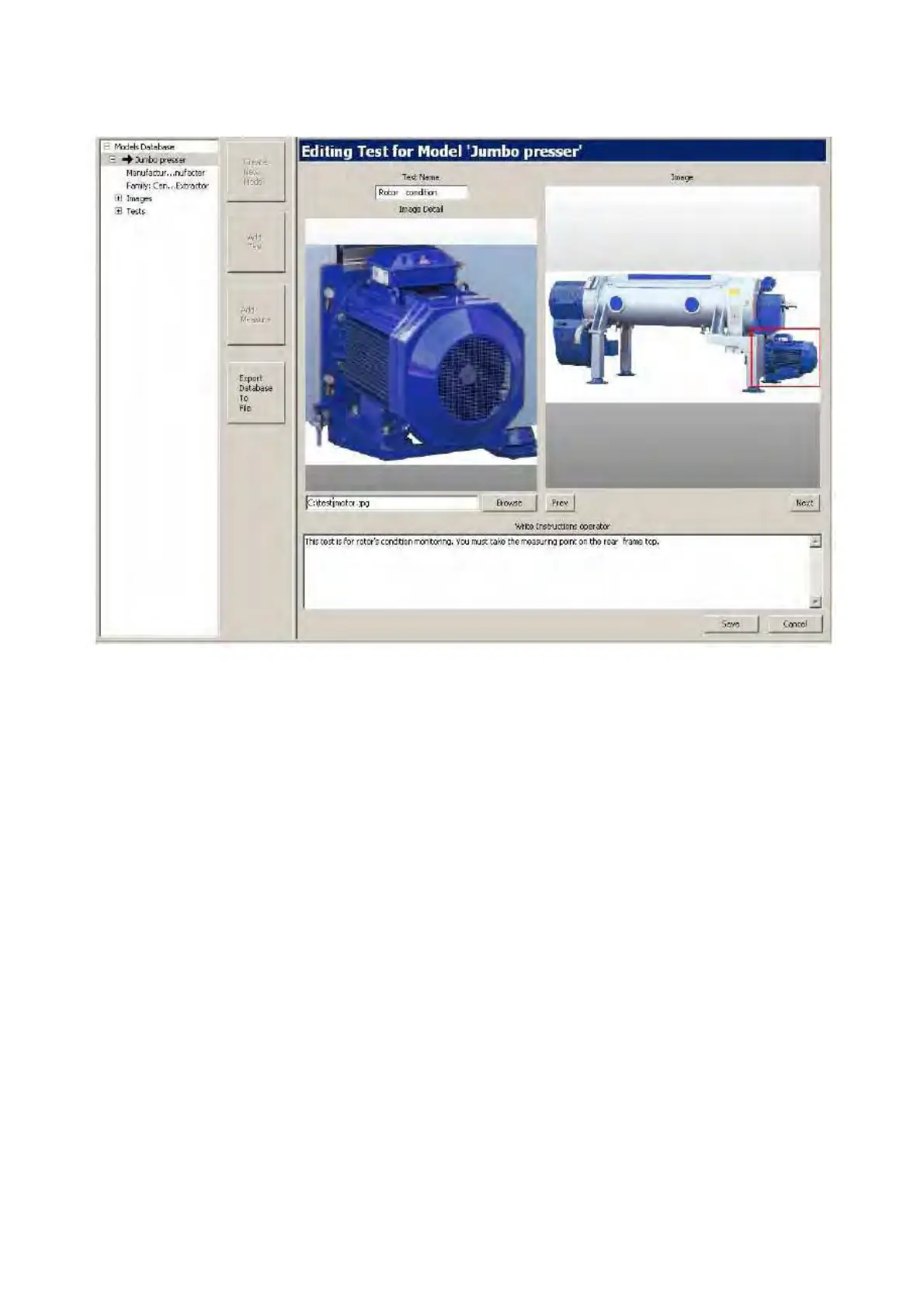

A mask will be displayed (as shown in the figure) called Editing Test Model ‘ArchiveName’.
FTEditor: creation of a new model – add images
On the mask right-hand side, under the Image label, one of the analysed machine images defined
during the model setting up will be displayed.
It is possible to draw a red rectangle on the figure to highlight the area under examination. To draw
the rectangle, click on the figure and drag the mouse until reaching the desired size. The rectangle
will help the operator find the area to be measured.
In the figure on the left, an additional image can be loaded (e.g. on the sensor positioning) to further
help the operator.
The text box shall give instructions to the operators taking measures, therefore it is recommended to
compile it accurately.
4.5 Add measure
After setting up the machine test, you must define the measures to be carried out on the machine. To
add a measure, click on Add Measure…
