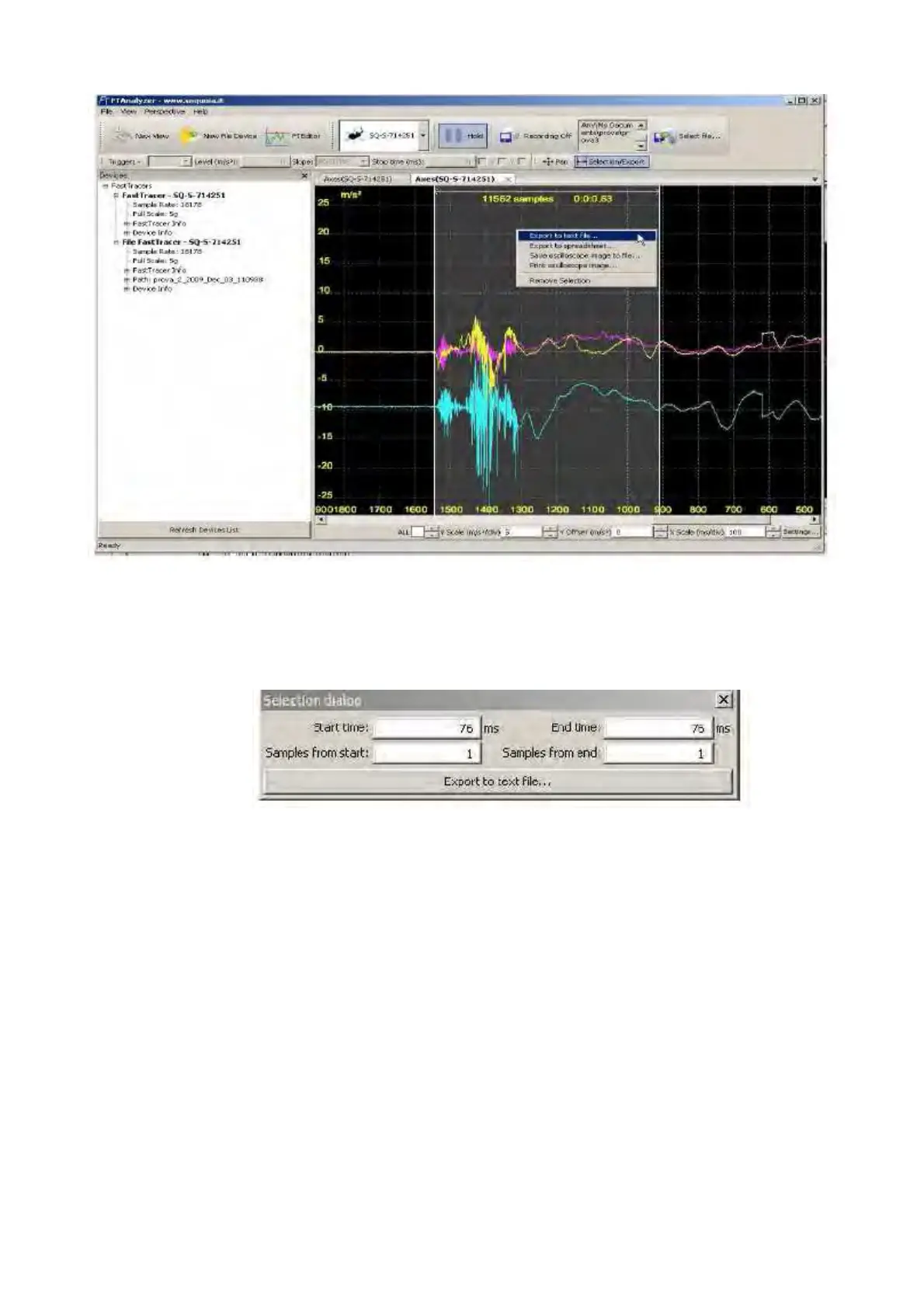

FTAnalyzer: data selection for export to text file
In case of time domain measurements, the FTAnalyzer will display the following view where you
can set up start time, end time and the respective associated samples.
FTAnalyzer: export parameters
After confirming, add the output file name. The whole selected part will be exported at a sampling
speed of 18113.21 samples/s for time domain. If the frequency spectrum of one or more events is
exported, the file points will correspond to the points used to display the selected part of the FFT
diagram.
The output file has a text structure, all data are organized in a column and separated by a comma.
The first two lines provide information on sensor and measure, the third line is usually empty, while
the fourth line provides the event label for each column.
