User Manual SERVOPRO Plasma Trace N
2
Analyzer
6.0 INSTALLATION
19
NO ANALYZER FRONT END SYSTEM

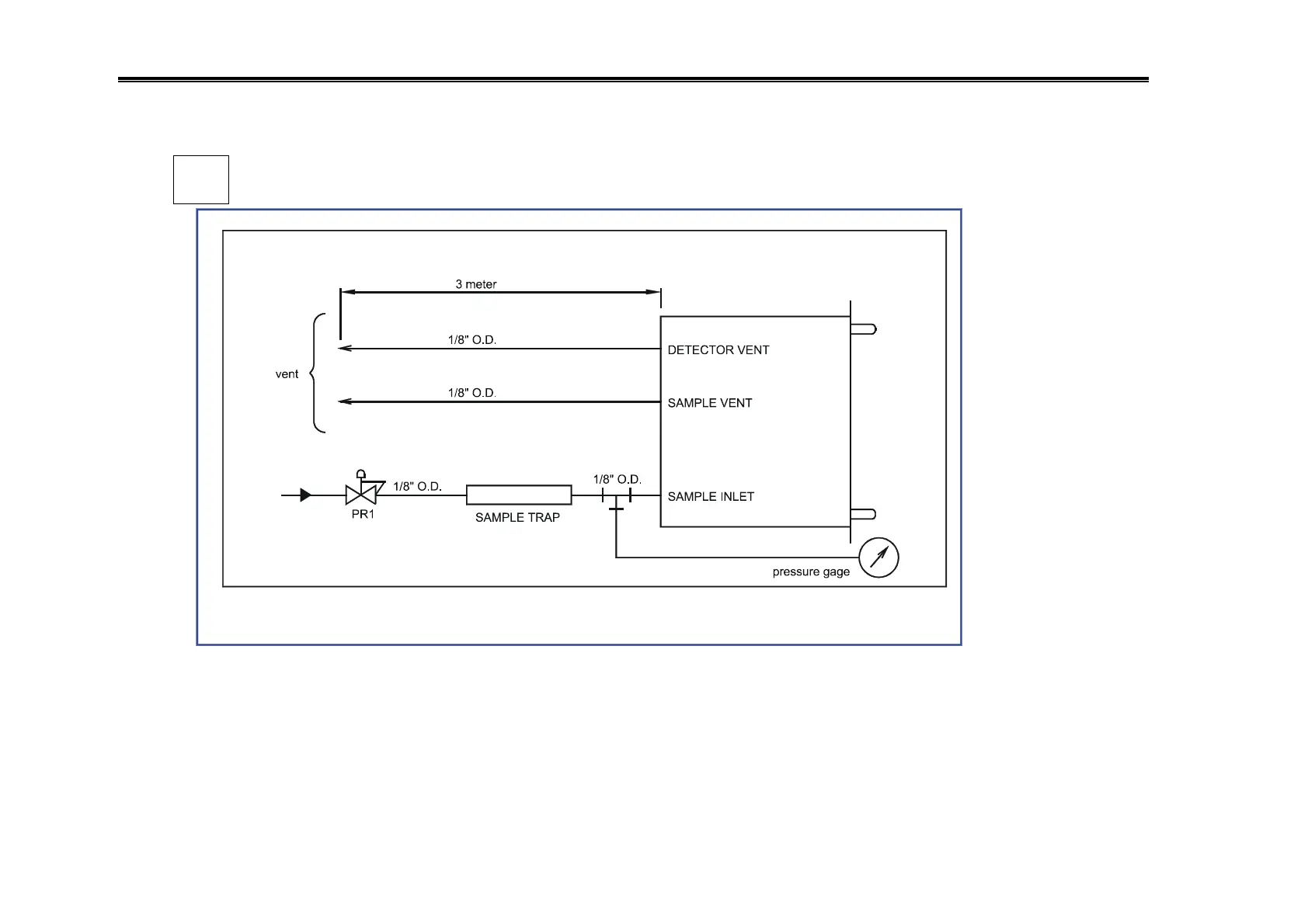

Some users wish to monitor the inlet pressure. Connecting a pressure gauge at the inlet will result in big
unswept volume. This will cause poor response time, drift and noise. DON’T DO THIS!
Problems caused: - long response time
- will eventually read below the scale because of error of calibration.
