7.0 OPERATION
39
FIGURE 21: TIME AND DATE SETTING
If you enter a bad value, the analyzer clears the field and you are asked to enter a new one.
7.6.4 System Gain
This value is used to adjust the last stage of amplification. If for any reason the same amount of
impurities gives fewer signals, you may adjust this valve to set the amplification. You may see it
as a span potentiometer.
N.B.: You must recalibrate the analyzer each time you change the system gain.
The smallest gain is 2 and the highest is 1000
Minimum: 2
Maximum: 1000
Resolution: 0.01

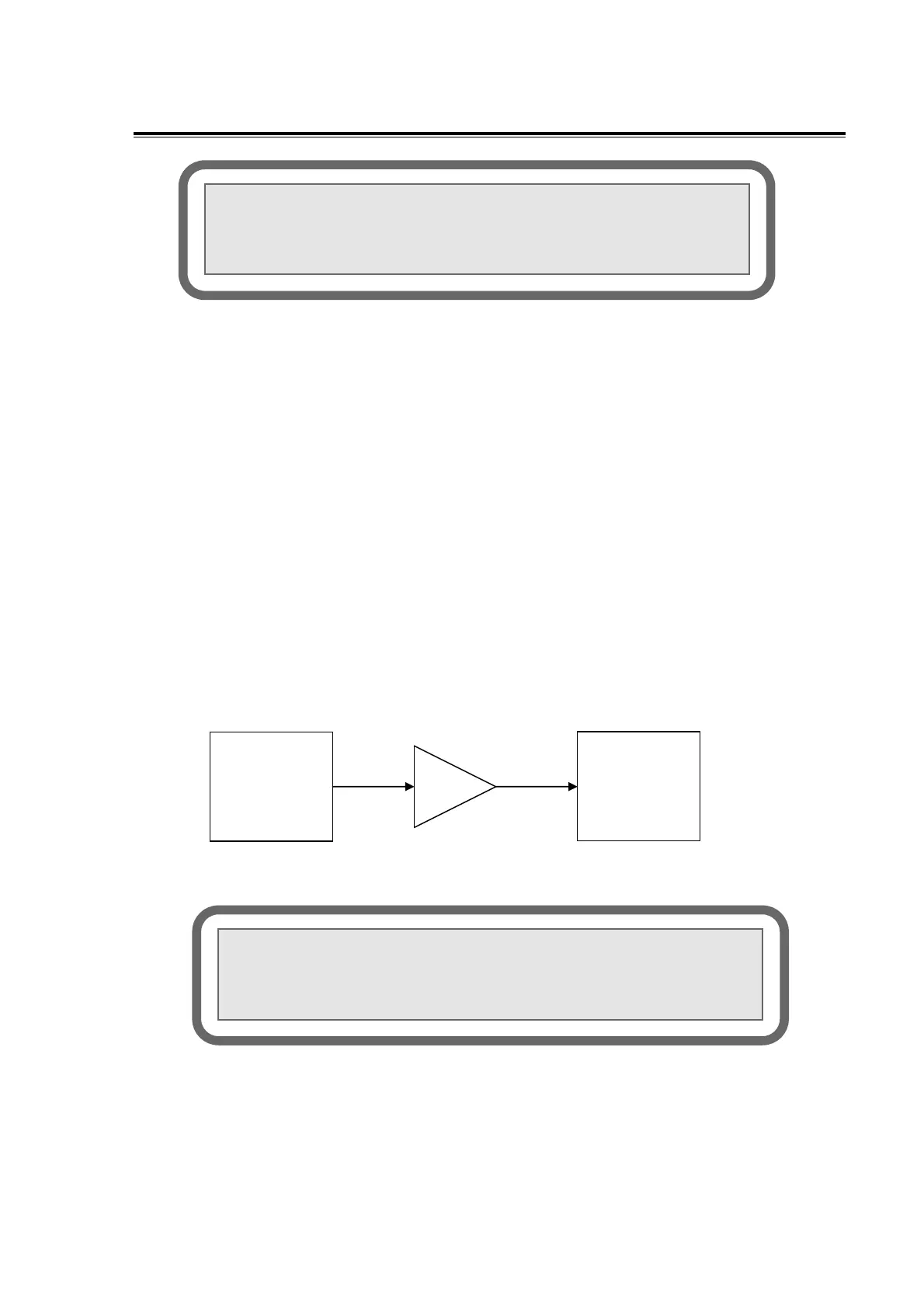

FIGURE 22: SYSTEM GAIN
Detector
G
Analog to
Digital
converter
System gain
<<<TIME AND DATE SETTING>>>
Time HH:MM:SS Actual: 15:46:23
Date YY/MM/DD Actual: 05/06/27
F3:NEXT F4:RET
<<<SYSTEM GAIN>>>
Gain:3.00 Actual:3.00
Signal:87000 Sample flow(CC):75.0
F3:NEXT F4:RET
