Installation
Doc. # 177/52701
Rev. 3.3
3-11
On-board fuse mounting
You can mount your main input protection fuse directly onto the controller body as shown below .
Select the appropriate fuse from the table below. Connect the battery positive cable to the
B+ terminal. Connecting to the end marked ‘+’ (or un-named in the case of size 2) will leave your
installation without a fuse unless located elsewhere in the system. The B+ terminal is a dummy
terminal to allow fuse connection only and has no internal connection.

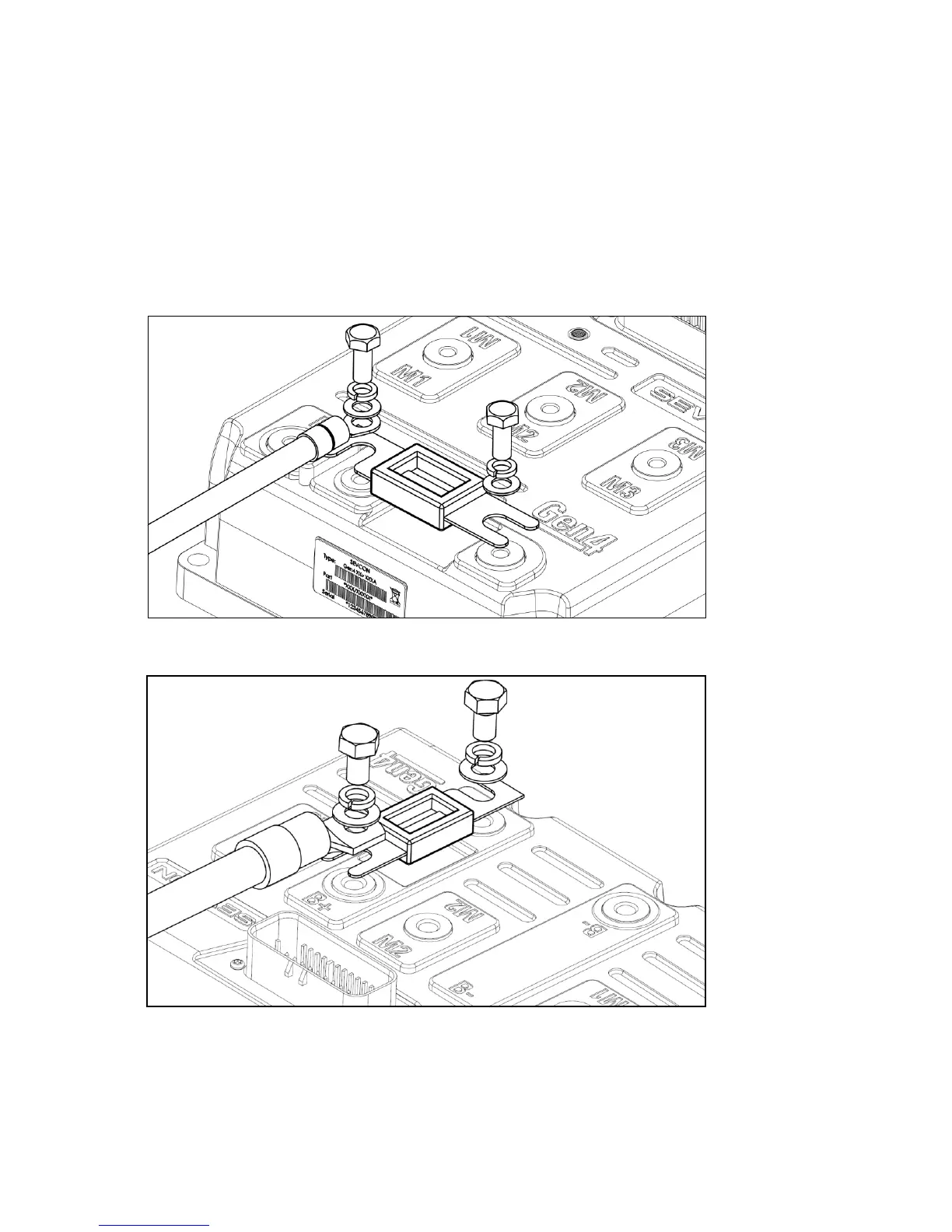

Figure 5 On-board fuse mounting size 2 models
Figure 6 On-board fuse mounting size 4 models
