7.15 Autopilot (optional)
The Autopilot is dual-axis, controlling ailerons and elevator.
The Control System is integrated in all modern EFIS systems.

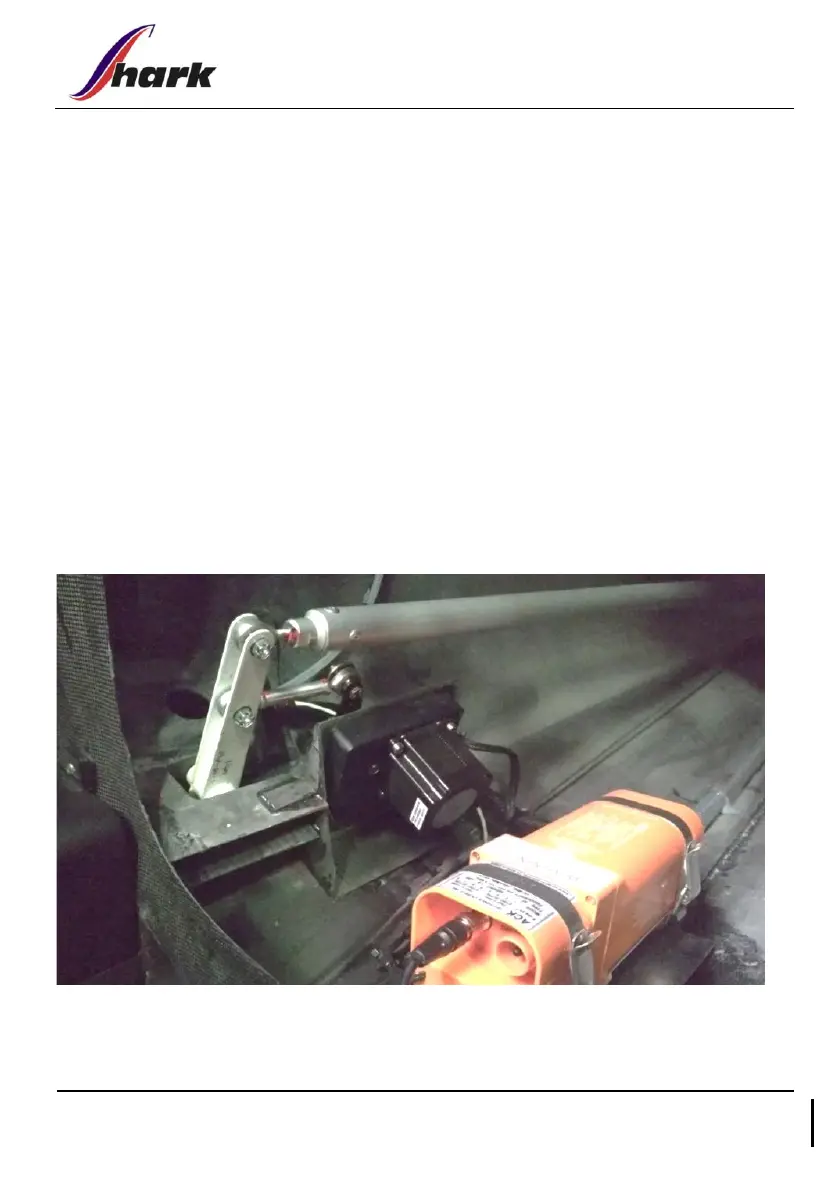

Position of the two Servos is:
• behind baggage compartment
• fuselage, right side stub wing in front of spar channel
The system is activated via separate Autopilot (AP) switch/fuse on
the forward instrument panel.
The autopilot can be controlled via the main EFIS screen or
alternatively via the panel/s placed on the instrument panel.
Autopilot (de)activate buttons are located on both sidesticks.
