7.10 Ballistic Recovery System
Shark 600 is equipped with Stratos Magnum 601 LSA Ballistic
Recovery System with 2 independent release handles.

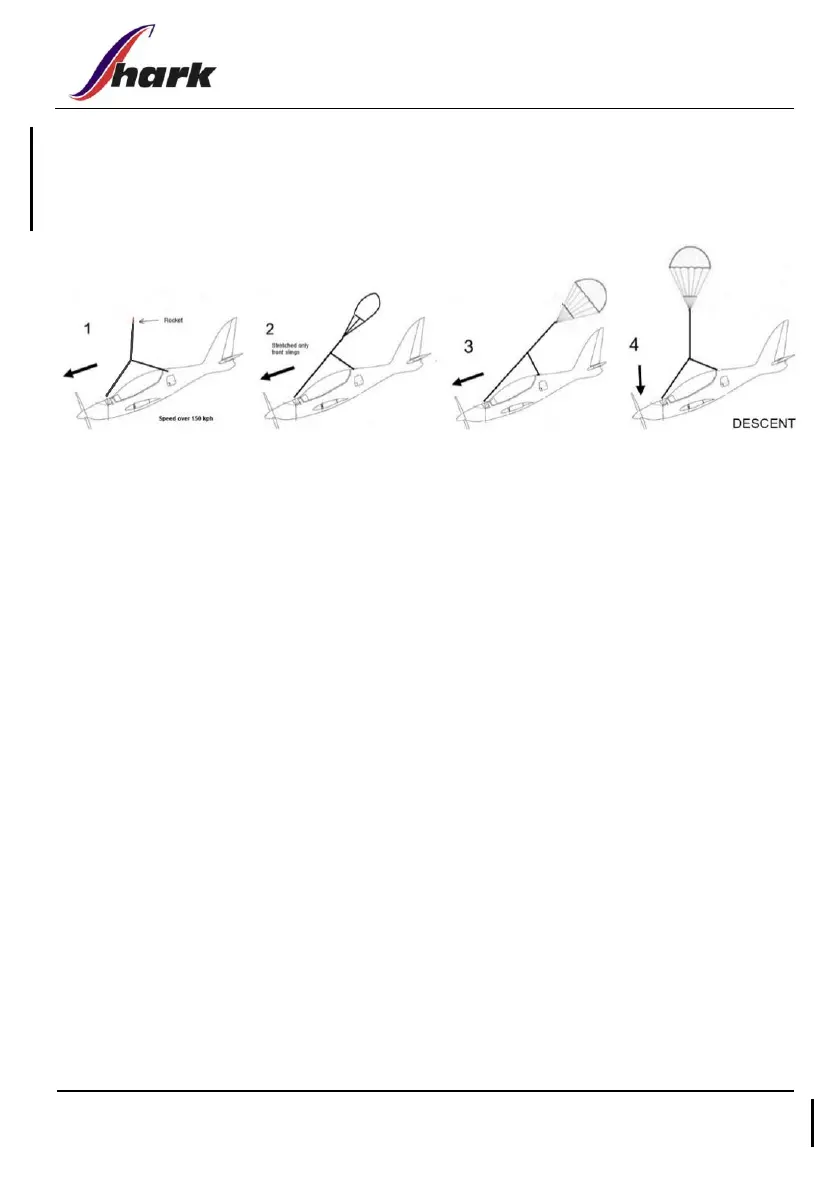

Description of the rescue system Stratos Magnum 601 LSA
The rocket engine is placed in the rocket case. After activation by
pulling one of the release handles, this movement is mechanically
transported by a Bowden cable to a percussive device. It activates
two percussion caps which ignite the rocket box. After ignition, the
rocket escapes under high pressure from the rocket box, towing
the rope which releases the cap of the parachute container, and
the parachute is pulled out of the container. Thereafter the bag of
parachute is discarded, and parachute canopy is filled with air.
