PART NAMES AND FUNCTIONS

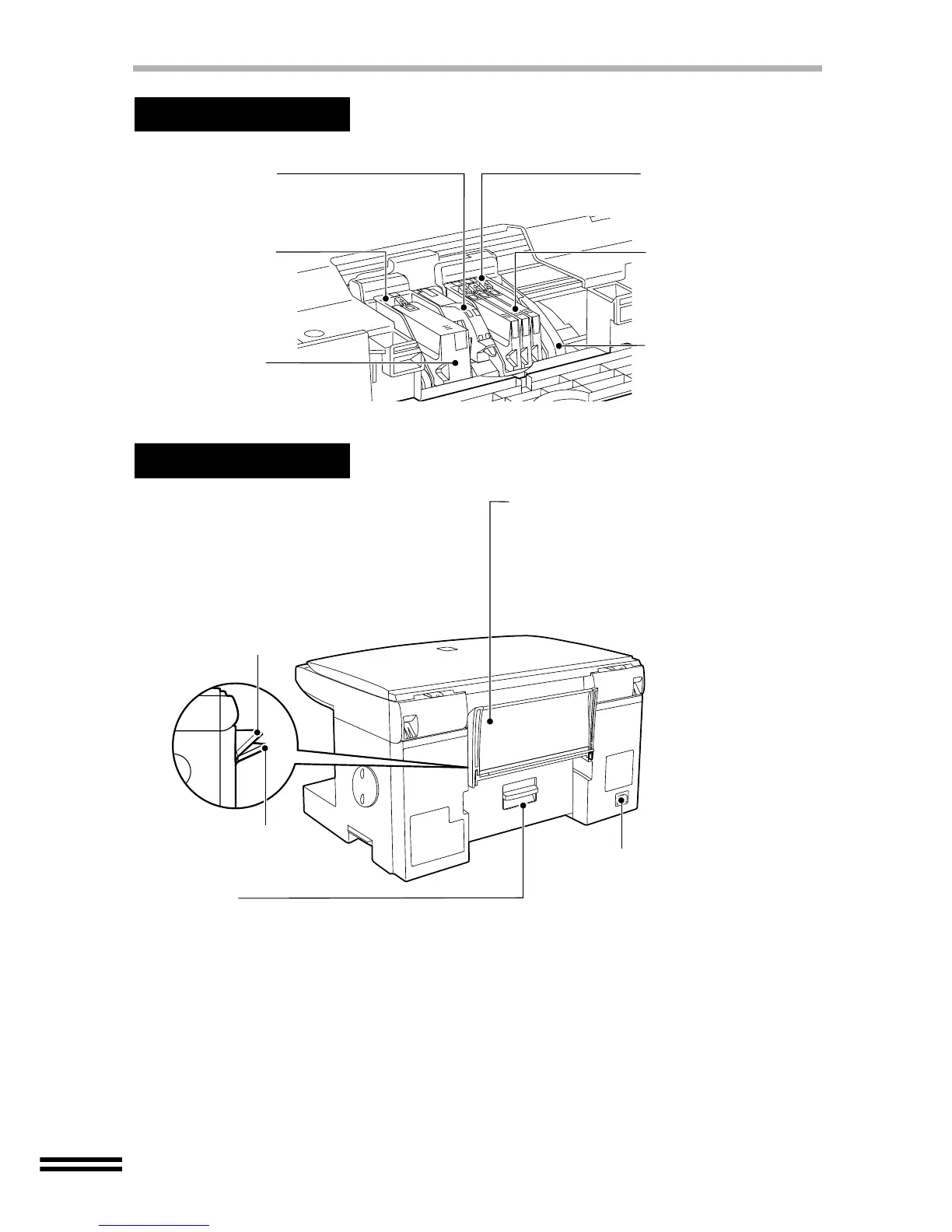

Print head latch
Use this to attach/detach print
heads.
Black ink tank
Cyan ink tank
Yellow ink tank
Magenta ink tank
Carriage
Black print head
Applies ink onto the
paper.
Colour print head
Applies ink onto the
paper.
Internal Part
Bypass tray
Use this tray to copy on a single page. Insert
paper into the tray copy side up. When
copying onto thick paper, open the tray until
it reaches position 2. (The tray has two stop
positions.)
Power socket
Plug the power cord into the
socket.
Jam cover
Open this cover to remove
jammed paper.
Rear Side
Position 1
Position 2
