AL-1551CS EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 6

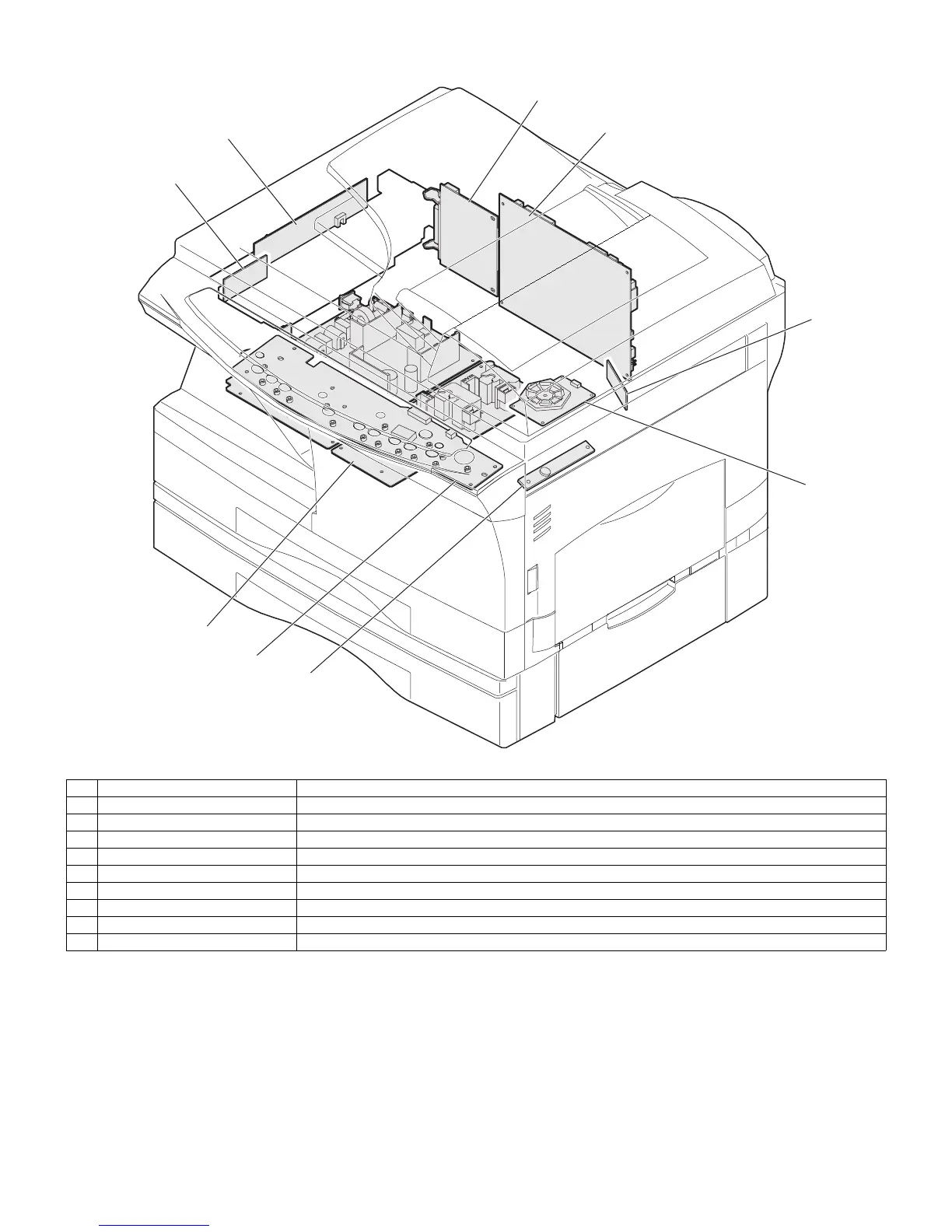

6. PWB unit
2
4
5
1
8
3
6
7
9
No. Name Function
1 Exposure lamp invertor PWB Exposure lamp (CCFL) control
2 Main PWB (MCU) Copier control
3 Operation PWB Operation input/display
4 Power PWB AC power input, DC voltage control, High voltage control
5 CCD sensor PWB For image scanning
6 LSU motor PWB For polygon motor drive
7 TCS PWB For toner sensor control
8 LSU PWB For laser control
9 I/F PWB Scanner/GDI Printer control (parallel I/F, USB I/F)
