AL-1551CS DISASSEMBLY AND ASSEMBLY 8 - 13

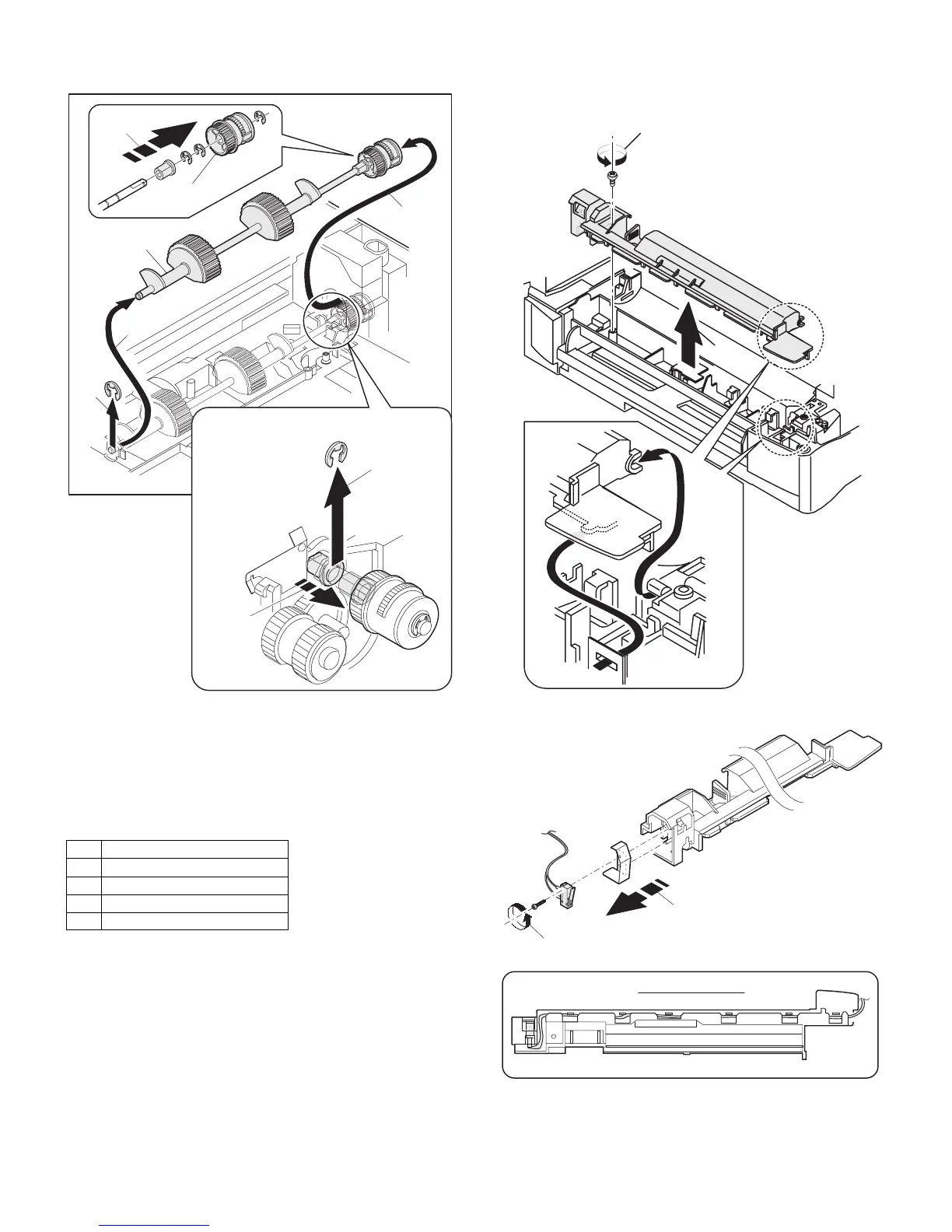

23) Remove two E-rings and remove the paper feed roller.
24) Remove three E-rings and remove the clutch unit.
C. Assembly procedure
For assembly, reverse the disassembly procedure.
6. Manual paper feed section
A. List
B. Disassembly procedure
Single unit
1) Remove the screw and remove the single upper cover.
2) Remove the screw and remove the side door detection unit.
No. Part name Ref.
1 Manual transport roller
2 Cassette detection switch
3 PPD1 sensor PWB
4 Side door detection unit
4)
5)
1)
2)
3)
4)
Back
Front
Clutch unit
Paper feed
roller
1)
2)
1)
2)
Back Wire treatment
