AL-1551CS DISASSEMBLY AND ASSEMBLY 8 - 21

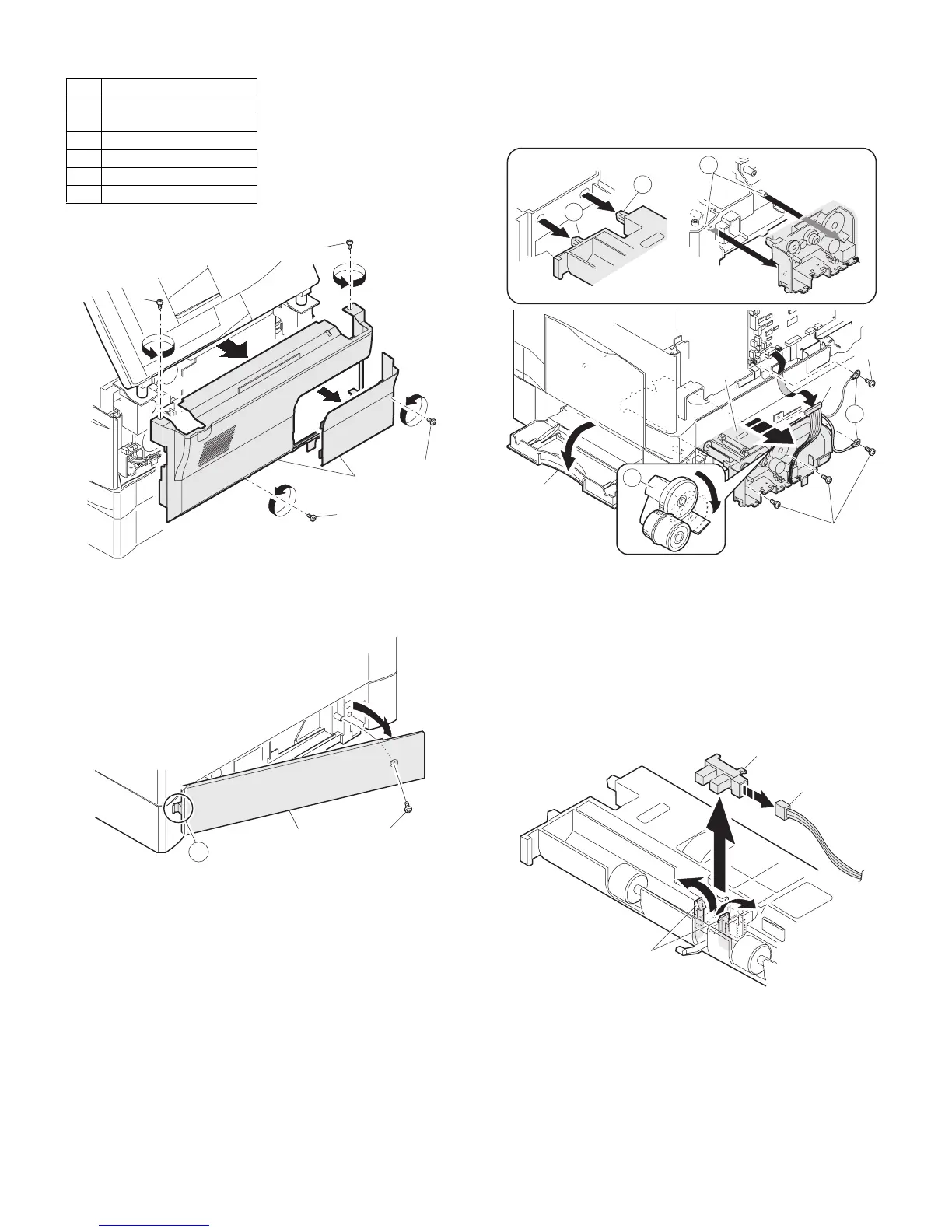

10. 2nd cassette section
Paper feed unit removal
1) Remove the screw.
2) Remove the rear cover.
* When installing, engage the pawl and install the unit.
1) Open the right cabinet.
2) Remove three screws.
3) Remove one connector from MCU.
4) While tilting down the 2nd connection arm A, pull and remove the
paper feed unit toward you.
* When installing, securely insert two bosses C on the machine side
and two bosses D on the paper feed unit side. Be sure to secure the
ground wire B.
* Insert the 2nd page feed.
A. Paper sensor
1) Remove the pawl.
2) Remove the paper sensor.
3) Remove the harness.
No. Part name Ref.
A Paper sensor
B Cassette detection SW
C Paper feed solenoid
D Transport roller
E Paper feed clutch
F 2nd paper feed roller
2)
1)
1)
1)
1)
1
2
A
1
2
4
B
A
3
2
D
D
C
2
3
1
To Next Page
