AL-1551CS DISASSEMBLY AND ASSEMBLY 8 - 17

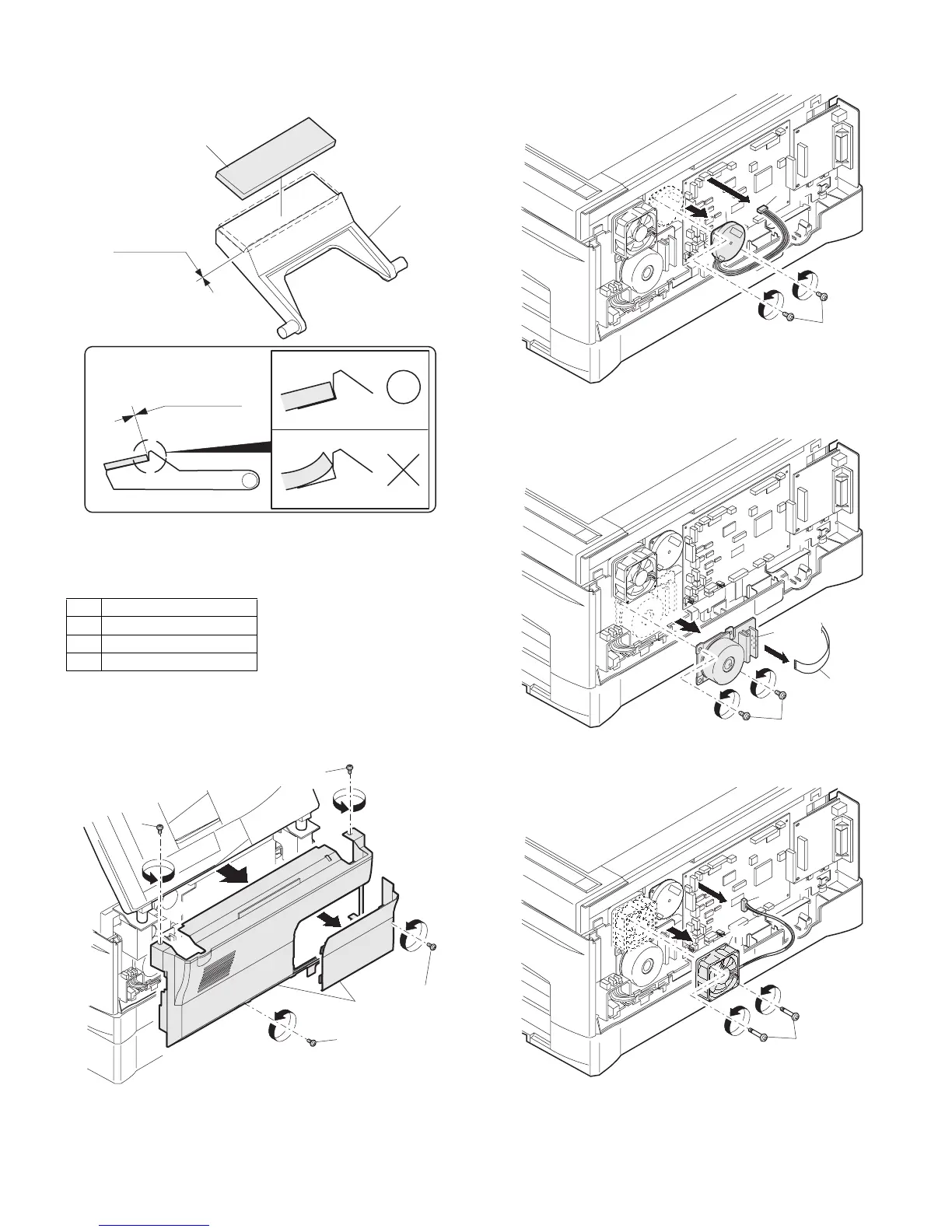

D. Pressure plate holder attachment
1) Attach the pressure plate holder so that the resin section is not
covered with the seal M1-N.
7. Rear frame section
A. List
B. Disassembly procedure
1) Remove four screws, and remove the rear cabinet and the rear
cabinet cover.
2) Disconnect the connector.
3) Remove two screws, and remove the scanner motor.
4) Remove two screws and one harness, and remove the main
motor.
5) Remove two screws and one connector, and remove the exhaust
fan motor.
C. Assembly procedure
For assembly, reverse the disassembly procedure.
No. Part name Ref.
1 Mirror motor
2 Main motor
3 Exhaust fan motor
Pressure plate
holder
Seal M1-N
Attachment
reference
Attachment
reference
2)
1)
1)
1)
1)
1)
2)
3)
1)
2)
3)
1)
2)
3)
