AL-1551CS DISASSEMBLY AND ASSEMBLY 8 - 16

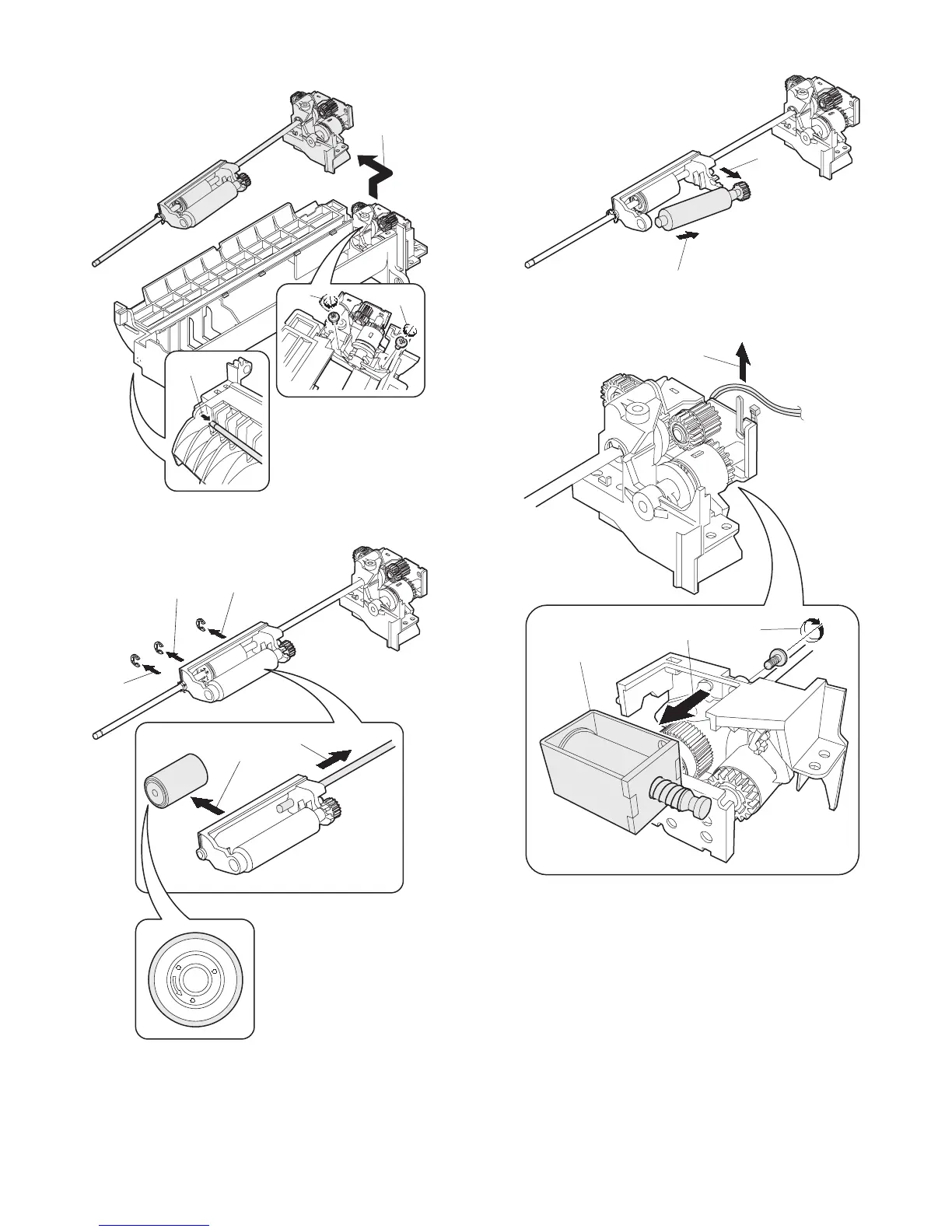

4) Remove two screws and remove the multi feed bracket unit from
the multi paper feed upper frame.
5) Remove three E-rings and remove the manual paper feed roller
B9.
6) Remove the pick-up roller.
7) Cut the binding band and remove the multi paper feed solenoid.
C. Assembly procedure
For assembly, reverse the disassembly procedure.
2)
2)
1)
1)
2)
1)
1)
1)
3)
L
O
C
K
T
O
K
2)
1)
1)
2)
3)
Multi paper feed
solenoid
