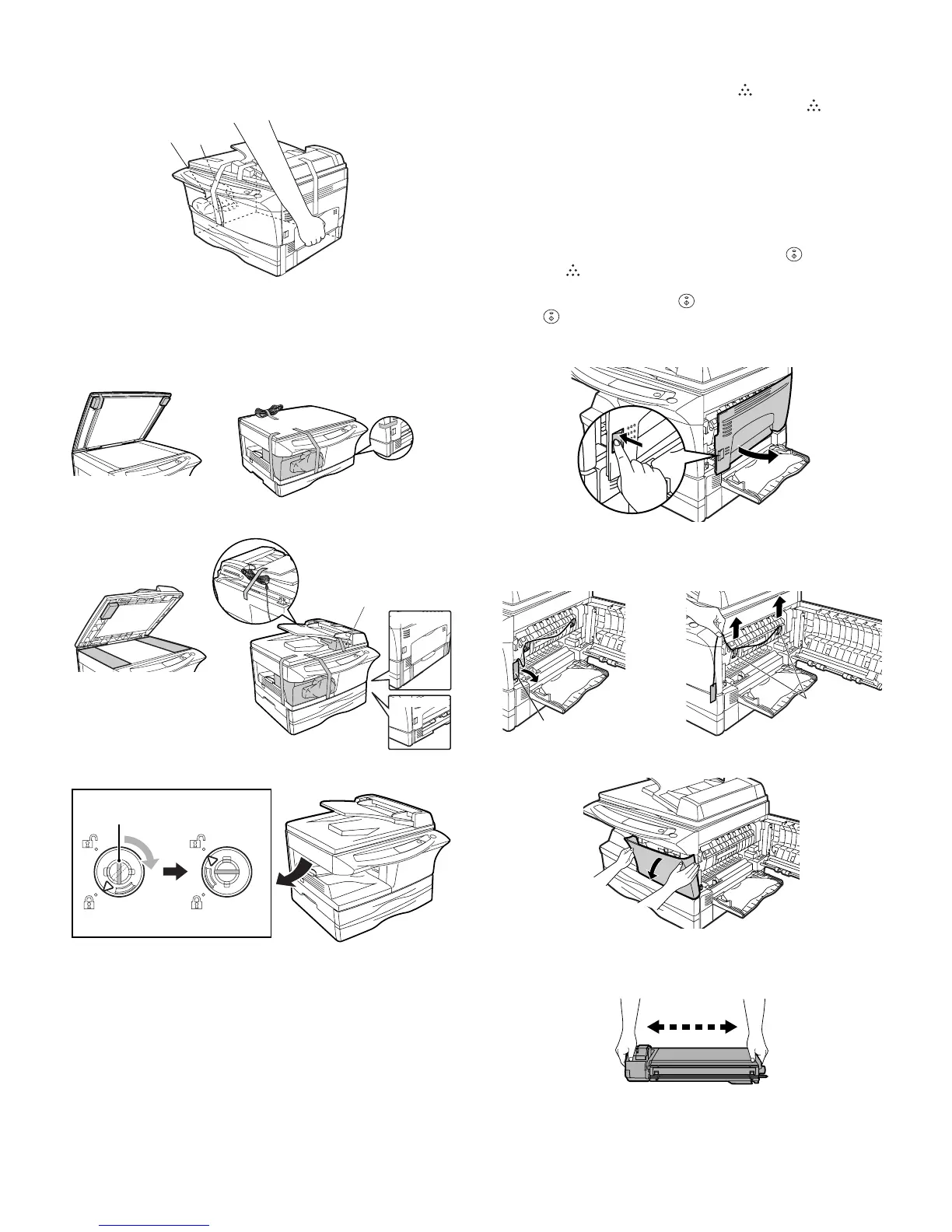

AL-1551CS UNPACKING AND INSTALLATION 5 - 2
4. Unpacking
Be sure to hold the handles on both sides of the copier to unpack the
copier and carry it to the installation location.
5. Removing protective packing materials
1) Remove pieces of tape and protective cover. Then open the origi-
nal cover and remove protective materials (a) and (b).
2) Release the scan head locking switch.
6. Installing the TD cartridge
The TD cartridge replacement required ( ) indicator will light up
when toner is needed. If copying is continued while the indicator is
lit, copies will gradually become lighter until the copier stops and the
indicator begins blinking. Replace the old TD cartridge by following the
procedure given below.
Note:
• After the copier stops, it may be possible to make a few more copies
by taking the TD cartridge out of the copier, shaking it horizontally,
then reinstalling it. If copying is not possible after this operation,
replace the TD cartridge.
• During long copy run of a dark original, the ready ( ) indicator may
blink, the indicator may light up, and the copier may stop, even
though toner cartridge is not empty. The copier will feed toner up to 2
minutes and then the ready ( ) indicator will light up. Press the
print ( ) key to restart copying.
1) Ensure that the bypass tray is open and then open the side cover
by pressing the open button on the side cover.
2) Remove the CAUTION tape from the front cover and remove the
two protective pins from the fusing unit by pulling the strings
upward one at a time.
3) Push gently on both sides of the front cover to open the cover.
4) Remove the TD cartridge from the bag. Remove the protective
paper. Hold the cartridge on both sides and shake it horizontally
four or five times.
AL-1551CS
AL-1540CS
(AL-1551CS only)
AL-1215/AL-1530CS
AL-1540CS/AL-1551CS
AL-1215/AL-1530CS
AL-1540CS/AL-1551CS
Lock Unlock
Grasp here and turn in
the direction of the arrow.
CAUTION tape
Protective pins
4 or 5 times
To Next Page
