AL-2041 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 2

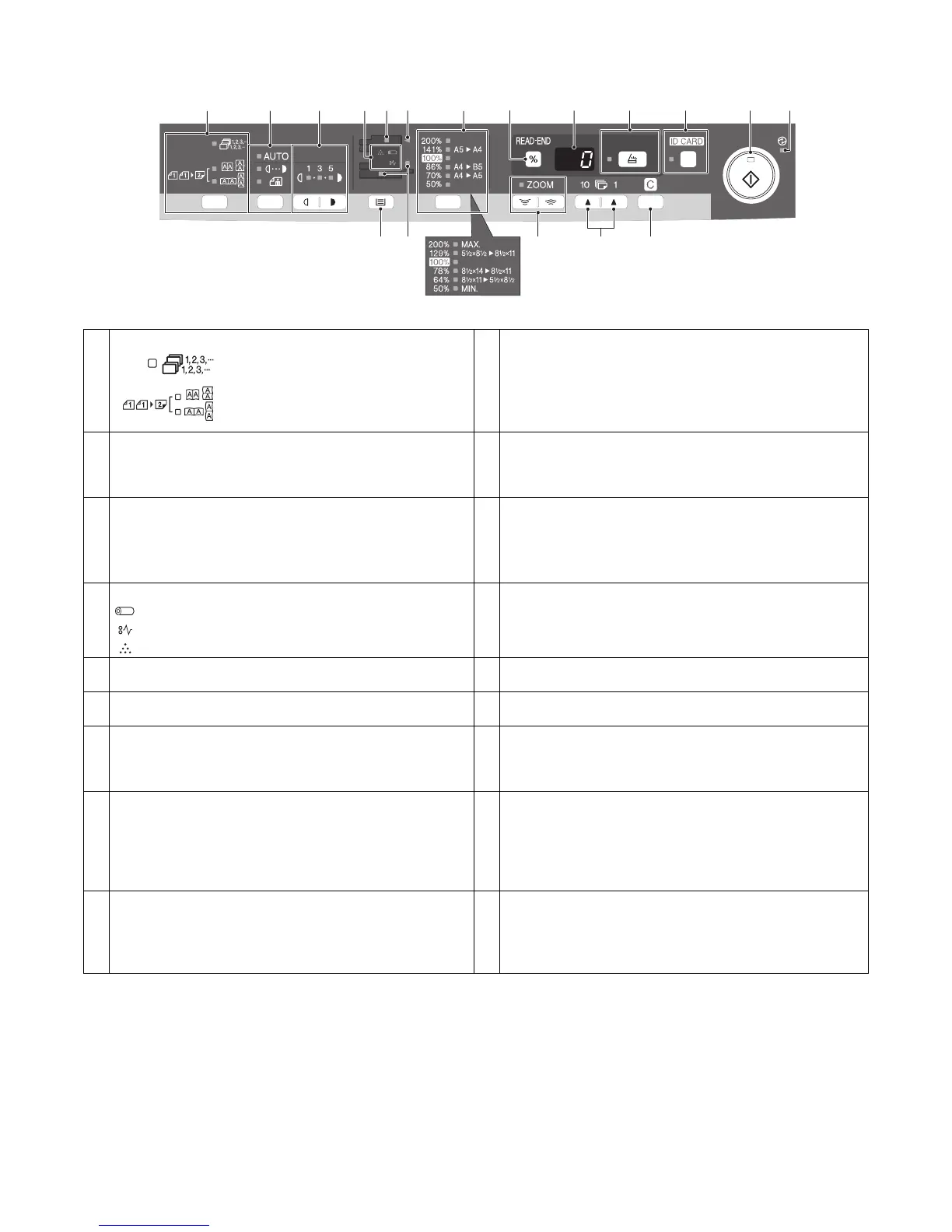

3. Operation panel
*1: AL-2041 only.
*2: AL-2031/2041 only.
*3: The indicators of the operation panel may differ depending on the country and region.
1 Two-sided copy key
*1
/Sort key and indicators 10 SCAN key and indicator
Use to select sort mode.
Two-sided copies from one-sided originals.
Turn on Long Edge or Turn on Short Edge
can be selected.
2 Exposure mode selector key and indicators
Use to sequentially select the exposure modes:
AUTO, MANUAL or PHOTO.
Selected mode is shown by a lit indicator.
11 ID CARD key and indicator
Use to copy ID card. For description, see "ID CARD COPY".
3 Light and dark keys and indicators
Use to adjust the MANUAL or PHOTO exposure level. Selected
exposure level is shown by a lit indicator.
Use to start and terminate user program setting.
12 Start key and indicator
• Copying is possible when the indicator is on.
• Press to start copying.
• Use to set a user program.
4 Alarm indicators 13 Power save indicator
Lights up when the unit is in a power save mode.
Drum replacement required indicator
Misfeed indicator
TD cartridge replacement required indicator
5 SPF indicator
*2
14 Tray select key
Use to select a paper feed station (paper tray or multi-bypass tray).
6 SPF misfeed indicator
*2
15 Paper feed location indicators
Light up to show the selected paper feed station.
7 Copy ratio selector key
*3
and indicators
Use to sequentially select preset reduction/enlargement copy
ratios.
Selected copy ratio is shown by a lit indicator.
16 ZOOM keys and indicator
Use to select any reduction or enlargement copy ratio from 25%
to 400% in 1% increments. (When the SPF is being used, the
zoom copy ratio range is 50% to 200%.)
8 Copy ratio display (%) key/READ-END key
• Use to verify a zoom setting without changing the zoom ratio.
• Use to check the number of originals that must be returned to
the document feeder tray if a misfeed occurs in the machine
when the SPF is used.
• Use to terminate reading originals in sort mode.
17 Copy quantity keys
• Use to select the desired copy quantity (1 to 99).
• Use to make user program entries.
9 Display
Displays the specified copy quantity, zoom copy ratio, user
program code and error code.
18 Clear key
• Press to clear the display, or press during a copy run to
terminate copying.
• Press and hold down during standby to display the total number
of copies made to date.
123456789 10
14 15 16 17 18
11 12 13
