AL-2041 DISASSEMBLY AND ASSEMBLY 8 - 18

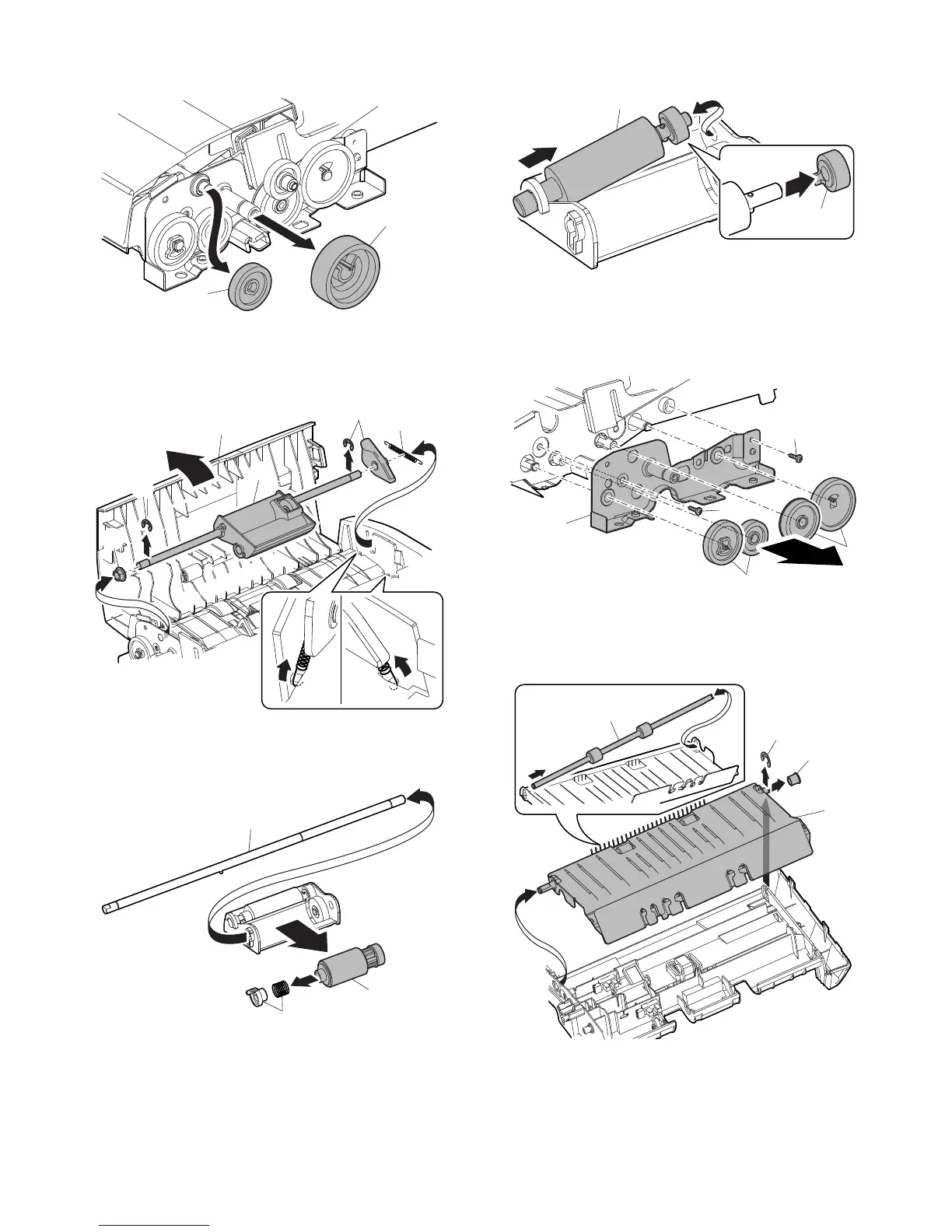

B. Pick-up roller, paper feed roller
1) Remove two gears.
1) Open the upper door.
2) Remove two E-rings, and remove the spring, the arm, and the
bearing.
3) Remove the pick-up roller unit.
1) Remove the shaft.
2) Remove the paper feed roller.
3) Remove the bearing and the spring.
1) Remove the pick-up roller.
2) Remove the gear.
C. Paper exit roller
1) Remove four gears.
2) Remove two screws.
3) Remove the frame.
1) Remove the E-ring.
2) Remove the bearing.
3) Remove the paper guide unit.
4) Remove the paper exit roller.
1)
1)
1)
2)
2)
2)
2)
3)
1)
2)
3)
1)
2)
1)
2)
2)
3)
1)
1)
3)
2)
4)
