AL-2041 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 4

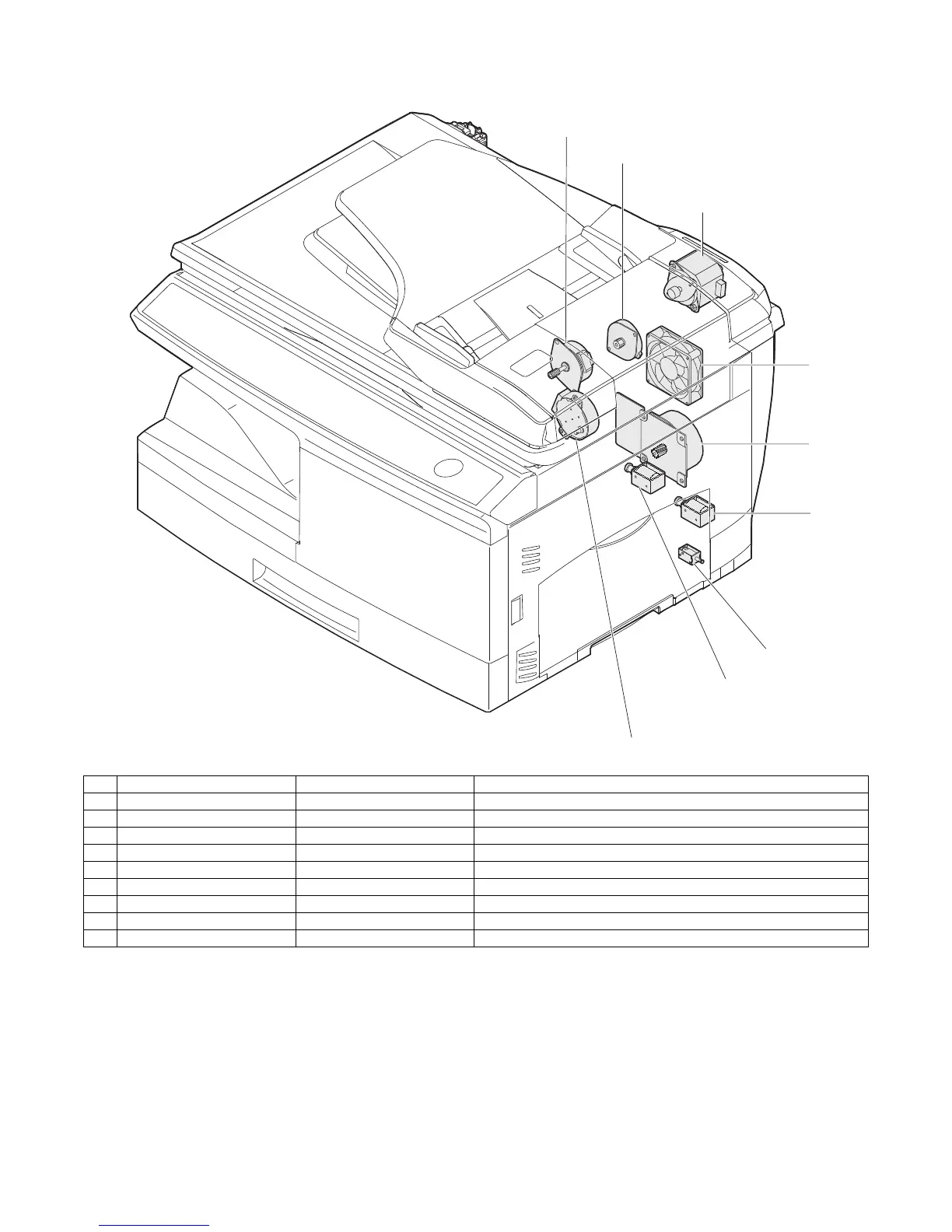

5. Motors and solenoids
9
2
8
4
1
5
3
6
7
No. Name Control signal Function / Operation
1 Main motor MM Drives the copier.
2 Scanner motor MRMT Drives the optical mirror base (scanner unit).
3 Toner motor TM Supplies toner.
4 Cooling fan motor VFM Cools the optical, fusing section.
5 Resist roller solenoid RRS Resist roller rotation control solenoid
6 Paper feed solenoid CPFS1 Cassette Paper feed solenoid 1
7 Multi paper feed solenoid MPFS Multi manual pages feed solenoid
8 SPF motor SPFM Drives the single pass feeder (AL-2031/2041)
9 Duplex motor DMT Devices the duplex paper transport section (AL-2041)
