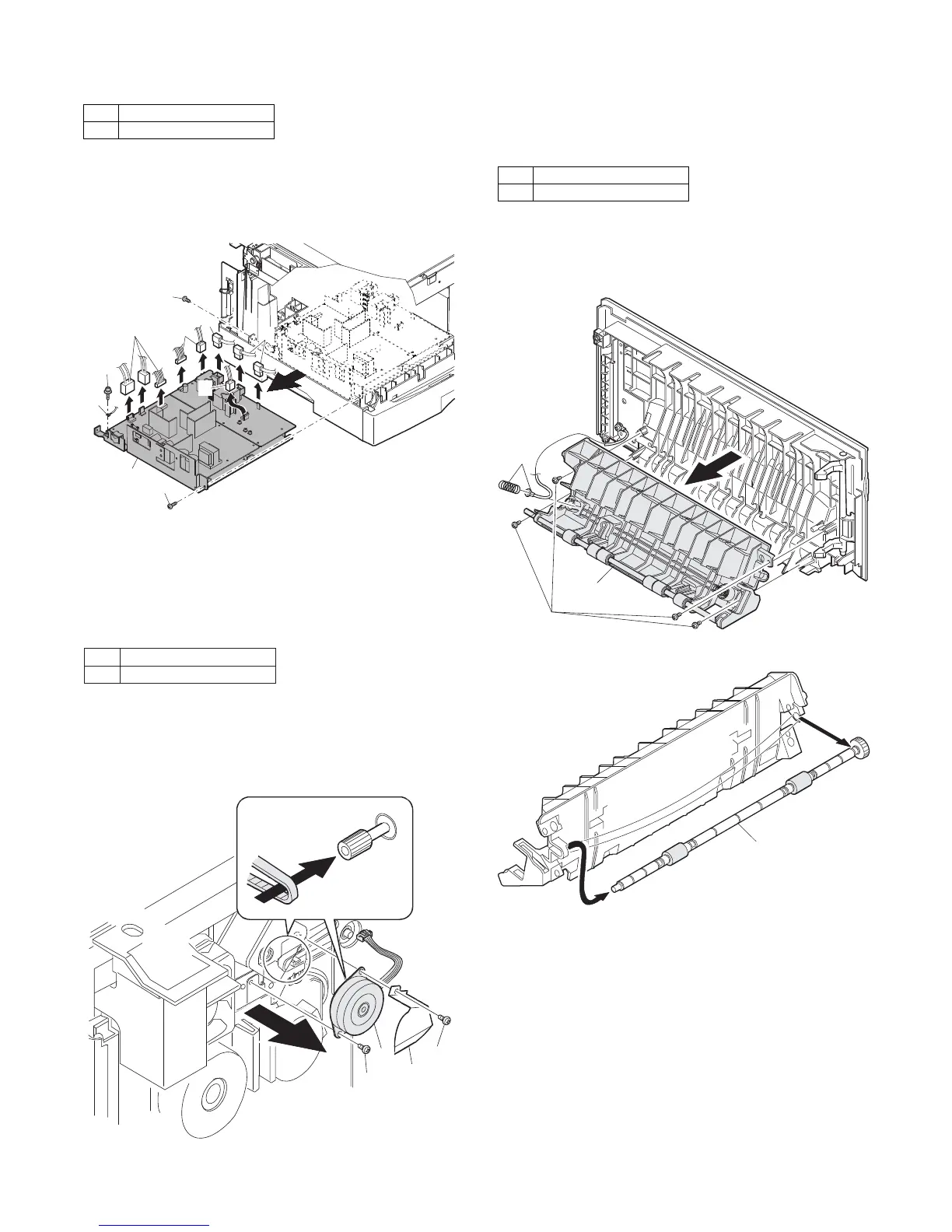

AL-2041 DISASSEMBLY AND ASSEMBLY 8 - 16
8. Power section
A. List
B. Disassembly procedure
1) Disconnect each connector.
2) Remove the screw, and remove the earth line.
3) Remove two screws, and remove the power PWB unit.
C. Assembly procedure
For assembly, reverse the disassembly procedure.
9. Duplex motor section (AL-2041)
A. List
B. Disassembly procedure
1) Remove the rear cabinet.
2) Remove two screws.
3) Remove the Duplex motor cover.
4) Remove the Duplex motor.
Note: When reassembling, be sure to engage the Duplex motor
gear with the belt on the main body side.
C. Assembly procedure
For assembly, reverse the disassembly procedure.
10. Reverse roller section
A. List
B. Disassembly procedure
1) Remove four screws.
2) Remove the spring, and the earth wire.
3) Remove the reverse unit.
4) Bend the reverse roller and remove it.
C. Assembly procedure
For assembly, reverse the disassembly procedure.
No. Part name Ref.
1Power PWB
1)
1)
1)
1)
2)
3)
4)
4)
5)
1)
No. Part name Ref.
1 Duplex motor
1
2
3
1
No. Part name Ref.
1 Reverse roller
1
