AL-2041 DISASSEMBLY AND ASSEMBLY 8 - 17

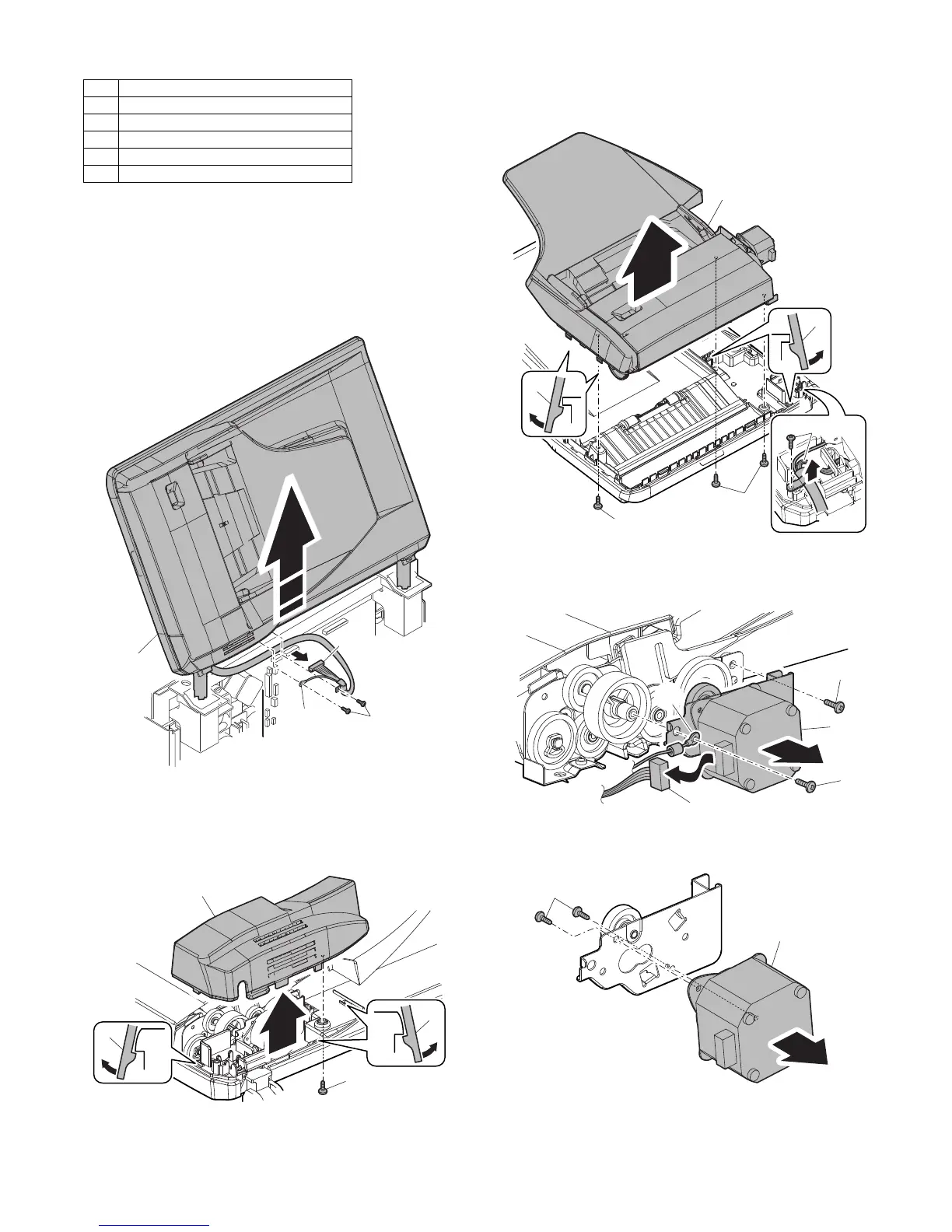

11. SPF section (AL-2031/2041)
(1) Rear cabinet disassembly
1) Remove four screws.
2) Remove the rear cabinet.
(2) Remove the SPF.
1) Remove two screws, and remove the earth wire.
2) Disconnect the connector.
3) Remove the SPF unit.
A. SPF motor
1) Remove the screw.
2) Disengage the pawl (3 positions).
3) Remove the rear cabinet.
1) Remove the screw, and remove the harness.
2) Remove three screws.
3) Disengage the pawl (4 positions).
4) Remove the transport unit.
1) Remove two screws, and remove the earth wire.
2) Remove the SPF motor unit.
3) Disconnect the connector.
1) Remove two screws.
2) Remove the SPF motor.
No. Part name Ref.
A SPF motor
B Pick-up roller, paper feed roller
C Paper exit roller
D Set sensor, scan front sensor
E Transport roller
1)
2)
3)
1)
3)
2)
2)
1)
2)
2)
3)
3)
1)
4)
1)
2)
1)
1)
3)
1)
2)
