AL-2041 DISASSEMBLY AND ASSEMBLY 8 - 12

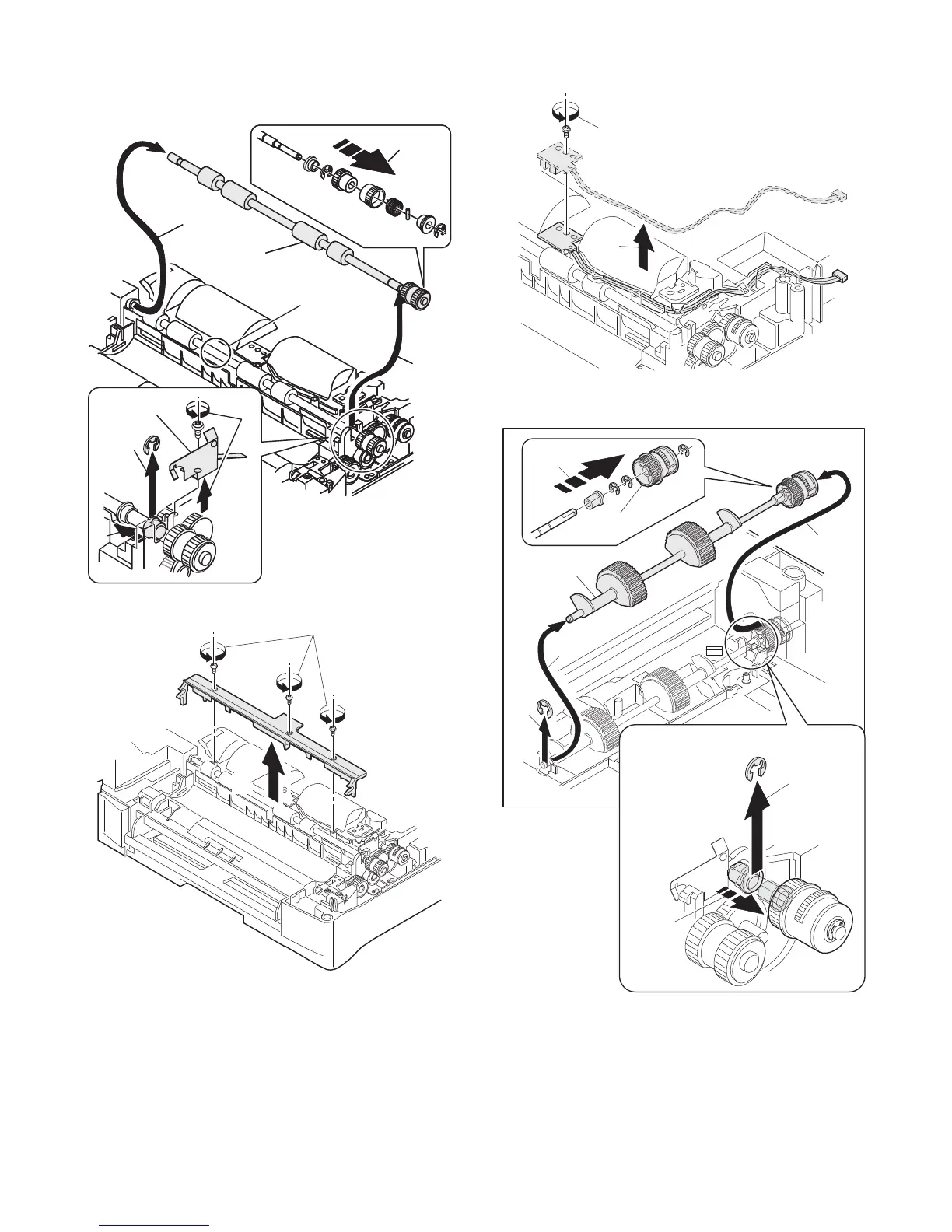

22) Remove the screw and the E-ring, and remove the PS semi-cir-
cular earth plate and the PS roller unit.
23) Remove the E-ring and remove the spring clutch from the PS
roller unit.
24) Remove three screws and remove the TC front paper guide.
25) Remove the screw and the connector, and remove the PPD1
sensor PWB.
26) Remove two E-rings and remove the paper feed roller.
27) Remove three E-rings and remove the clutch unit.
C. Assembly procedure
For assembly, reverse the disassembly procedure.
5)
4)
4)
1)
2)
3)
PS roller unit
PS semi-circuler
earth plate
5)
4)
4)
1)
2)
3)
PS semi-circular
earth plate
Use grease of
Floil FG40H
only to apply to
this section.
1)
2)
1)
2)
4)
5)
1)
2)
3)
4)
Back
Front
Clutch unit
Paper feed
roller
