AL-2041 DISASSEMBLY AND ASSEMBLY 8 - 11

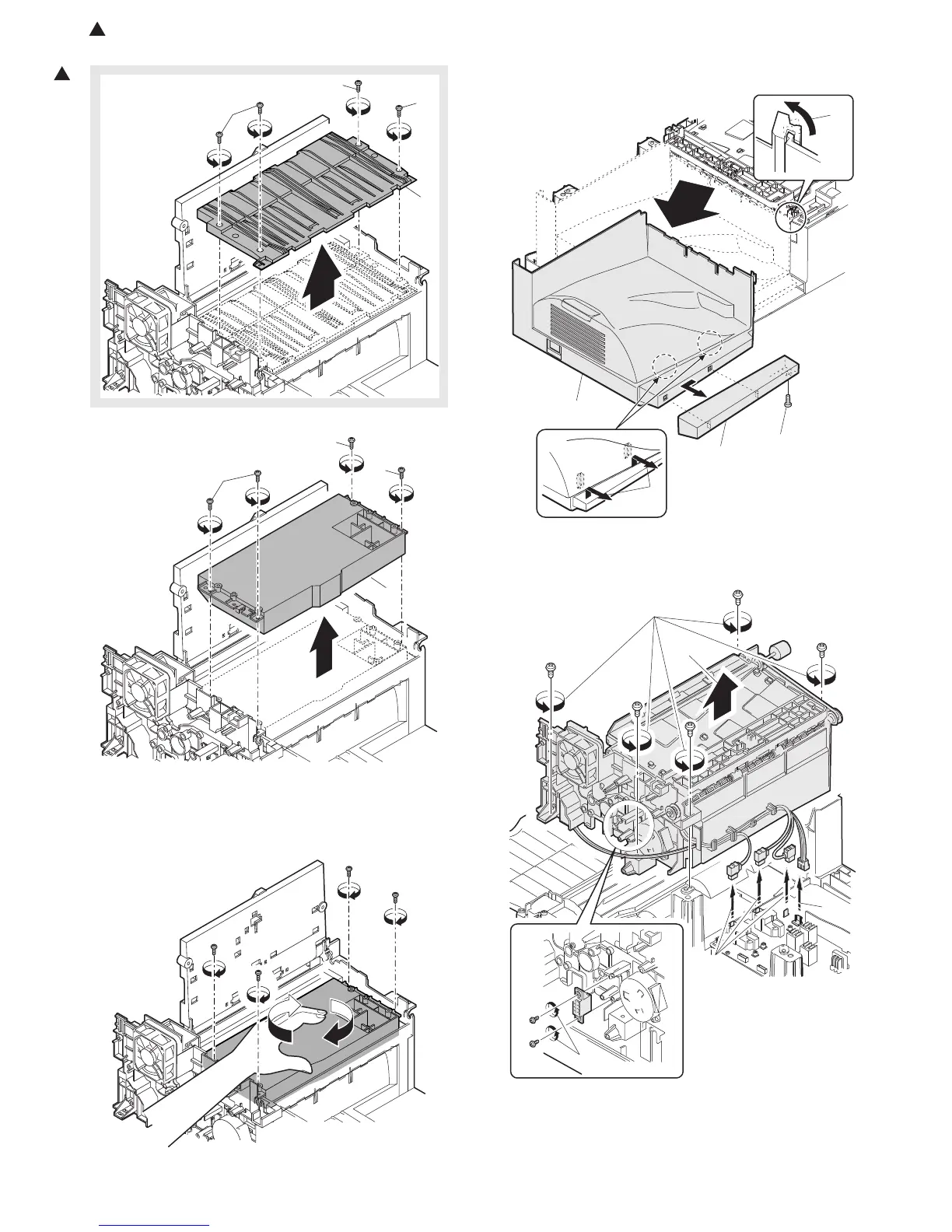

17) Remove four screws, and remove the paper guide unit.
18) Remove four screws, and remove the LSU unit.
[Note for assembling the LSU]
When installing the LSU, turn the LSU clockwise and fix with
screws in order to provide an attachment backlash in the proper
direction.
Observe the following sequence of fixing screws.
19) Remove the screw, slide the left cabinet to the left to detach it.
Remove each pawl, and remove the paper exit tray.
20) Remove two screws and remove the fusing connector.
21) Remove five screws and the connector, and lift the intermediate
frame unit to remove.
2)
1)
1)
1)
1
1)
1)
1)
2)
5)
1)
2)
3)
4)
2)
2)
3)
4)
1)
