Sharp AL-2021 Service Manual

AL-2041 DISASSEMBLY AND ASSEMBLY 8 - 10

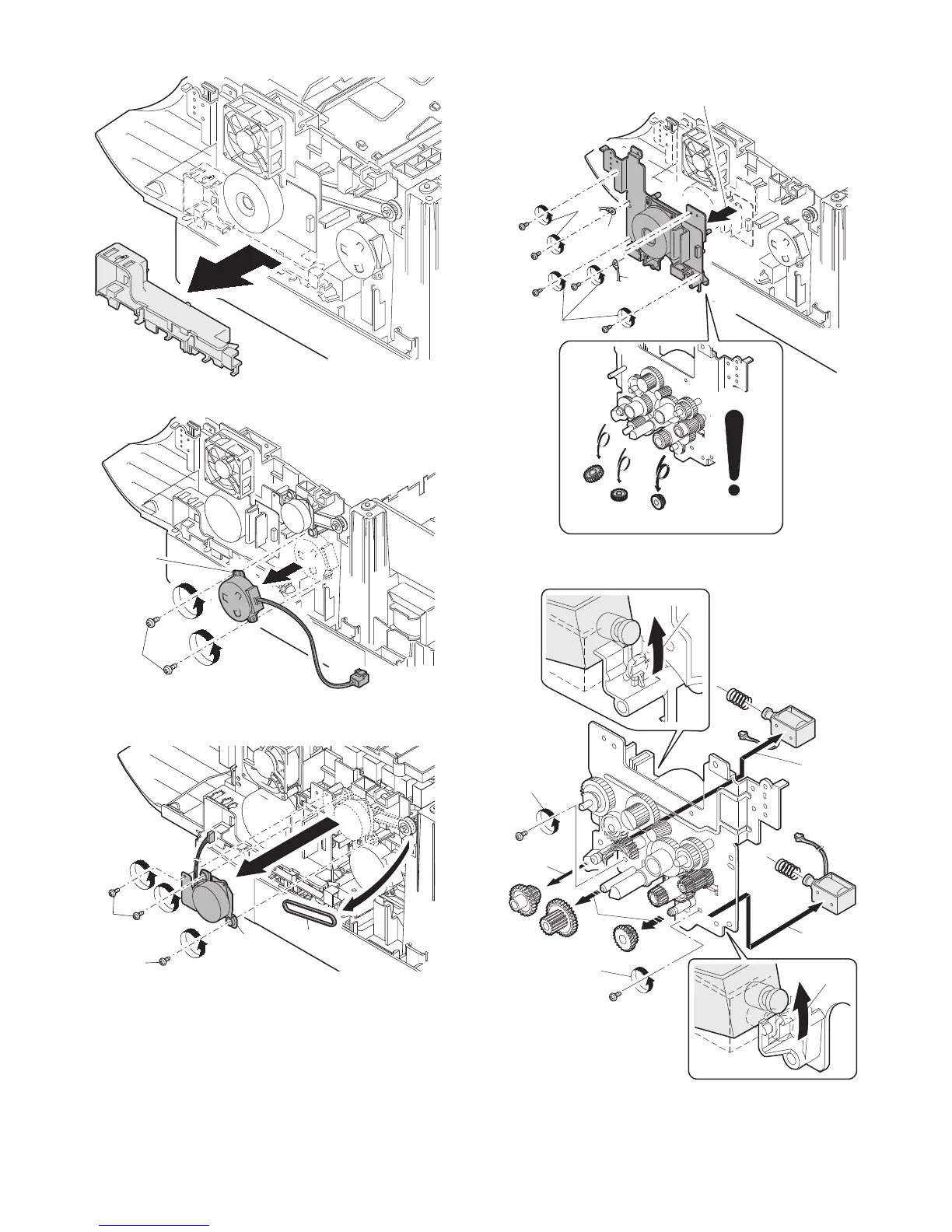

12) Remove the harness guide.
13) Remove two screws and remove the toner motor.
14) Remove three screws, and remove the DUP motor unit and the
belt.
15) Remove five screws and the grounding wire, and remove the
main drive unit.
16) Remove the parts as shown below, and remove the pressure
release solenoid and the paper feed solenoid.
1)
2)
1)
1)
2)
3)
1)
2)
1)
1)
1)
CAUTION:Attach the gears securely
3)
3)
1)
1)
2)
2)
4)
4)
