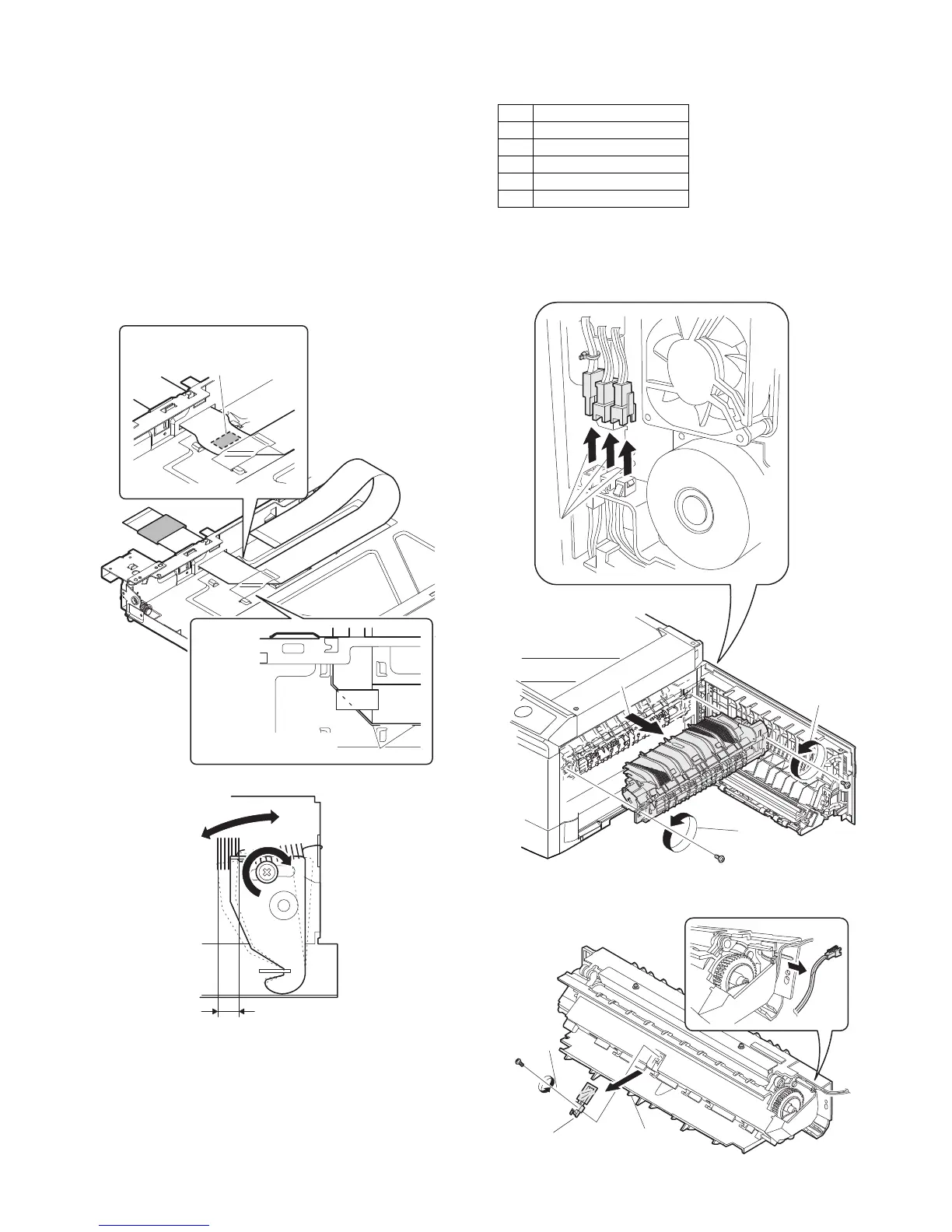

AL-2041 DISASSEMBLY AND ASSEMBLY 8 - 5
C. Assembly procedure
CCD core
1) Insert the CCD-MCU harness into the CCD PWB of the carriage
unit.
2) Attach the CCD-MCU harness to the duplex tape on the back
surface of the carriage unit. Clean and remove oil and dirt from
the attachment surface.
3) Pass the CCD-MCU harness through the square hole in the
base plate.
4) Attach the CCD-MCU harness to the base plate with duplex
tape.
5) Attach two cable fixing sheets to fix the CCD-MCU harness to
the base plate.
6) Pass the core through the CCD-MCU harness and fix the core.
7) Insert the CCD-MCU harness into the MCU PWB.
4. Fusing section
A. List
B. Disassembly procedure
1) Remove the connectors (3 pcs.) of the rear cabinet.
2) Open the side cover, remove two screws, and remove the fus-
ing unit.
3) Cut the binding band, remove the screw, and remove the ther-
mistor.
Note: Attach the FFC to the base
plate securely with duplex tape to
prevent against coming loose.
Note: Attach the FFC to
fit with the marking line.
Marking line.
No. Part name Ref.
1 Thermistor
2 PPD2 sensor
3 Heater lamp
4 Pressure roller
5 Heat roller
To Next Page
