AL-2041 DISASSEMBLY AND ASSEMBLY 8 - 4

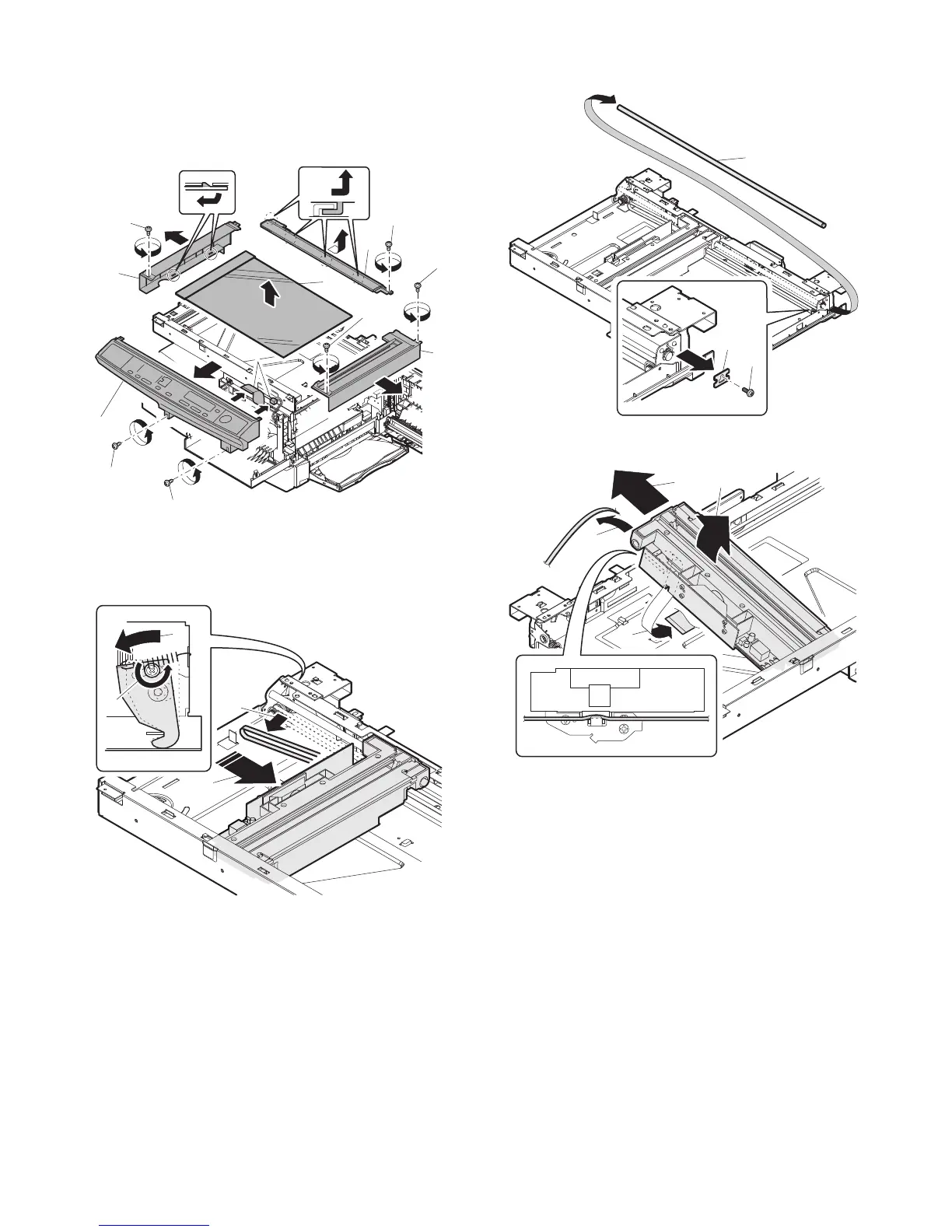

5) Remove five screws. Remove the operation unit, and discon-
nect the connector.
6) Remove the right cabinet.
7) Remove the left cabinet.
8) Remove the screw, and remove the rear cover.
9) Remove the table glass.
10) Move the carriage to the position indicated on the figure.
11) Loosen the screw which is fixing the tension plate.
12) Move the tension plate in the arrow direction to release the ten-
sion, and remove the belt.
13) Remove the screw, and remove the rod stopper.
14) Remove the rod.
15) Lift the rear side of the carriage, remove the belt and the con-
nector, and remove the carriage.
2)
4)
5)
6)
7)
8)
1)
1)
1)
3)
1)
1)
1)
2)
4)
3)
1)
2)
3)
1)
2)
4)
3)
