AL-2041 DISASSEMBLY AND ASSEMBLY 8 - 8

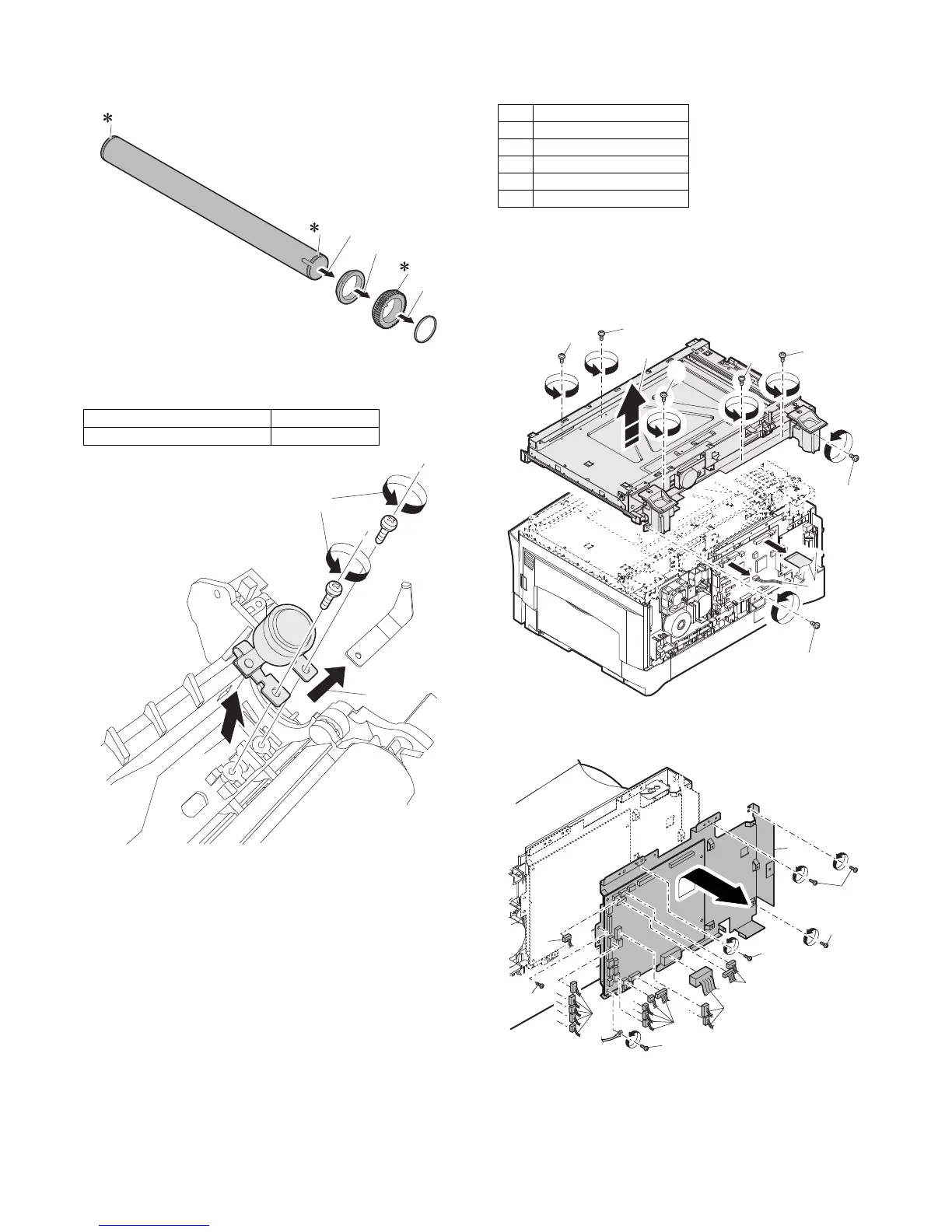

7) Remove the parts from the heat roller.
Note: Apply grease to the sections specified with *1.
Grease: "JFE552" UKOG-0235FCZZ
8) Remove two screws and remove the thermo unit.
Note: The set temperature of the thermostat differs from that of the
current model.
C. Assembly procedure
For assembly, reverse the disassembly procedure.
5. Tray paper feed/transport section
A. List
B. Disassembly procedure
1) Remove two screws, and remove the hinge guide R.
2) Disconnect the connector. (2 positions)
3) Remove five screws, and remove the scanner unit.
4) Remove the fan duct.
5) Remove each connector and six screws, and remove the MCU
PWB. (The shape of the MCU PWB differs depending on the
model.)
Temperature
AL-2021/2031/2041 230°C
3)
2)
1)
1
1
1
1)
2)
3)
No. Part name Ref.
1 PPD1 sensor PWB
2 POD sensor PWB
3 LSU unit
4 Intermediate frame unit
5 Paper feed roller
2)
2)
1)
2)
2)
2)
2)
2)
3)
3)
2)
1)
1)
1)
2)
2)
2)
2)
1)
1)
