AL-2041 DISASSEMBLY AND ASSEMBLY 8 - 7
：'10/Oct/20
1

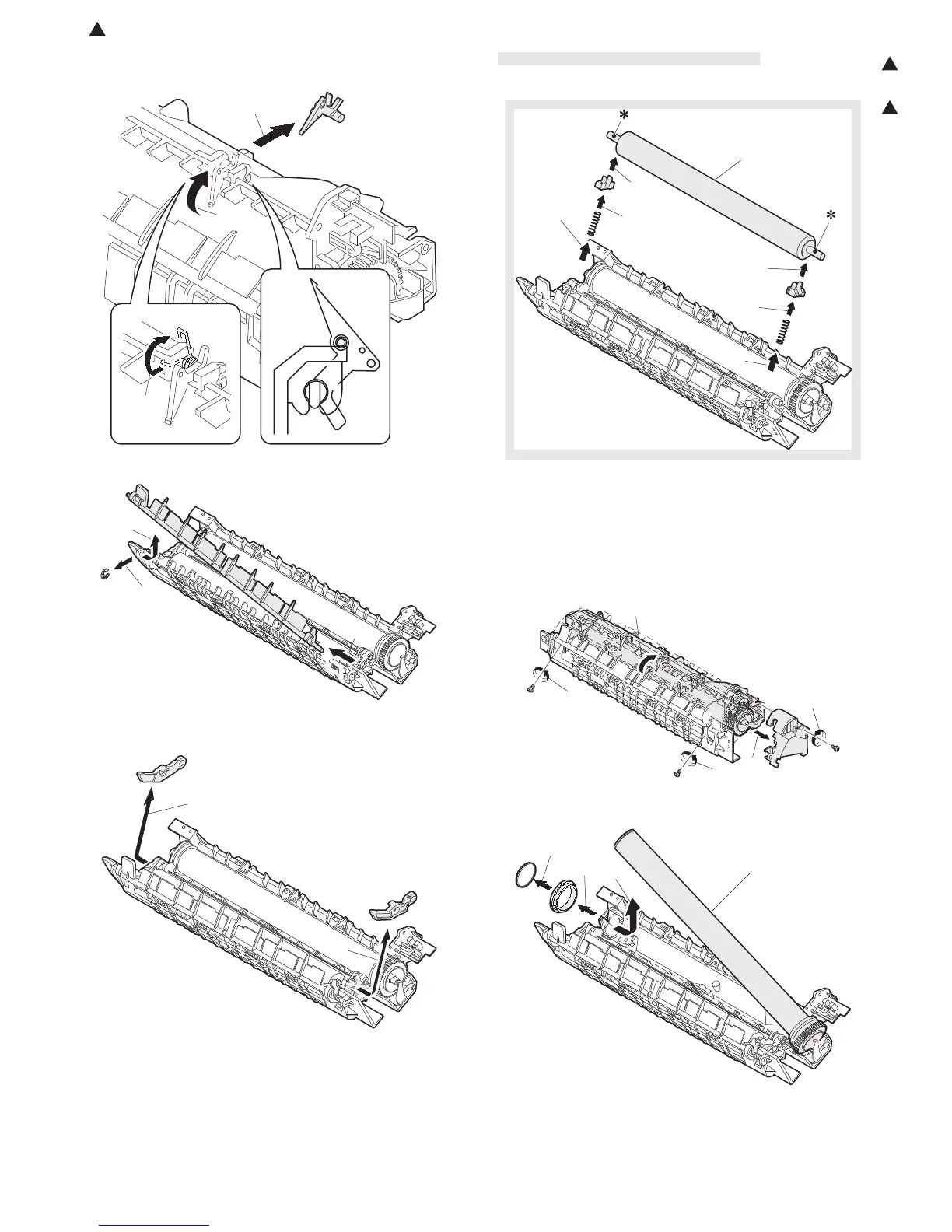

9) Remove the spring, and remove the upper separation pawls (3
pcs.).
10) Remove the E-ring and remove the reverse gate.
11) Remove the pressure release levers on the right and the left
sides.
12) Remove the pressure roller, and the spring.
Note: Apply grease to the sections specified with an asterisk (*).
Grease: "JFE552" UKOG-0235FCZZ
Heat roller disassembly
(Continued from procedure 4).)
5) Remove screws, remove the fusing cover, and open the heat
roller section.
Note: When opening the fusing unit, be careful not to deform the
fusing lower earth spring as described in the item 8) of "Pres-
sure roller section disassembly.
6) Remove the C-ring and the fusing bearing, and remove the
heat roller.
3)
1)
2)
2)
1)
3)
1)
1)
1
1)
2)
2)
1)
3)
3)
Pressure roller
1
1)
2)
2)
3)
3)
1)
2)
3)
Heat roller
