Sharp AL-2030 Service Manual

AL-2040CS EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 4

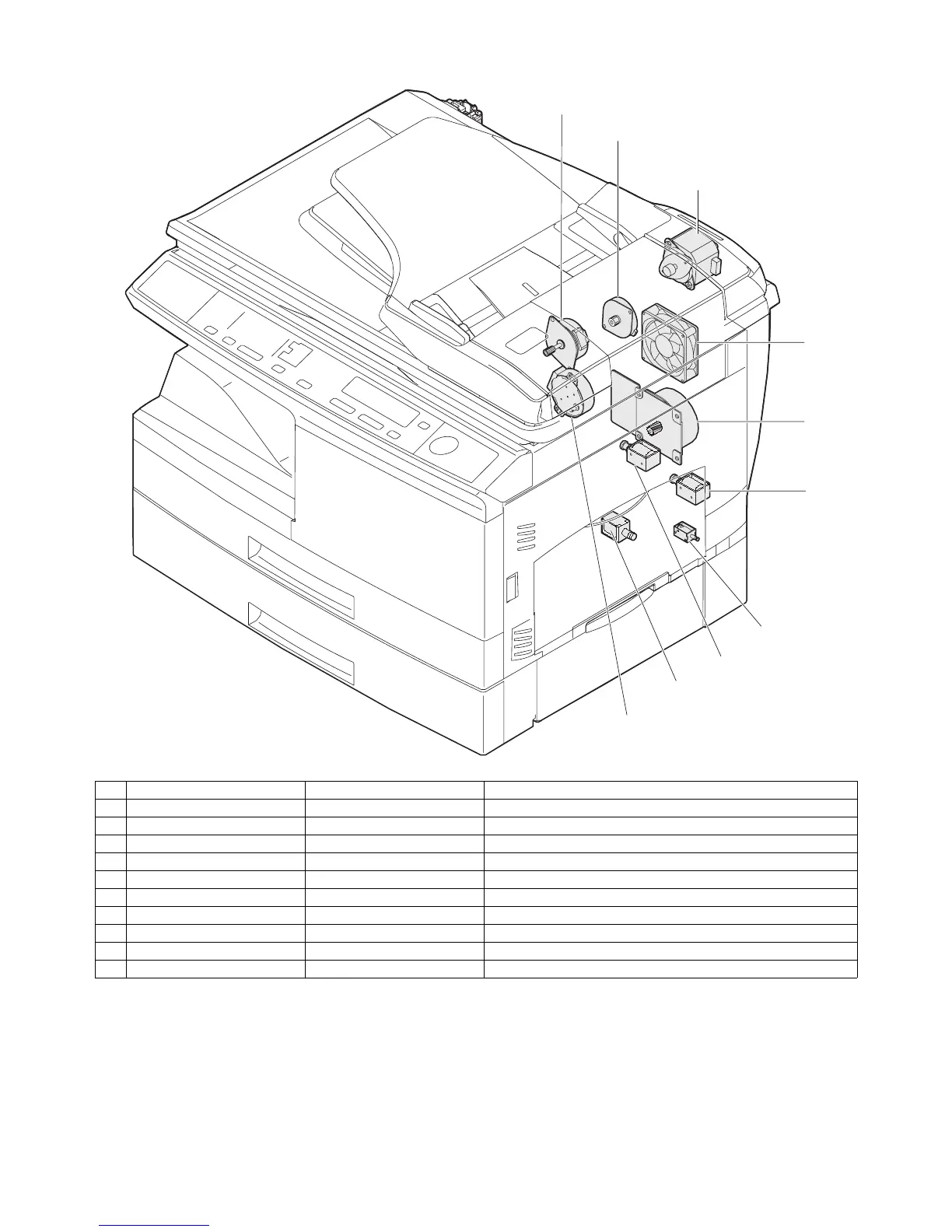

4. Motors and solenoids
3
9
2
8
4
1
5
7
10
6
No. Part name Control signal Function / Operation
1 Main motor MM Drives the copier.
2 Scanner motor MRMT Drives the optical mirror base (scanner unit).
3 Toner motor TM Supplies toner.
4 Cooling fan motor VFM Cools the optical, fusing section.
5 Resist roller solenoid RRS Resist roller rotation control solenoid
6 Paper feed solenoid CPFS1 Cassette Paper feed solenoid 1
7 Multi paper feed solenoid MPFS Multi manual pages feed solenoid
8 SPF motor SPFM Drives the single pass feeder
9 Duplex motor DMT Devices the duplex paper transport section
10 Paper feed solenoid CPFS2 Cassette Paper feed solenoid 2

Sharp AL-2030 Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	16 ppm
Copy speed (black, normal quality, A4)	20 cpm
Multi-Purpose tray	Yes
Total input capacity	250 sheets
Auto document feeder (ADF) input capacity	50 sheets
Power requirements	120 VAC +/- 10 %; 60 Hz +/- 2 %
All-in-one functions	Copy, Scan
Compatible operating systems	Windows 98, Me, 2000, XP, Vista
Market positioning	Business
