Sharp AL-2030 Service Manual

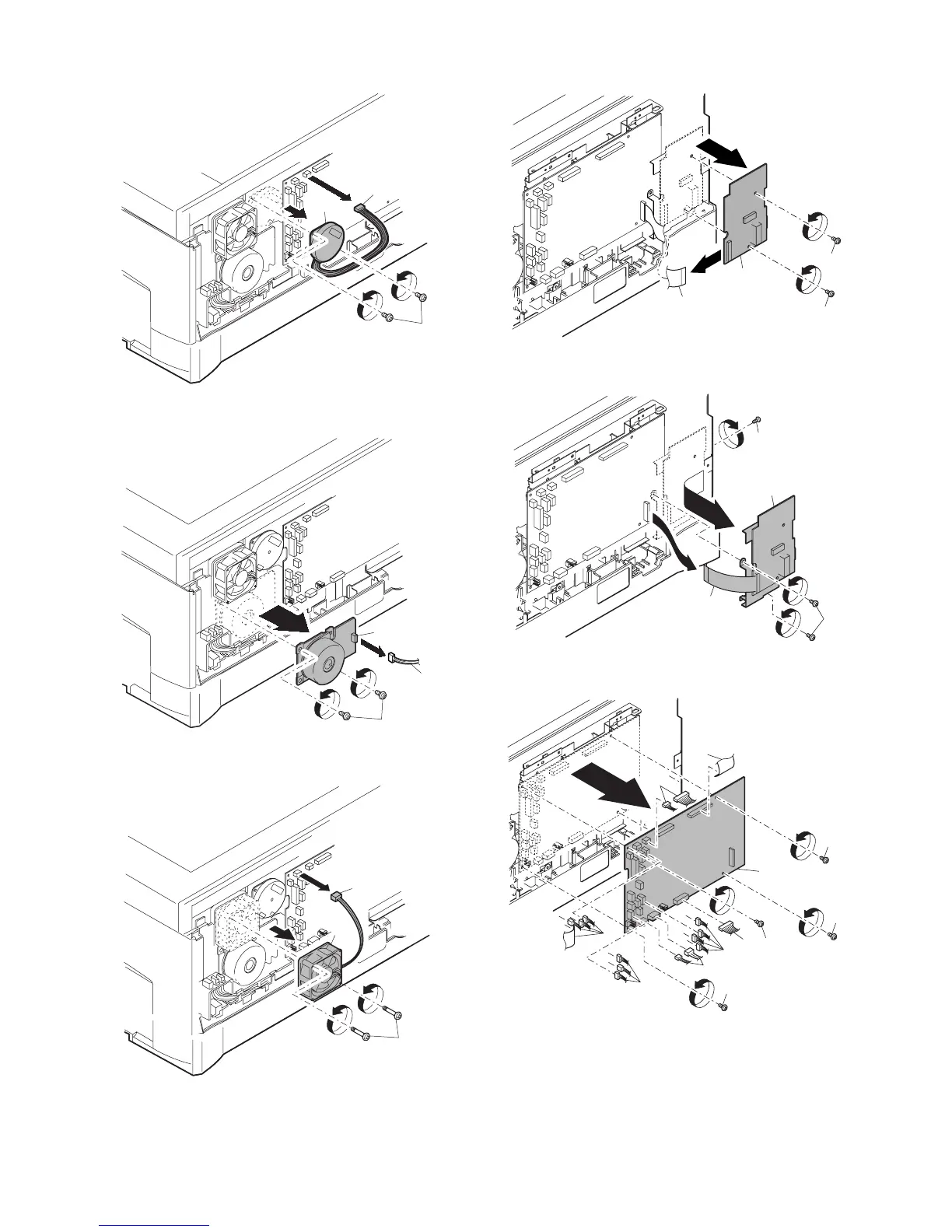

AL-2040CS DISASSEMBLY AND ASSEMBLY 8 - 15
2) Disconnect the connector.
3) Remove two screws, and remove the scanner motor.
4) Remove two screws and one harness, and remove the main
motor.
5) Remove two screws and one connector, and remove the
exhaust fan motor.
6) Disconnect the connector.
7) Remove the two screws, and remove the NIC PWB.
8) Disconnect the connector.
9) Remove the three screws, and remove the NIC PWB unit.
10) Disconnect the connectors.
11) Remove the five screws, and remove the MCU PWB.
C. Assembly procedure
For assembly, reverse the disassembly procedure.
1)
2)
3)
1)
2)
3)
1)
2)
3)
2)
2)
3)
1)
3)
3)
1)
2)
2)
2)
3)
2)
2)
2)
1)
1)
1)
1)
1)
1)

Sharp AL-2030 Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	16 ppm
Copy speed (black, normal quality, A4)	20 cpm
Multi-Purpose tray	Yes
Total input capacity	250 sheets
Auto document feeder (ADF) input capacity	50 sheets
Power requirements	120 VAC +/- 10 %; 60 Hz +/- 2 %
All-in-one functions	Copy, Scan
Compatible operating systems	Windows 98, Me, 2000, XP, Vista
Market positioning	Business
