Sharp AL-2030 Service Manual

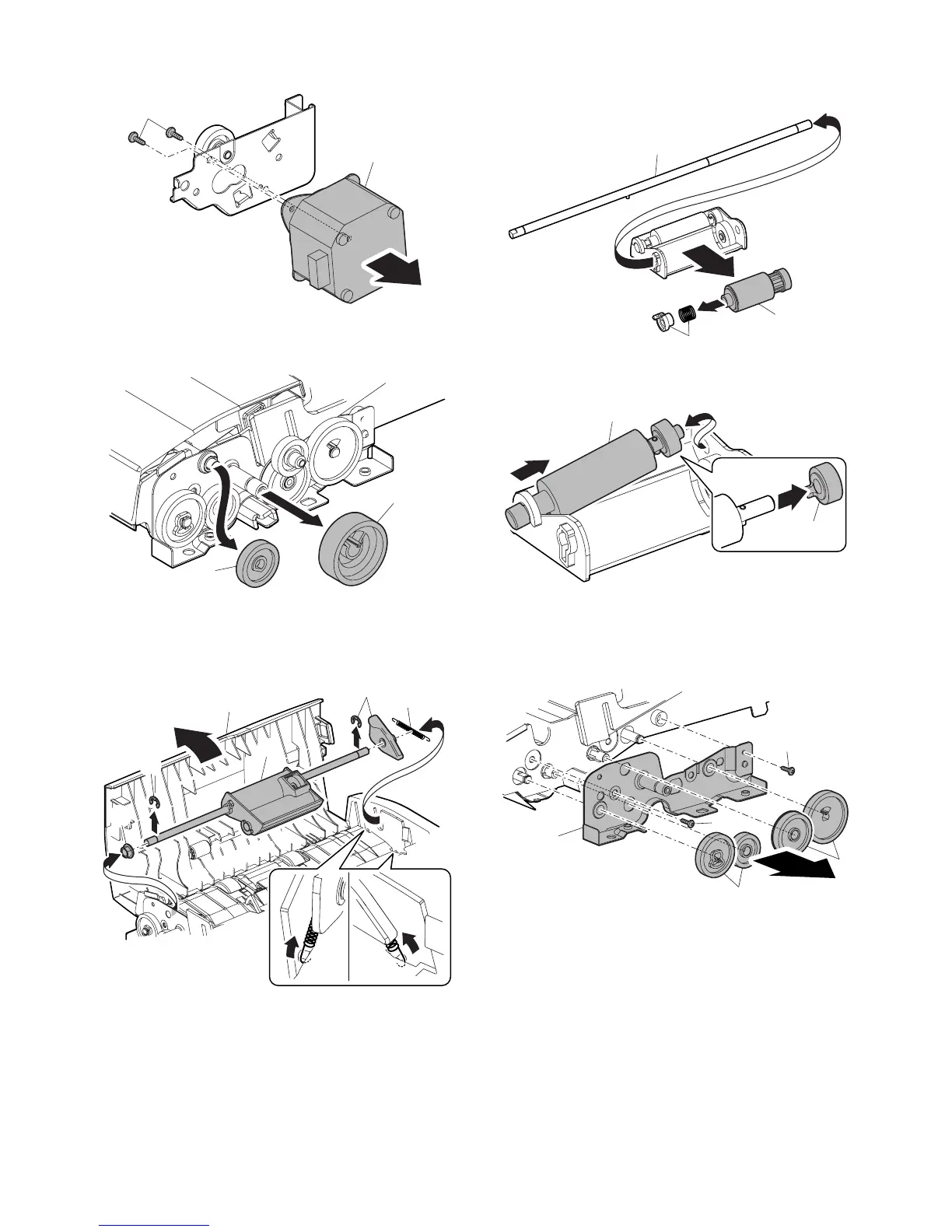

AL-2040CS DISASSEMBLY AND ASSEMBLY 8 - 17
1) Remove two screws.
2) Remove the SPF motor.
B. Pick-up roller, paper feed roller
1) Remove two gears.
1) Open the upper door.
2) Remove two E-rings, and remove the spring, the arm, and the
bearing.
3) Remove the pick-up roller unit.
1) Remove the shaft.
2) Remove the paper feed roller.
3) Remove the bearing and the spring.
1) Remove the pick-up roller.
2) Remove the gear.
C. Paper exit roller
1) Remove four gears.
2) Remove two screws.
3) Remove the frame.
1) Remove the E-ring.
2) Remove the bearing.
3) Remove the paper guide unit.
4) Remove the paper exit roller.
1)
2)
1)
1)
1)
2)
2)
2)
2)
3)
1)
2)
3)
1)
2)
1)
2)
2)
3)
1)

Sharp AL-2030 Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	16 ppm
Copy speed (black, normal quality, A4)	20 cpm
Multi-Purpose tray	Yes
Total input capacity	250 sheets
Auto document feeder (ADF) input capacity	50 sheets
Power requirements	120 VAC +/- 10 %; 60 Hz +/- 2 %
All-in-one functions	Copy, Scan
Compatible operating systems	Windows 98, Me, 2000, XP, Vista
Market positioning	Business
