AL-2040CS DISASSEMBLY AND ASSEMBLY 8 - 16

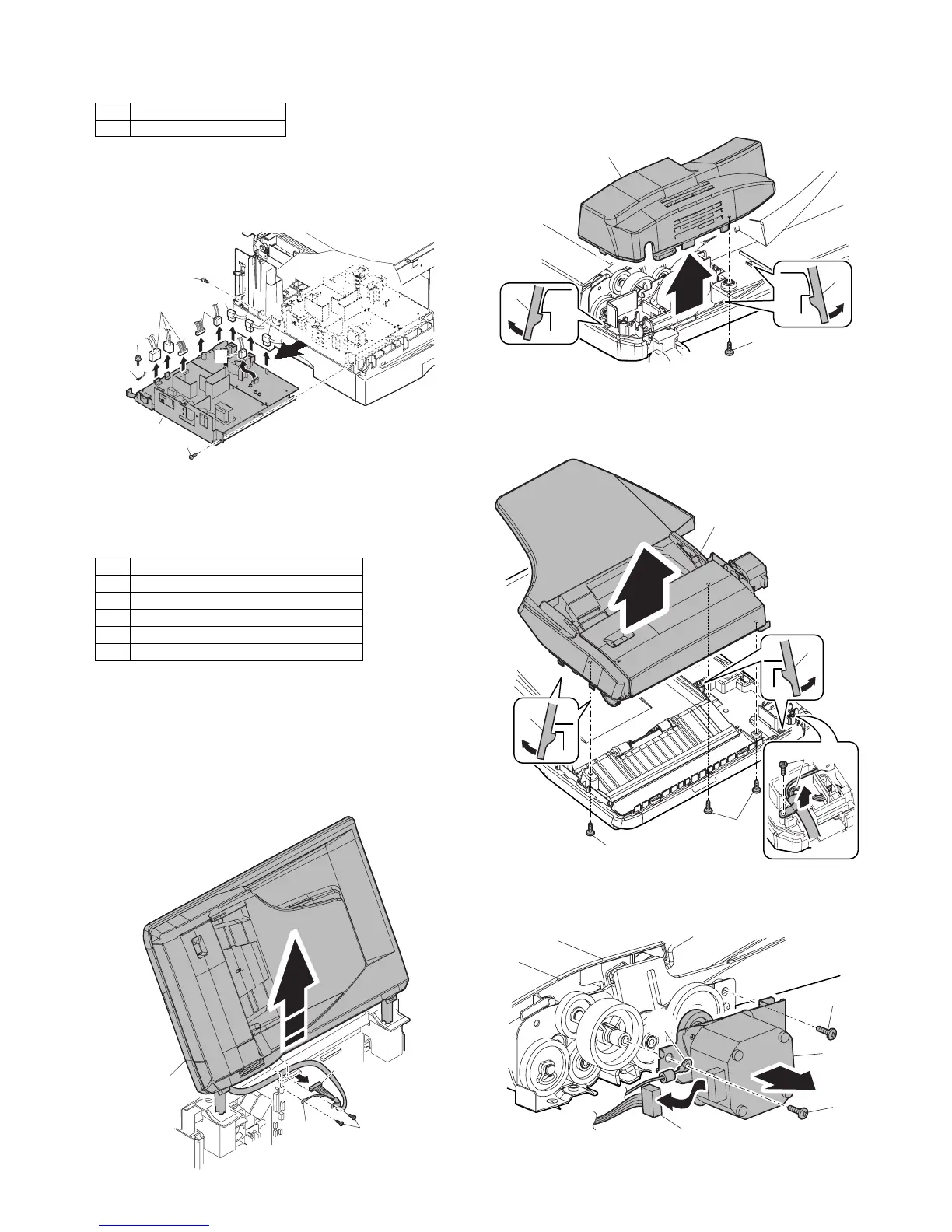

8 Power section
A. List
B. Disassembly procedure
1) Disconnect each connector.
2) Remove the screw, and remove the earth line.
3) Remove two screws, and remove the power PWB unit.
C. Assembly procedure
For assembly, reverse the disassembly procedure.
9. SPF section
(1) Rear cabinet disassembly
1) Remove four screws.
2) Remove the rear cabinet.
(2) Remove the SPF.
1) Remove two screws, and remove the earth wire.
2) Disconnect the connector.
3) Remove the SPF unit.
A. SPF motor
1) Remove the screw.
2) Disengage the pawl (3 positions).
3) Remove the rear cabinet.
1) Remove the screw, and remove the harness.
2) Remove three screws.
3) Disengage the pawl (4 positions).
4) Remove the transport unit.
1) Remove two screws, and remove the earth wire.
2) Remove the SPF motor unit.
3) Disconnect the connector.
No. Part name Ref.
1Power PWB
No. Part name Ref.
A SPF motor
B Pick-up roller, paper feed roller
C Paper exit roller
D Set sensor, scan front sensor
E Transport roller
1)
1)
1)
1)
2)
3)
4)
4)
5)
1)
1)
2)
3)
1)
3)
2)
2)
1)
2)
2)
3)
3)
1)
4)
1)
2)
1)
1)
3)

Sharp AL-2030 Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	16 ppm
Copy speed (black, normal quality, A4)	20 cpm
Multi-Purpose tray	Yes
Total input capacity	250 sheets
Auto document feeder (ADF) input capacity	50 sheets
Power requirements	120 VAC +/- 10 %; 60 Hz +/- 2 %
All-in-one functions	Copy, Scan
Compatible operating systems	Windows 98, Me, 2000, XP, Vista
Market positioning	Business
