Sharp AL-2030 Service Manual

AL-2040CS DISASSEMBLY AND ASSEMBLY 8 - 7

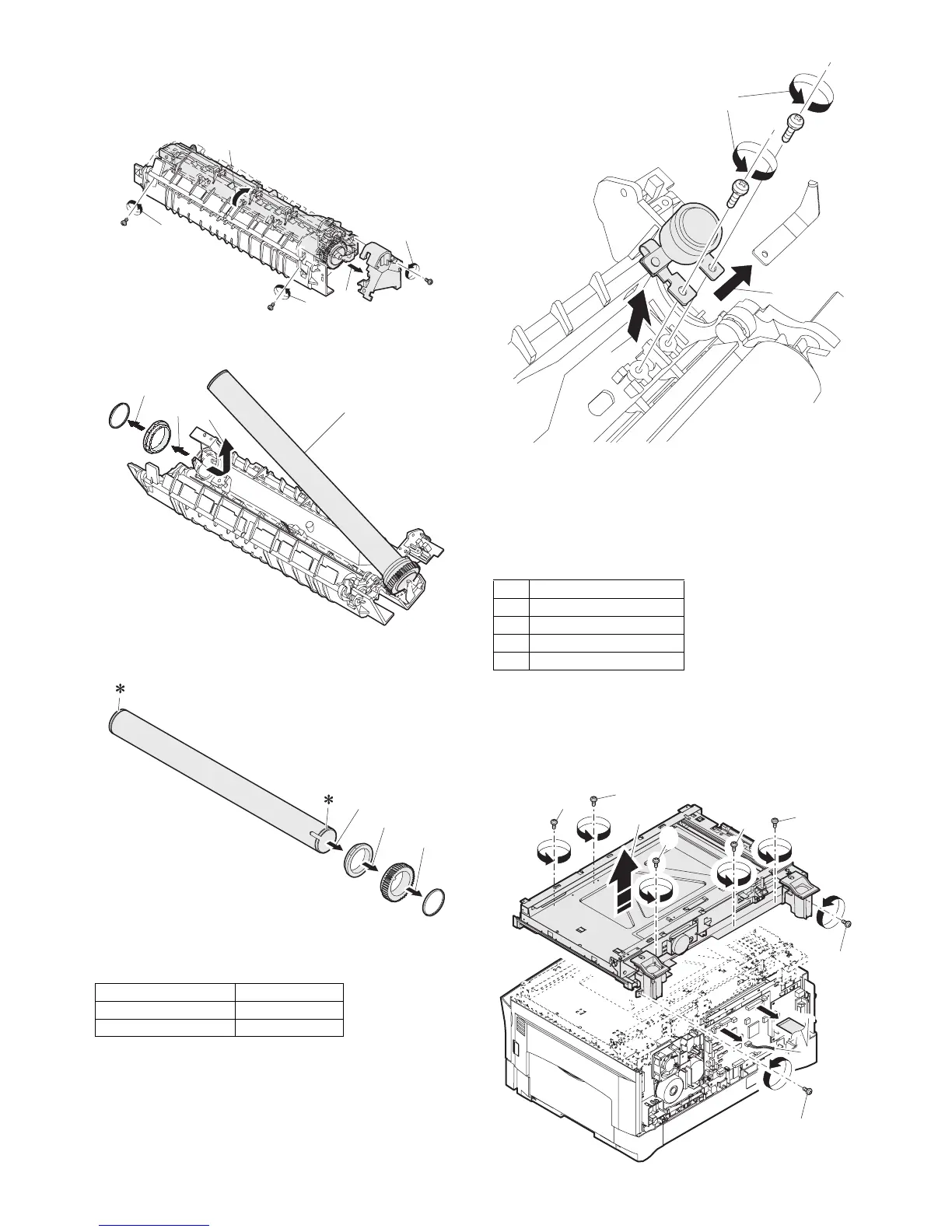

Heat roller disassembly
(Continued from procedure (4).)
5) Remove screws, remove the fusing cover, and open the heat
roller section.
6) Remove the C-ring and the fusing bearing, and remove the
heat roller.
7) Remove the parts from the heat roller.
Note: Apply grease to the sections specified with ∗.
8) Remove two screws and remove the thermo unit.
Note: The set temperature of the thermostat differs from that of the
current model.
C. Assembly procedure
For assembly, reverse the disassembly procedure.
5. Tray paper feed/transport section
A. List
B. Disassembly procedure
1) Remove two screws, and remove the hinge guide R.
2) Disconnect the connector. (2 positions)
3) Remove five screws, and remove the scanner unit.
4) Remove the fan duct.
Temperature
Current model 210°C
AL-2030/2040CS 230°C
1)
2)
2)
3)
3)
1)
2)
3)
Heat roller
1)
2
3)
No. Part name Ref.
1 PPD1 sensor PWB
2 LSU unit
3 Intermediate frame unit
4 Paper feed roller
1)
2)
3)
2)
2)
1)
2)
2)
2)
2)
2)
3)

Sharp AL-2030 Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	16 ppm
Copy speed (black, normal quality, A4)	20 cpm
Multi-Purpose tray	Yes
Total input capacity	250 sheets
Auto document feeder (ADF) input capacity	50 sheets
Power requirements	120 VAC +/- 10 %; 60 Hz +/- 2 %
All-in-one functions	Copy, Scan
Compatible operating systems	Windows 98, Me, 2000, XP, Vista
Market positioning	Business
