AL-2040CS DISASSEMBLY AND ASSEMBLY 8 - 6

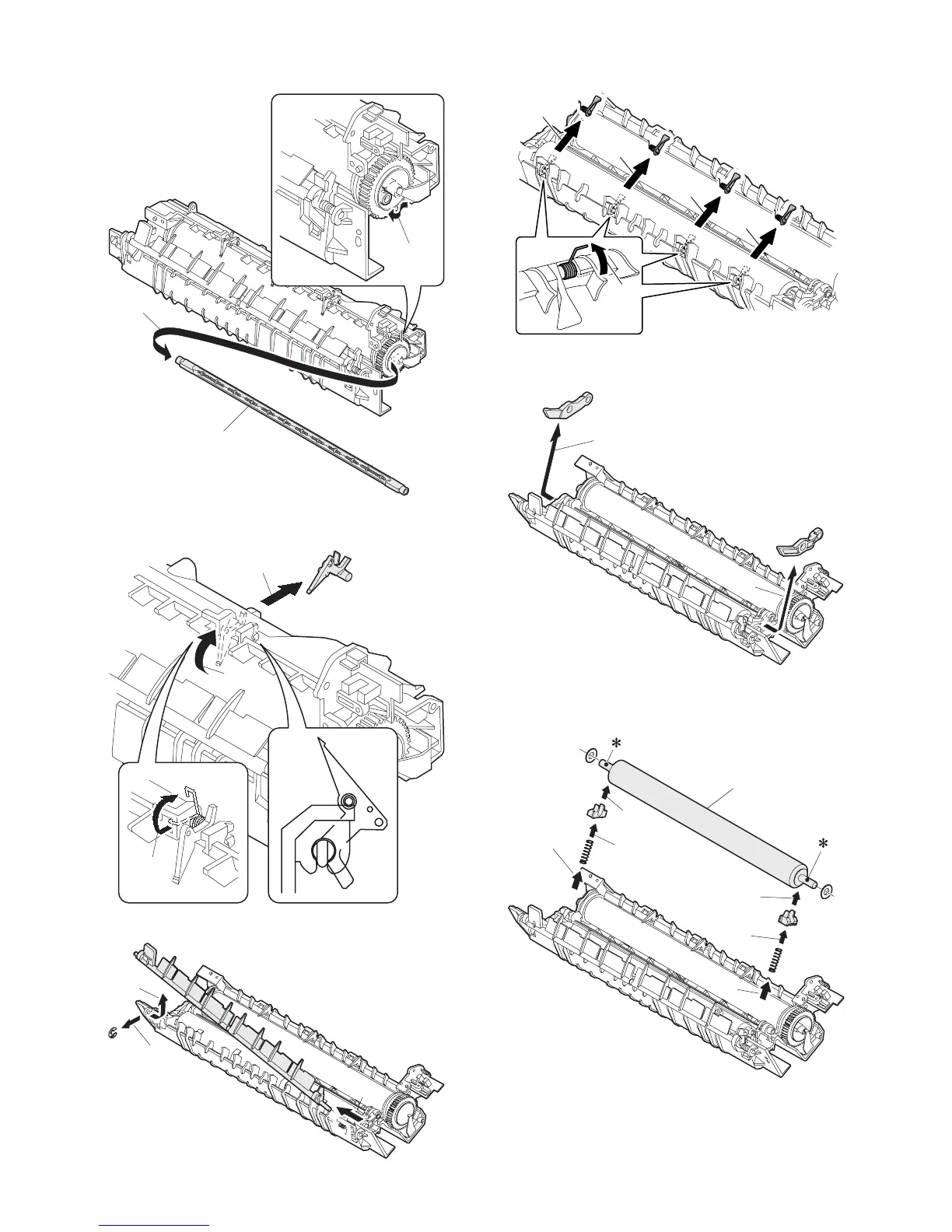

7) Remove the plate spring on the right and remove the heater
lamp.
8) Remove the spring, and remove the upper separation pawls (3
pcs.).
9) Remove the E-ring and remove the reverse gate.
10) Remove the spring, and remove the lower separation pawls (4
pcs.).
11) Remove the pressure release levers on the right and the left
sides.
12) Remove the pressure roller, the pressure bearing, and the
spring.
Note: Apply grease to the sections specified with an asterisk (*).
1)
2)
Heater lamp
3)
1)
2)
2)
1)
3)
2)
2)
2)
1)
2)
1)
1)
1)
2)
2)
1)
3)
3)
Pressure roller
