Sharp AL-2030 Service Manual

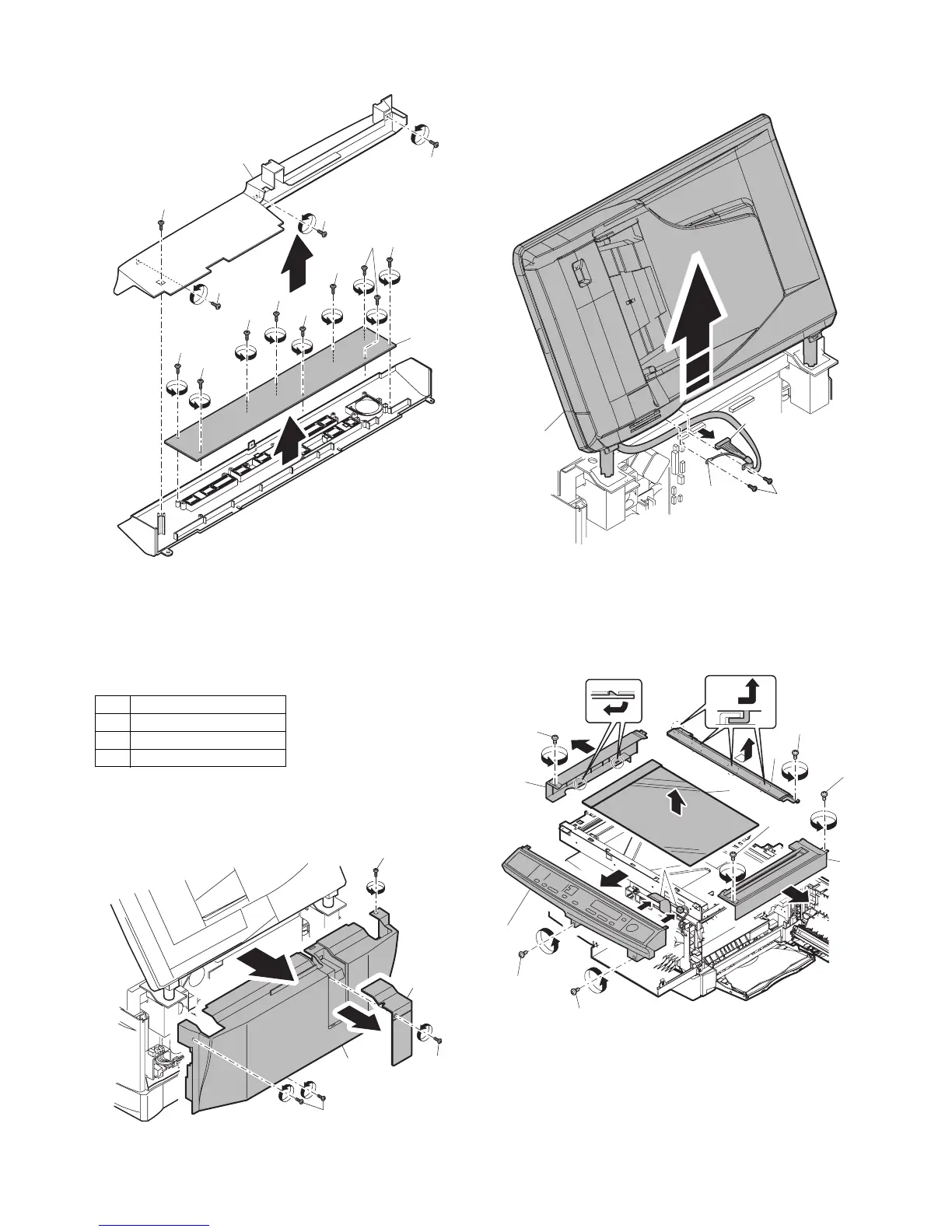

AL-2040CS DISASSEMBLY AND ASSEMBLY 8 - 3
3) Remove four screws, and remove the operation cabinet.
4) Remove four screws, and remove the operation PWB.
C. Assembly procedure
For assembly, reverse the disassembly procedure
3. Optical section
A. List
B. Disassembly procedure
1) Remove four screws, and remove the rear cabinet and the rear
cabinet cover.
2) Remove two screws, and remove the earth wire.
3) Disconnect the connector.
4) Remove the SPF unit.
5) Remove five screws. Remove the operation unit, and discon-
nect the connector.
6) Remove the right cabinet.
7) Remove the left cabinet.
8) Remove the screw, and remove the rear cover.
9) Remove the table glass.
NO. Part name Ref.
1 Copy lamp unit
2Copy lamp
3 Lens unit
1)
1)
1)
1)
2)
3)
3)
3)
3)
3)
3)
3)
3)
4)
1)
1)
2)
2)
1)
1)
2)
3)
1)
2)
4)
5)
6)
7)
8)
1)
1)
1)
3)
1)
1)

Sharp AL-2030 Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	16 ppm
Copy speed (black, normal quality, A4)	20 cpm
Multi-Purpose tray	Yes
Total input capacity	250 sheets
Auto document feeder (ADF) input capacity	50 sheets
Power requirements	120 VAC +/- 10 %; 60 Hz +/- 2 %
All-in-one functions	Copy, Scan
Compatible operating systems	Windows 98, Me, 2000, XP, Vista
Market positioning	Business
