AL-2040CS DISASSEMBLY AND ASSEMBLY 8 - 19

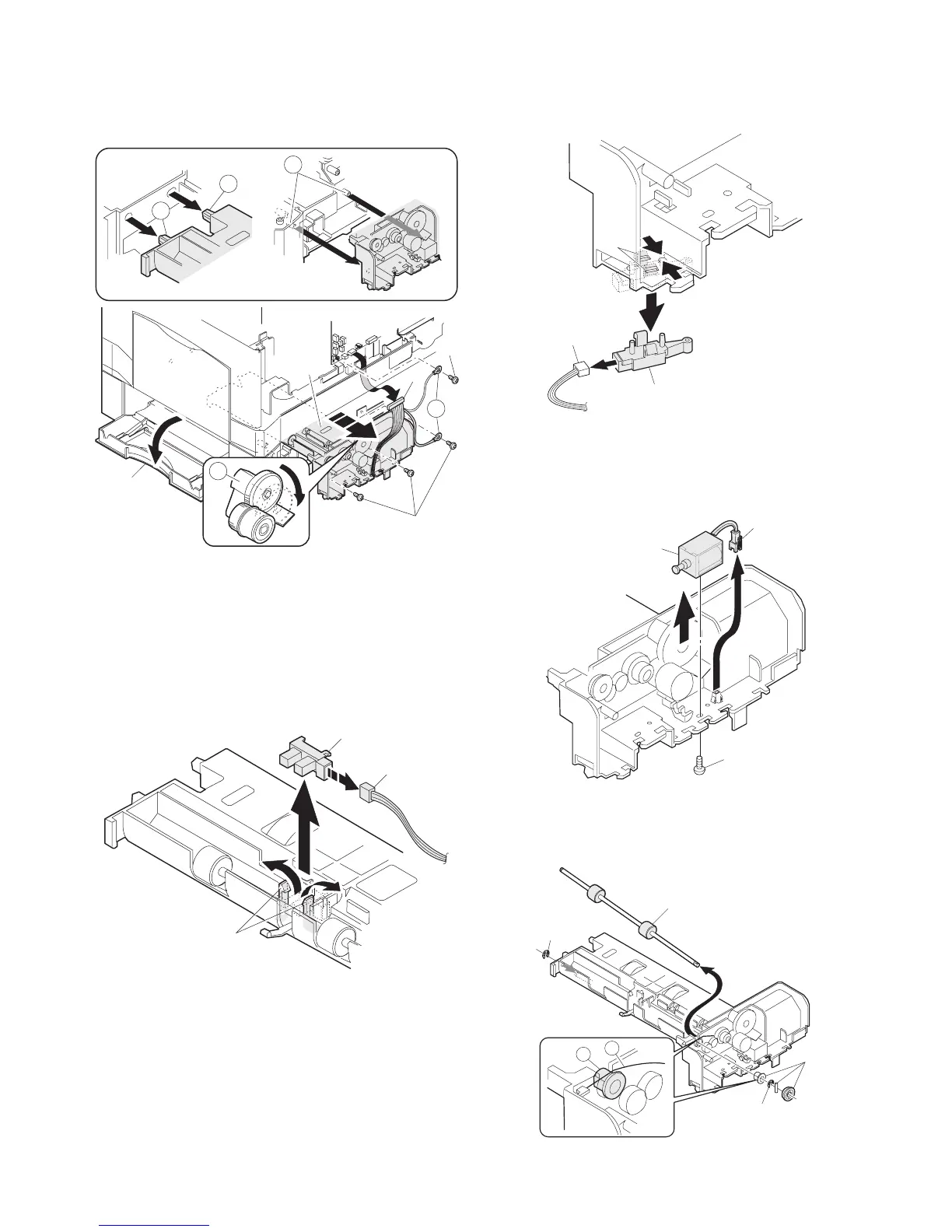

1) Open the right cabinet.
2) Remove three screws.
3) Remove one connector from MCU.
4) While tilting down the 2nd connection arm A, pull and remove
the paper feed unit toward you.
∗ When installing, securely insert two bosses C on the machine
side and two bosses D on the paper feed unit side. Be sure to
secure the ground wire B.
∗ Insert the 2nd page feed.
A. Paper sensor
1) Remove the pawl.
2) Remove the paper sensor.
3) Remove the harness.
B. Cassette detection switch
1) Remove the pawl.
2) Remove the cassette detection switch.
3) Remove the harness.
C. Paper feed solenoid
1) Remove the screw.
2) Remove the connector.
3) Remove the paper feed solenoid.
D. Transport roller
1) Remove two E-rings.
2) Remove the transport roller.
∗ Install so that the earth spring A is brought into contact over
bearing B.
1
2
4
B
A
3
2
D
D
C
2
3
1
1
2
3
1
2
3
4
2
1
3
A
B

Sharp AL-2030 Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	16 ppm
Copy speed (black, normal quality, A4)	20 cpm
Multi-Purpose tray	Yes
Total input capacity	250 sheets
Auto document feeder (ADF) input capacity	50 sheets
Power requirements	120 VAC +/- 10 %; 60 Hz +/- 2 %
All-in-one functions	Copy, Scan
Compatible operating systems	Windows 98, Me, 2000, XP, Vista
Market positioning	Business
