Sharp AL-2030 Service Manual

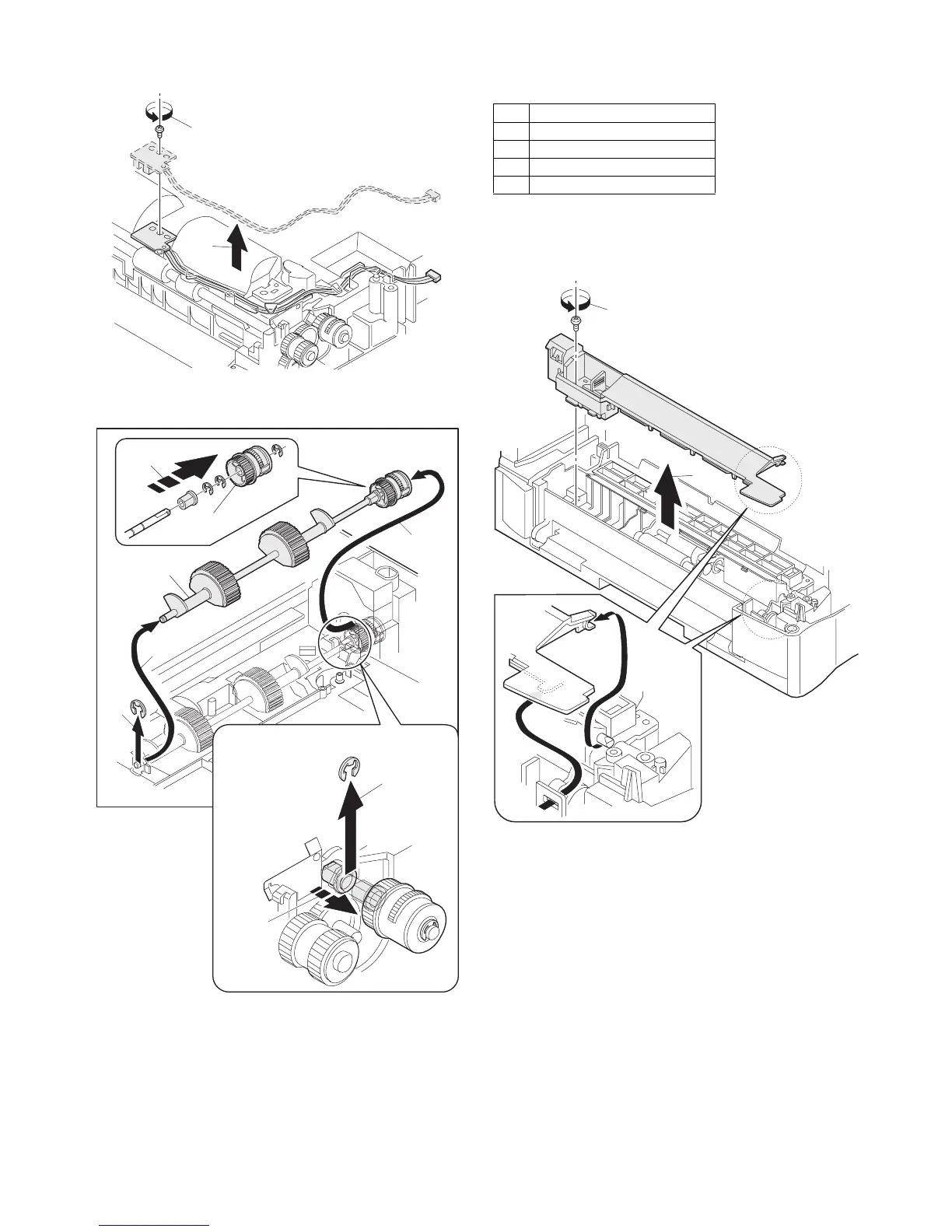

AL-2040CS DISASSEMBLY AND ASSEMBLY 8 - 12
24) Remove the screw and the connector, and remove the PPD1
sensor PWB.
25) Remove two E-rings and remove the paper feed roller.
26) Remove three E-rings and remove the clutch unit.
C. Assembly procedure
For assembly, reverse the disassembly procedure.
6. Manual paper feed section
A. List
B. Disassembly procedure
Multi unit
1) Remove the screw and remove the multi upper cover.
1)
2)
4)
5)
1)
2)
3)
4)
Back
Front
Clutch unit
Paper feed
roller
No. Part name Ref.
1 Manual transport roller
2 Cassette detection switch
3 PPD1 sensor PWB
4 Side door detection unit
2)
1)

Sharp AL-2030 Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	16 ppm
Copy speed (black, normal quality, A4)	20 cpm
Multi-Purpose tray	Yes
Total input capacity	250 sheets
Auto document feeder (ADF) input capacity	50 sheets
Power requirements	120 VAC +/- 10 %; 60 Hz +/- 2 %
All-in-one functions	Copy, Scan
Compatible operating systems	Windows 98, Me, 2000, XP, Vista
Market positioning	Business
